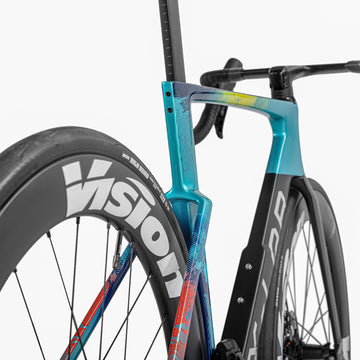

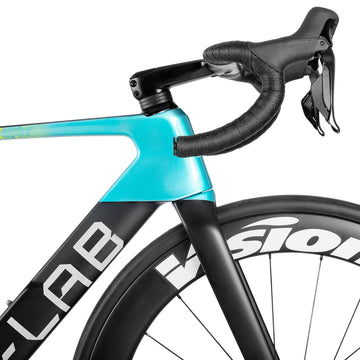

XLAB AD9 Aero Road Bike - Astana
XLAB AD9 Aero Road Bike - Astana
XLAB AD9 Aero Road Bike - Astana
XLAB AD9 Aero Road Bike - Astana
XLAB AD9 Aero Road Bike - Astana
XLAB AD9 Aero Road Bike - Astana
XLAB AD9 Aero Road Bike - Astana
XLAB AD9 Aero Road Bike - Astana
XLAB AD9 Aero Road Bike - Astana
XLAB AD9 Aero Road Bike - Astana
3% off Sold out

XLAB AD9 Aero Road Bike - Astana

#XLRD-AD9SAS-XS
$12,999.00
Regular price $13,499.00 Sale price $12,999.00
Choose an option
Checking stock source...
JS ASK JONNY'S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY XLAB'S WARRANTY
Ride with confidence knowing this product is backed by XLAB's manufacturer warranty. If there's a defect in materials or workmanship, we'll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you're not on your own if something genuine goes wrong. See warranty details →

All The Deets

Description

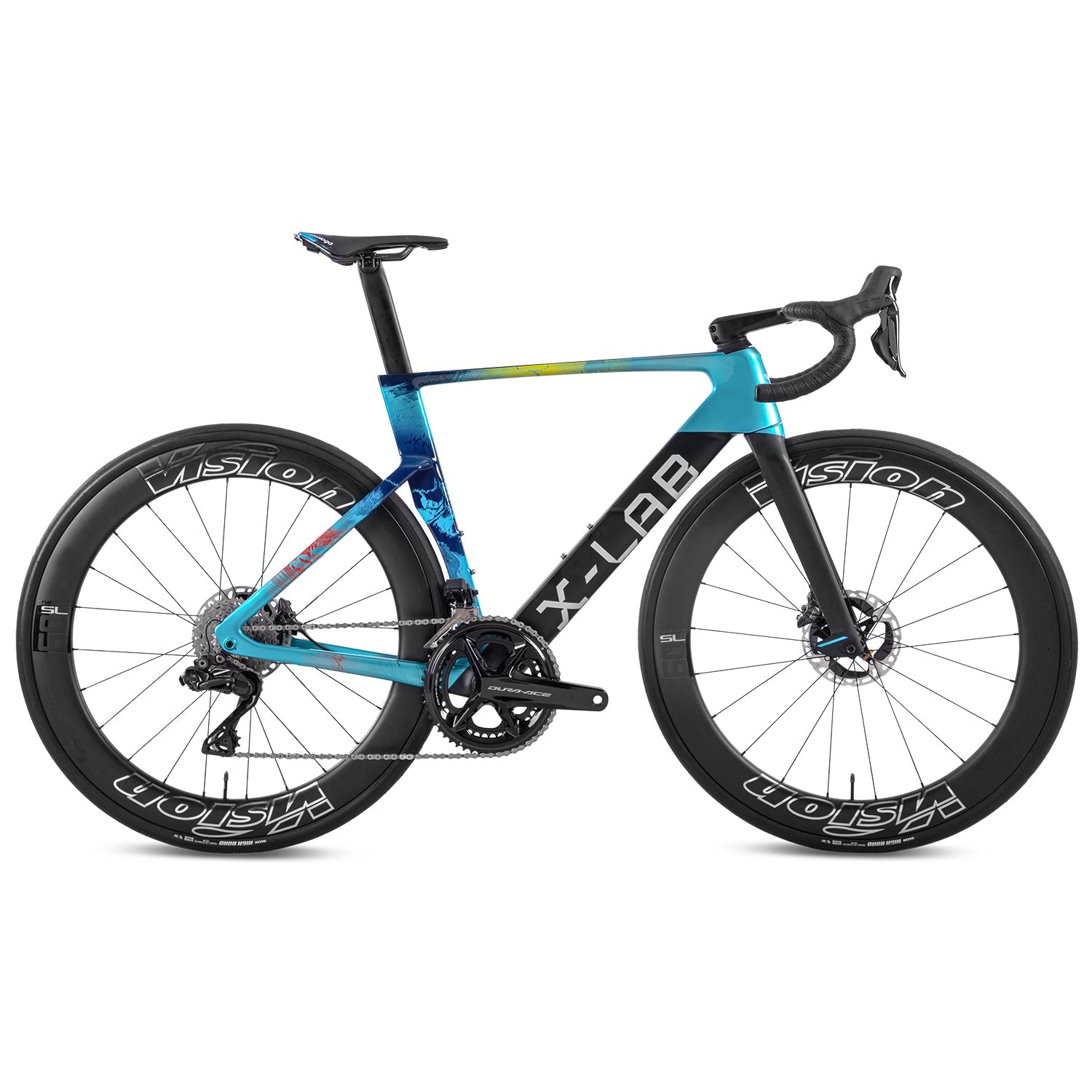

The X-Lab AD9 is a high-performance aero road bike designed for elite racing, featuring a lightweight carbon frame, advanced aerodynamic shaping, and top-tier components like Shimano Dura-Ace Di2 and Vision Metron wheels. Built for speed and efficiency, it’s the official bike of the XDS-Astana WorldTour team and offers WorldTour-level performance at a competitive price.

Key Specifications
  • Frame: X-LAB AD9 Carbon, Toray T1100 x M40X
  • Fork: Carbon Fibre, 12x100mm Thru-Axle
  • Drivetrain: Shimano Dura-Ace Di2 Electronic, 2x12-Speed
  • Rear Derailleur: Shimano Dura-Ace Di2 R9270 Series
  • Crankset: Shimano Dura-Ace FC-R9200, 52/36T

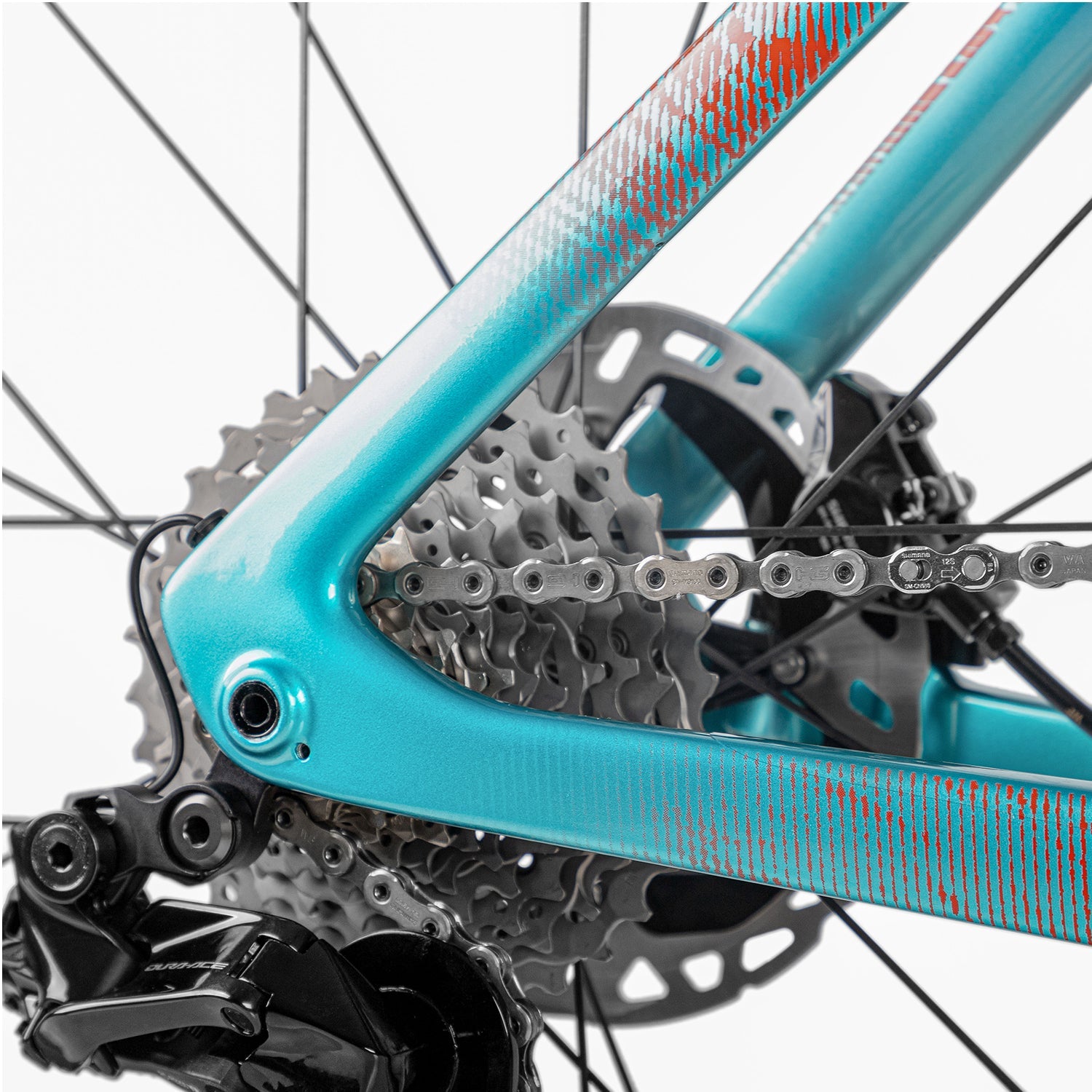

  • Cassette: Shimano Dura-Ace CS-R9200, 11-34T
  • Brakes: Shimano Dura-Ace R9270 Series Hydraulic Disc
  • Wheelset: Vision Metron 60 SL Carbon
  • Tyres: Maxxis HYPR ZK, 700x28C
  • Handlebar & Stem: X-LAB Integrated Carbon Cockpit
  • Seatpost: Carbon Straight, 300mm
  • Saddle: Selle Italia SLR Boost, Carbon Rails
  • Bottom Bracket: T47 86-24



Spec
Frame & Fork
  • Frame: X-LAB AD9 Carbon
  • Frame Material: Toray T1100 x M40X Carbon Fibre
  • Fork: Carbon Fibre Disc Fork
  • Front Axle: 12x100mm Flush Thru-Axle
  • Brake Mount: Disc Brake Compatible
  • Bottom Bracket Standard: T47 86-24
Drivetrain
  • Drivetrain: Shimano Dura-Ace Di2, 2x12-Speed Electronic
  • Front Derailleur: Shimano Dura-Ace Di2 R9270 Series
  • Rear Derailleur: Shimano Dura-Ace Di2 R9270 Series
  • Shifters: Shimano Dura-Ace Di2 R9270 Series

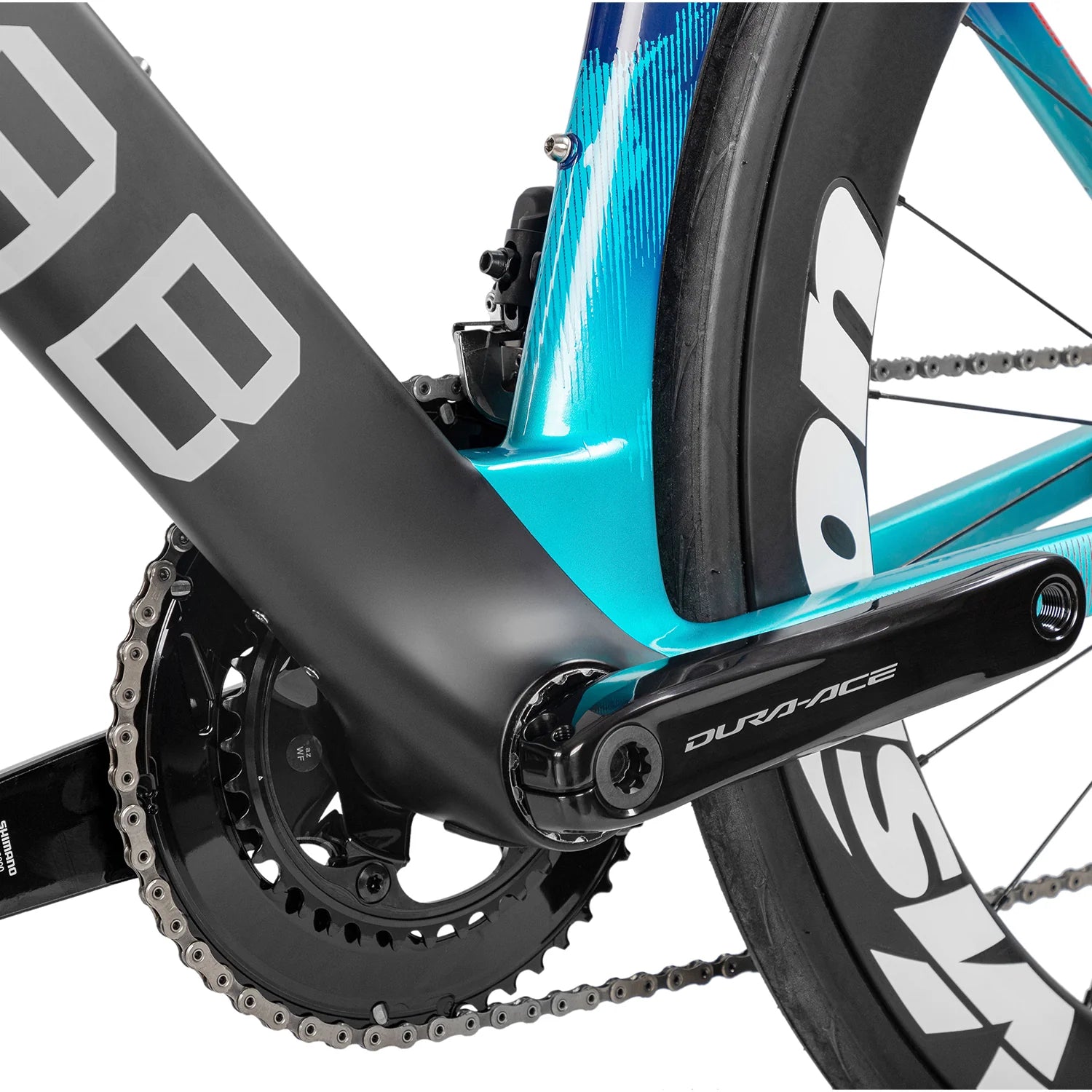

  • Crankset: Shimano Dura-Ace FC-R9200, 52/36T
  • Crank Length: 170mm
  • Cassette: Shimano Dura-Ace CS-R9200, 11-34T, 12-Speed
  • Chain: Shimano CN-M9100, 12-Speed
  • Bottom Bracket: T47 86-24

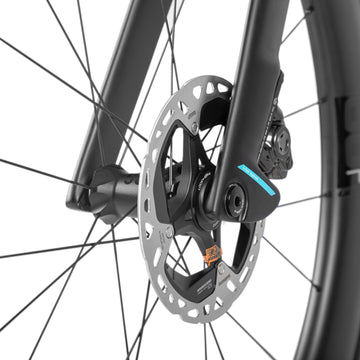

Brakes

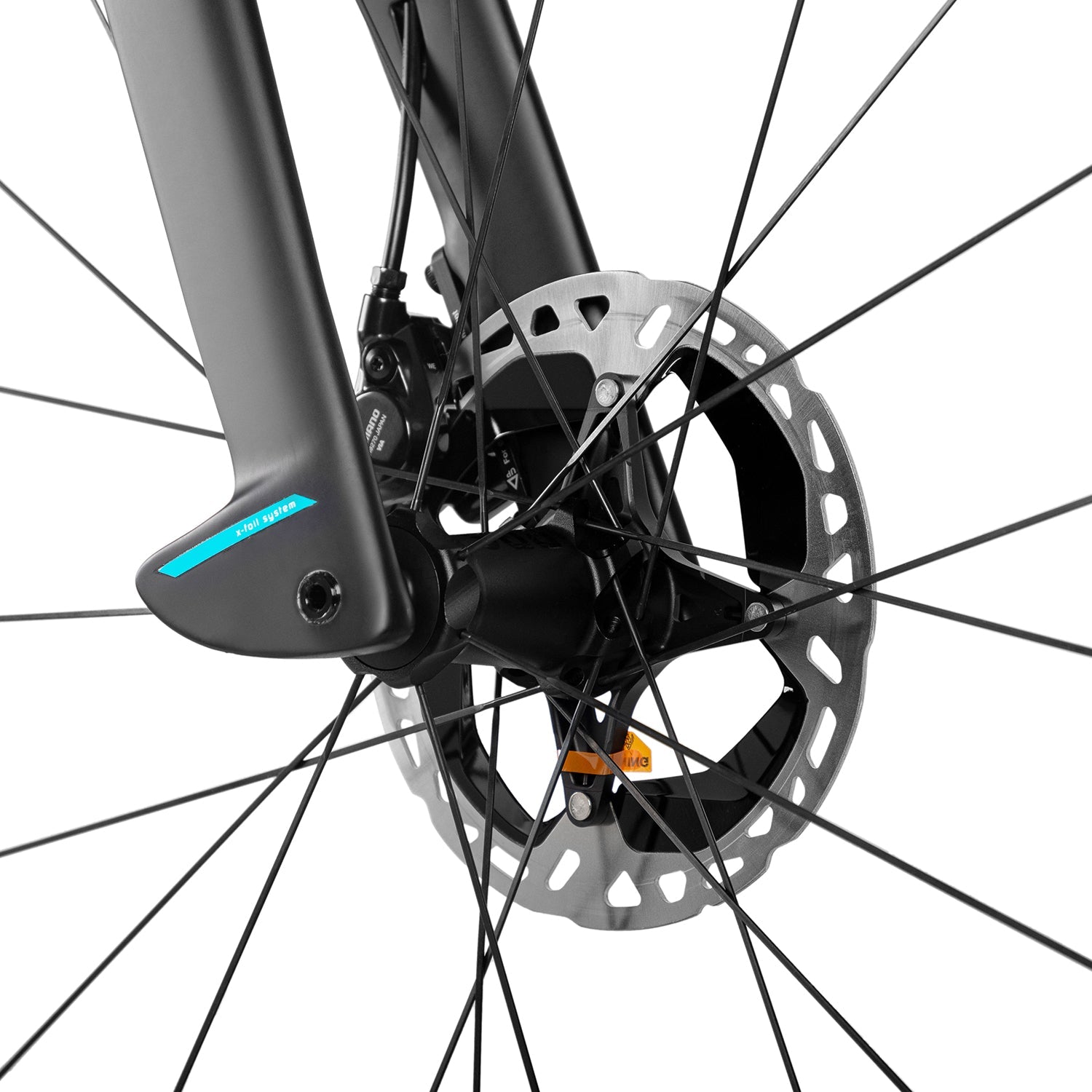

  • Front Brake: Shimano Dura-Ace R9270 Series Hydraulic Disc
  • Rear Brake: Shimano Dura-Ace R9270 Series Hydraulic Disc
  • Brake/Shift Levers: Shimano Dura-Ace Di2 R9270 Series
  • Rotor Mount: Center Lock
Cockpit

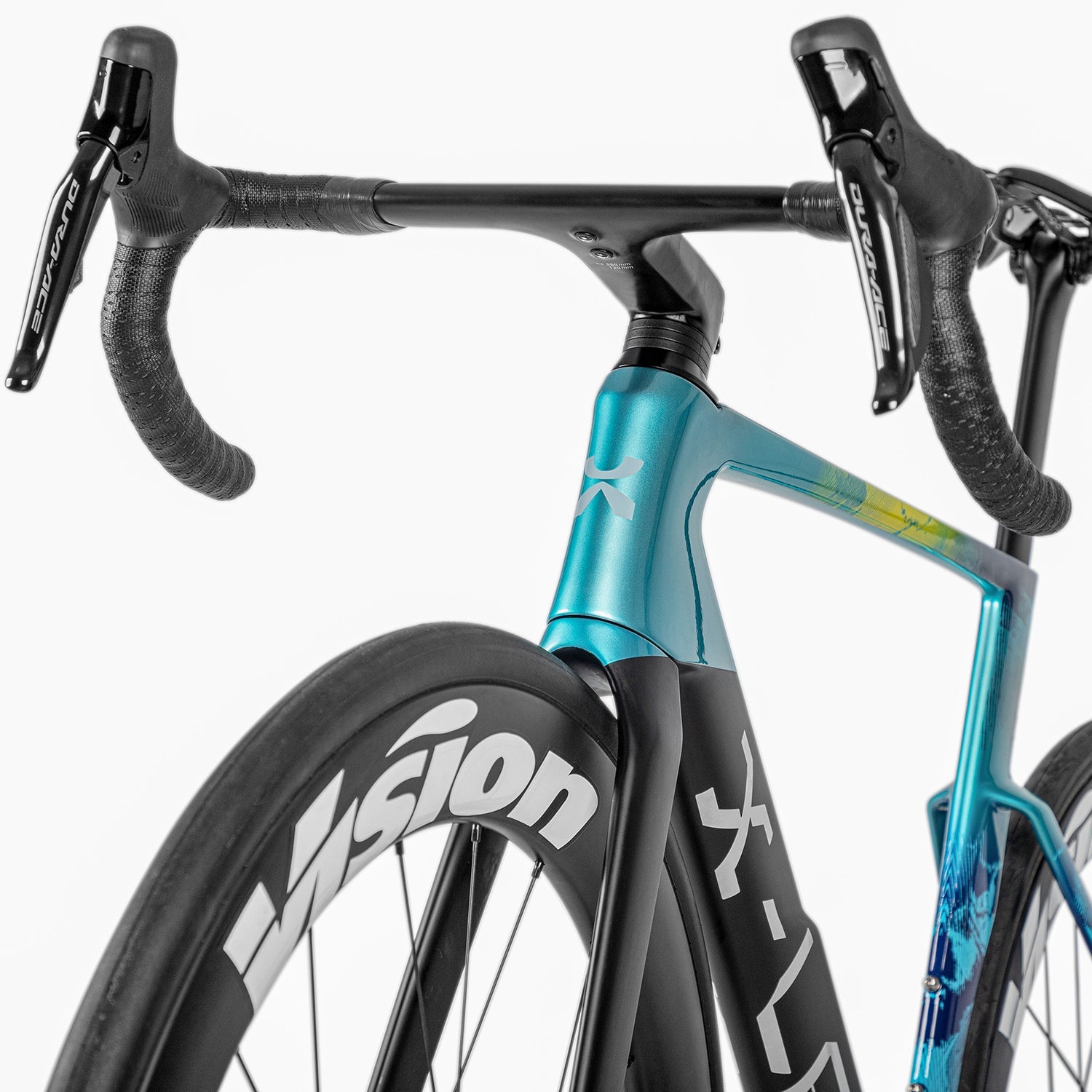

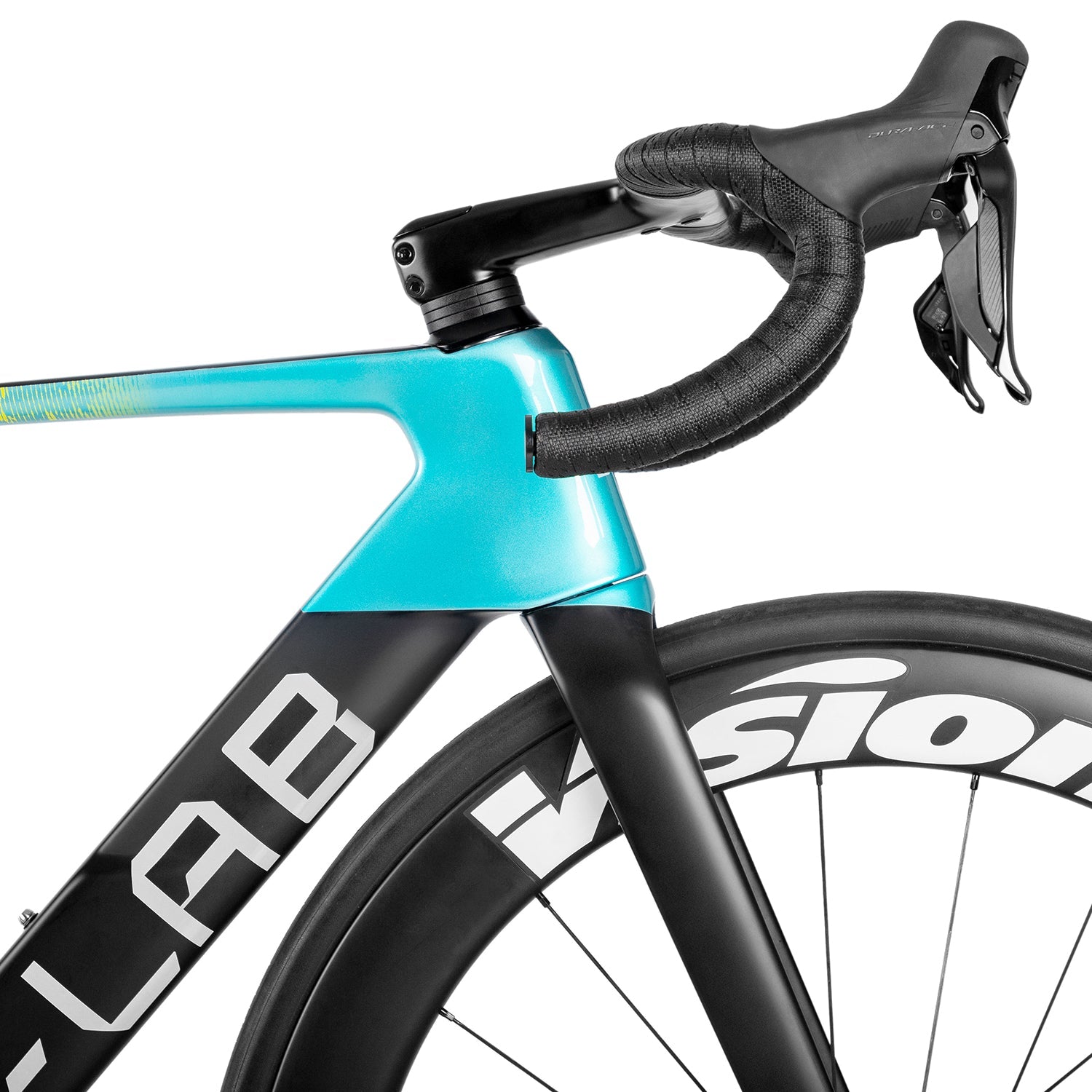

  • Handlebar: X-LAB Carbon Fibre Integrated
  • Stem: X-LAB Carbon Fibre Integrated

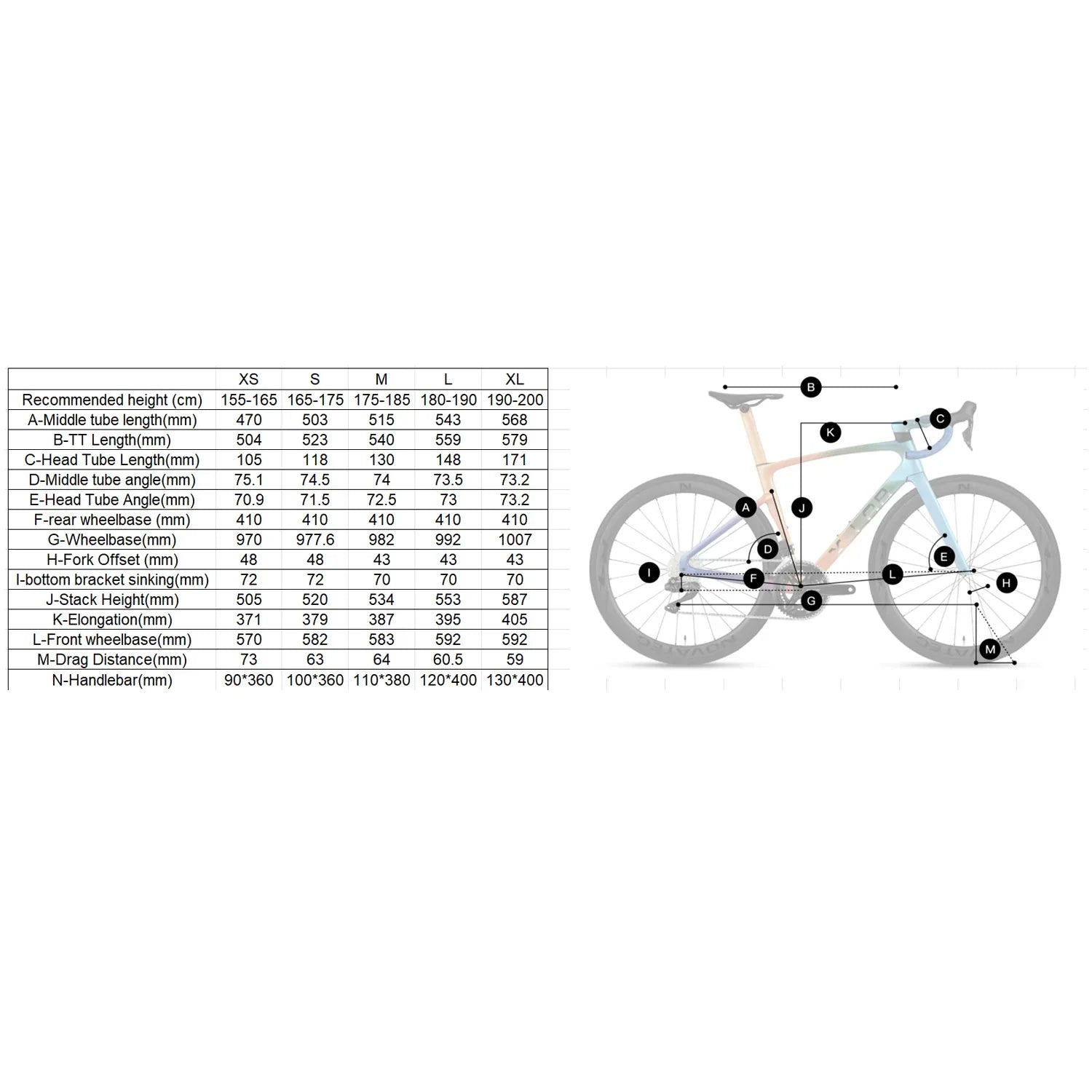

  • Size XS: 360mm Handlebar / 90mm Stem
  • Size S: 360mm Handlebar / 100mm Stem
  • Size M: 380mm Handlebar / 110mm Stem
  • Size L: 400mm Handlebar / 120mm Stem
  • Size XL: 400mm Handlebar / 130mm Stem
Seating
  • Saddle: Selle Italia SLR Boost
  • Saddle Rails: Carbon
  • Saddle Dimensions: 145x248mm
  • Seatpost: Carbon Fibre Straight Seatpost
  • Seatpost Length: 300mm
Wheels & Tyres
  • Wheel Size: 700C

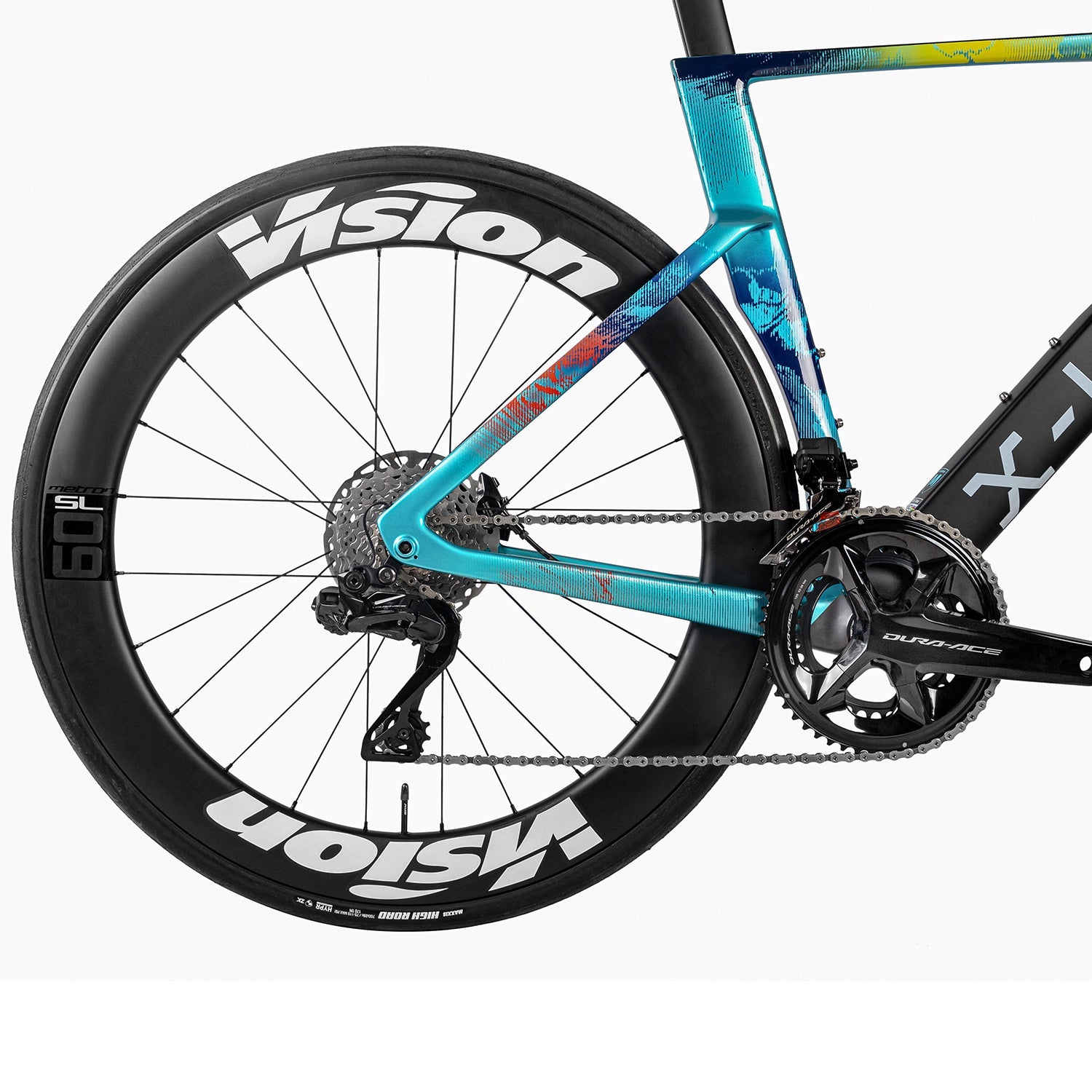

  • Front Wheel: Vision Metron 60 SL Carbon
  • Rear Wheel: Vision Metron 60 SL Carbon
  • Rim Depth: 60mm
  • Internal Rim Width: 21mm
  • External Rim Width: 31.1mm
  • Rotor Mount: Center Lock
  • Front Tyre: Maxxis HYPR ZK, 700x28C
  • Rear Tyre: Maxxis HYPR ZK, 700x28C
  • Tyre Construction: Folding Clincher
  • Puncture Protection: ZK Puncture-Resistant Technology
