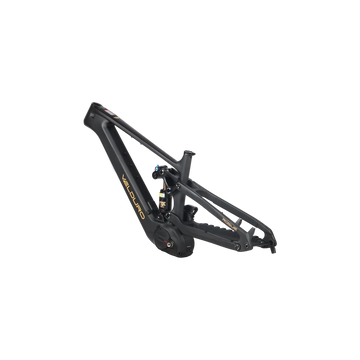

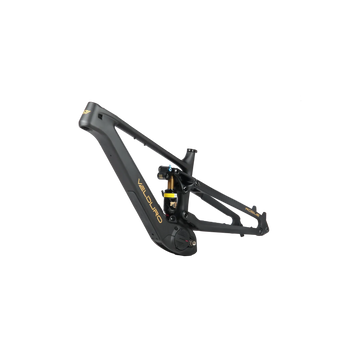

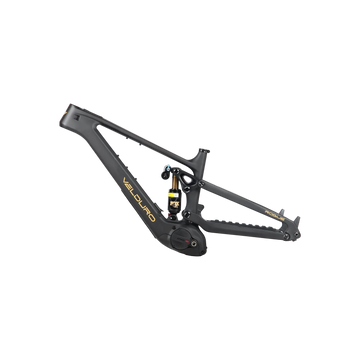

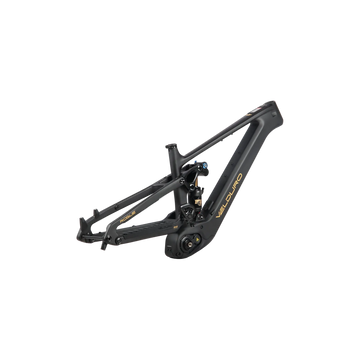

Velduro Rogue M2s Frame Only - No Shock -
Velduro Rogue M2s Frame Only - No Shock -
Velduro Rogue M2s Frame Only - No Shock -
Velduro Rogue M2s Frame Only - No Shock -
Velduro Rogue M2s Frame Only - No Shock -
Velduro Rogue M2s Frame Only - No Shock -

Velduro Rogue M2s Frame Only - No Shock -

#NSROGUEM
$7,739.00
Regular price $7,739.00
Choose an option
Checking stock source...
JS ASK JONNY’S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY VELDURO’S WARRANTY
Ride with confidence knowing this product is backed by Velduro’s manufacturer warranty. If there’s a defect in materials or workmanship, we’ll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you’re not on your own if something genuine goes wrong. See warranty details

All The Deets

Description

Build your dream EMTB with Velduro. Using flip chips the Rogue's modular frame can adapt to your needs and riding style. Swap the travel, tweak geometry or switch wheel sizes and customise your ride to create your Dream Machine. In Standard Mode (170mm fork / 165mm rear with MX wheels), it's a trail-taming beast. Switch to All-Mountain Mode (160mm front/rear with MX wheels) for flowy precision, or unleash enduro Mode (180mm front / 172mm rear with 29inch rear wheel) to dominate descents. The Rogue is powered by the DJI Avinox drive system and 800wh battery.



Spec

Frame
• Frame: Carbon Fiber Enduro Frame
• Suspension Design: Mid-Pivot
• Rear Travel: 165mm up to 172mm with 29" Rear Wheel
• Rear Wheel Compatibility: 29" or 27.5" Rear
• Flip Chips: Rear Wheel Flip Chip and Shock Clip Chip
• Rear Axle: Boost 12x148mm Thru-Axle
• Headset: FSA No.57 Alloy MTB, ZS44/56 External Wired Headset
• Seat Clamp Diameter: 35mm
• Included Hardware: UDH Hanger, Seatpost Clamp, Cable Lugs

E-Bike System
• Motor: Avinox M2S, 250W, 130Nm Torque, Boost Mode up to 150Nm, 1300W Peak Power
• Battery: Avinox 800Wh Integrated
• Display: Avinox DP100 Integrated 2" Display
• Controls: Avinox BC100 Wireless Left & Right Controllers
• Charger: Avinox 4A Charger
• Wiring: Avinox Custom Waterproof Wiring System

Drivetrain Compatibility
• Cranks: Avinox SL, 155mm
• Chainring Spider: Avinox 104BCD Spider
• Chainring: Velduro 34T
• Maximum Chainring Size: 34T
• Crank Compatibility: Up to 165mm Length, Minimum 25mm Offset
• Drivetrain Compatibility: Shimano and SRAM Compatible
• Shifting Compatibility: E-Shift and Mechanical Shift Compatible
• Derailleur Mount: Full Mount Compatible
• Drivetrain Layout: 1x Only
• Mechanical Shift Cable Length: 2000mm

Suspension Compatibility
• Fork Compatibility: 1.5T Single Crown Fork Only
• Recommended Fork Travel: 170mm
• Fork Travel Range: 160-180mm
• Maximum Axle-to-Crown: Under 585mm
• Double Crown Forks: Not Compatible
• Shock Compatibility: Trunnion Mount Only
• Shock Size: 205mm Eye-to-Eye
• Recommended Shock Stroke: 65mm for 165/172mm Travel
• Alternate Shock Stroke: 62.5mm for 160/165mm Travel
• Lower Shock Hardware: M8x30mm

Seatpost Compatibility
• Seatpost Diameter: 31.6mm
• Seatpost Insertion Depth:
 • Small: 260mm
 • Medium: 280mm
 • Large: 300mm
 • XL: 325mm

• Recommended Dropper Travel:
 • Small: 180mm
 • Medium/Large: 210mm
 • XL: 240mm

• Dropper Cable Length: 1200mm

Brake Compatibility
• Rear Brake Mount: 203mm Post Mount Direct
• Front Brake Mount: Depends on Fork
• Front Brake Cable Length: 950mm
• Rear Brake Cable Length: 1700mm

Wheelset Compatibility
• Front Hub: Typically 15x110mm Boost
• Rear Hub: 12x148mm Boost
• Front Rim: 29" / 700C
• Rear Rim Compatibility: 29" / 700C or 27.5" / 650B

Tyre Clearance
• Recommended Front Tyre: 29x2.5"
• Maximum Front Tyre: 29x2.6"
• Recommended Rear Tyre: 29x2.4" or 27.5x2.4"
