Reserve RD1 Road Handlebar - 36cm x

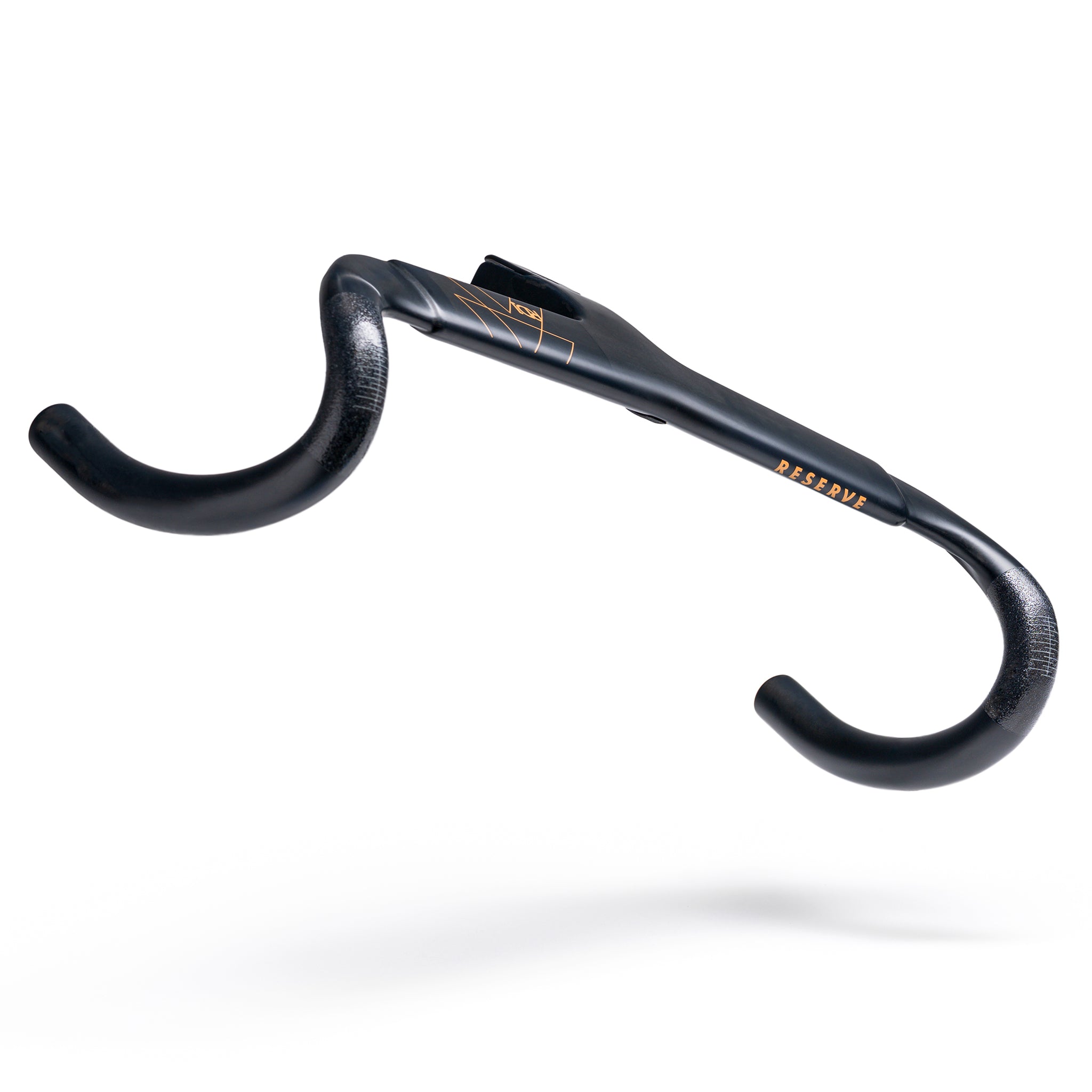

Reserve RD1 One-Piece Handlebar

RD1 is built to deliver world-tour performance with modern geometry and sleek integrated routing. Proven in the wind tunnel, on the road and on the scale, RD1 delivers strength, a streamlined aerodynamic profile and responsive ride characteristics.

A one-piece bar/stem allows us to optimize the carbon layup and treat the entire cockpit as a cohesive unit. We’ve also limited the tapeable space on RD1 to the sections where it's most useful; saving grams and improving aerodynamics. It looks fast standing still.

RD1 uses proven Reserve carbon fiber technology to deliver strength and performance with no weight limits, backed by our Lifetime Warranty.

Compatibility and Sizing.

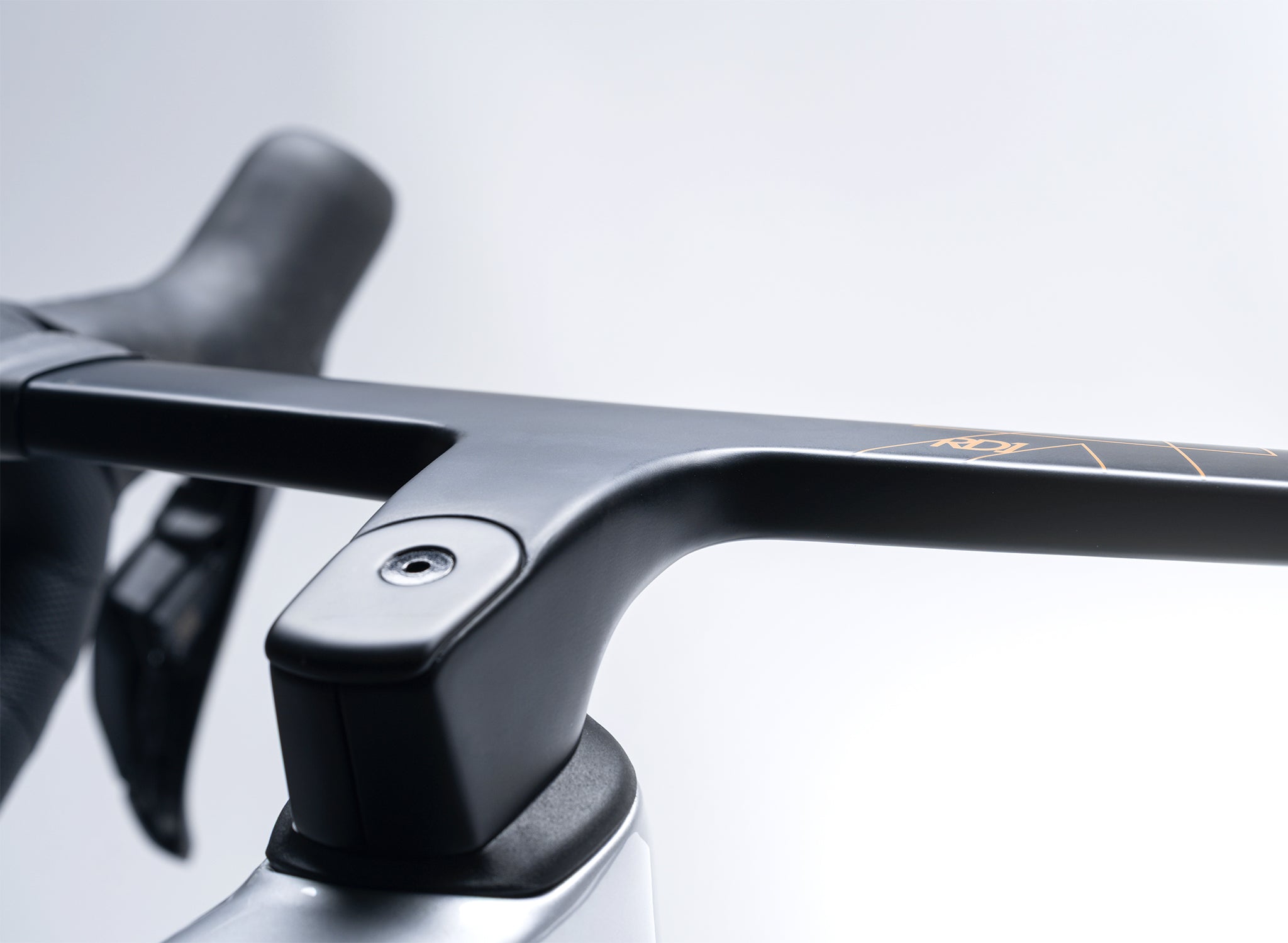

RD1 is designed for standard round 1-1/8″ steerer tubes. It features integrated cable routing with a headset cover that’s optimized around Acros ICR headset systems (52mm upper bearing).

The one-piece handlebar is available in 36, 38 and 40cm widths with stem lengths from 80 to 120mm for a total of 12 configurations.

Specs

• Designed for: World Tour racing, crits, and fast group rides.

• Lifetime warranty w/ no weight limit.

• Weights: 301g - 341g

• Reach: 75mm Center-to-center

• Drop: 125mm Center-to-center

• Flare: 6 Degrees

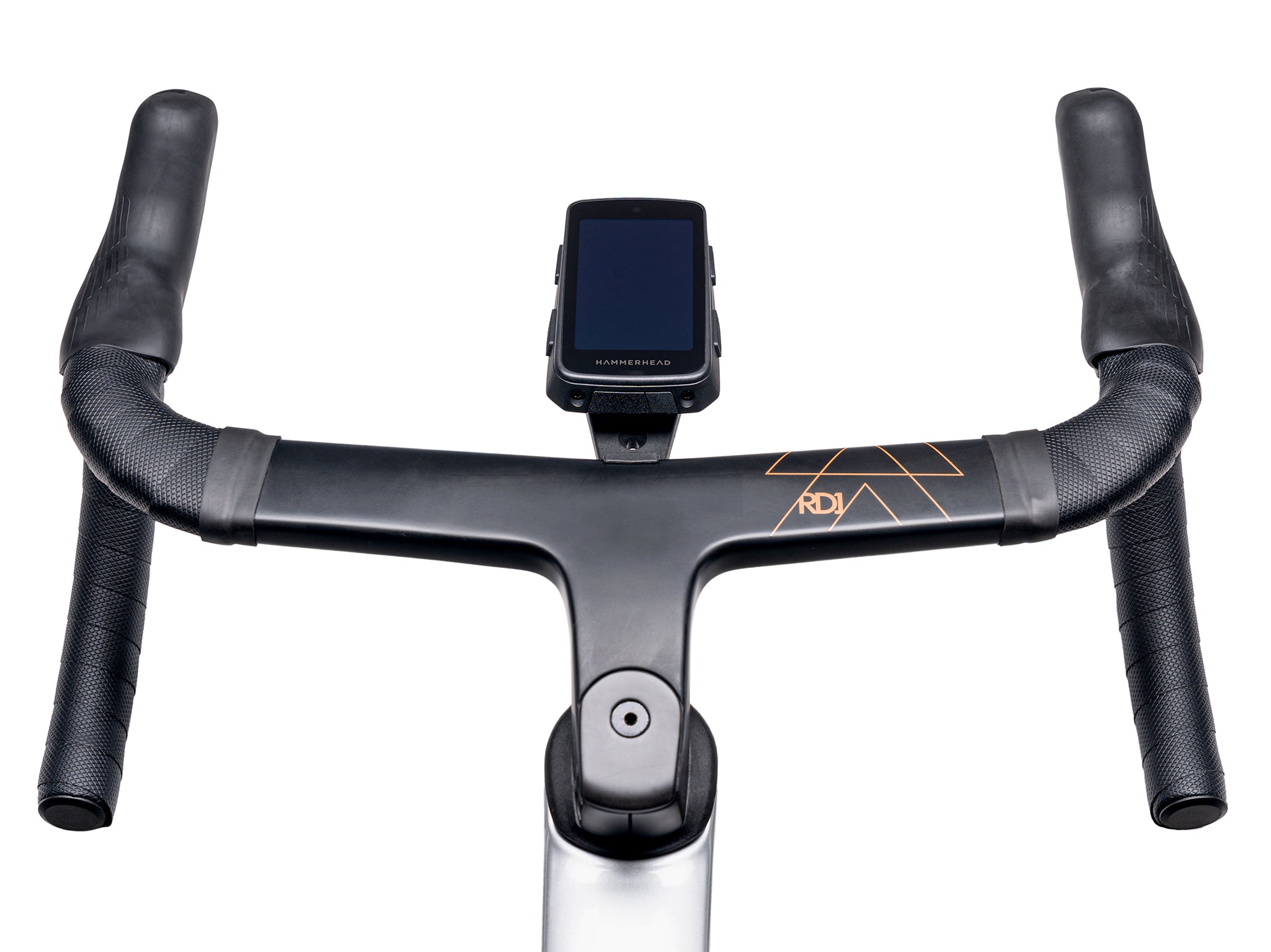

• Includes integrated computer mount, top cap, headset bearing cover and spacer kit

• Bar widths x Stem lengths:
