Redline MX 24 Race BMX - Black

#RLBK006-23-BLK
$1,149.00 $989.00
Availability
Checking stock source...
JS ASK JONNY'S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY REDLINE'S WARRANTY
Ride with confidence knowing this product is backed by Redline's manufacturer warranty. If there's a defect in materials or workmanship, we'll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you're not on your own if something genuine goes wrong. See warranty details →

All The Deets

Description

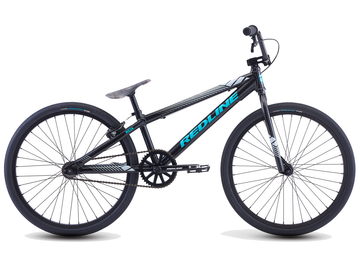

The Redline MX24 is lightweight and easy to manourvre. The MX24 features a high-quality 3-piece crank set, integrated headset, pivotal Race saddle, and 24 inch wheels. The Redline MX24 is top of class for value and quality, and best of all, it’s race-ready out of the box.

Specifications
Frame - 6061 alloy w/integrated headtube

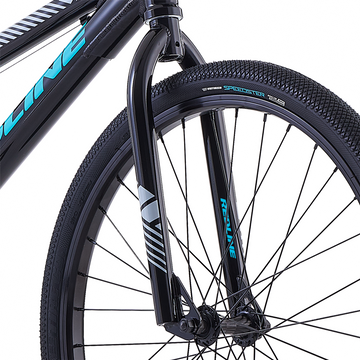

Fork - Redline 'Race' hi-ten w/tapered legs
Headset - Integrated 1 1/8"

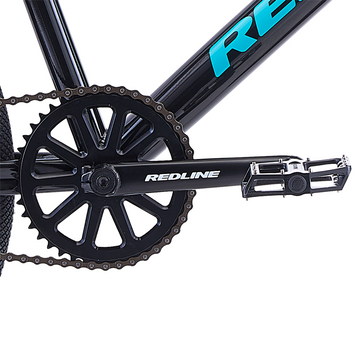

Cranks - Race Cr-Mo 175mm 3pc cranks
Sprocket - 41T, alloy
Bottom Bracket - Euro
Cogset - 18T
Chain - KMC 'Z410'
Front Hub - Redline aluminium

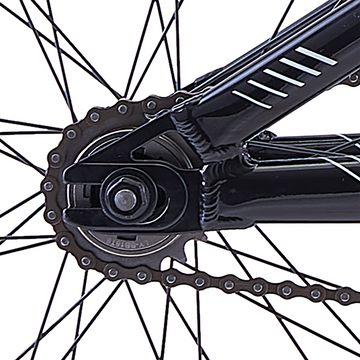

Rear Hub - Redline aluminium flip-flop
Spokes - 14g steel
Rims - Alloy 'Race' 24 X 1.75, 36H
Tyres - Vee 'Speedster' 24 X 1.75"
Brake Levers - Tektro
Pedals - Redline aluminium 9/16" Platform

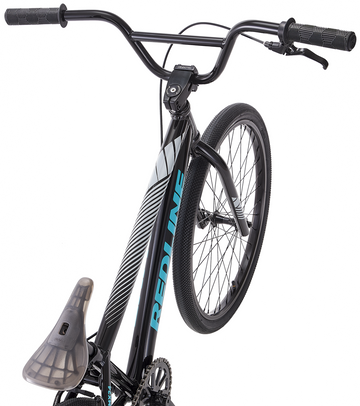

Handlebar - Redline 'Race', 5.5" Rise / 12° Back / 1° Up
Grips - Redline hex 'Expert' W/Plugs
Stem - Redline hollow point aluminium 1 1/8" threadless

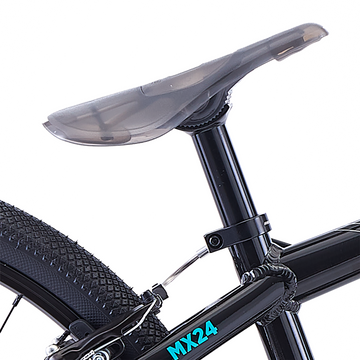

Seat - Pivotal 'Race'
Seatpost - Pivotal 26.8
Brakes - Tektro 'Bx310' Linear

Geometry
Frame Size - 24"
Bike Top Tube Length - 21.8"
Bike Head Angle - 74.0 °
Bike Seat Angle - 70.0 °
Bike Chain Stay Length - 15.1"
Bike Bb Height - 12.0"
Bike Stem Length - 55.0 mm
Bike Handlebar Width - 28.0"
Bike Crank Length - 175.0 mm
