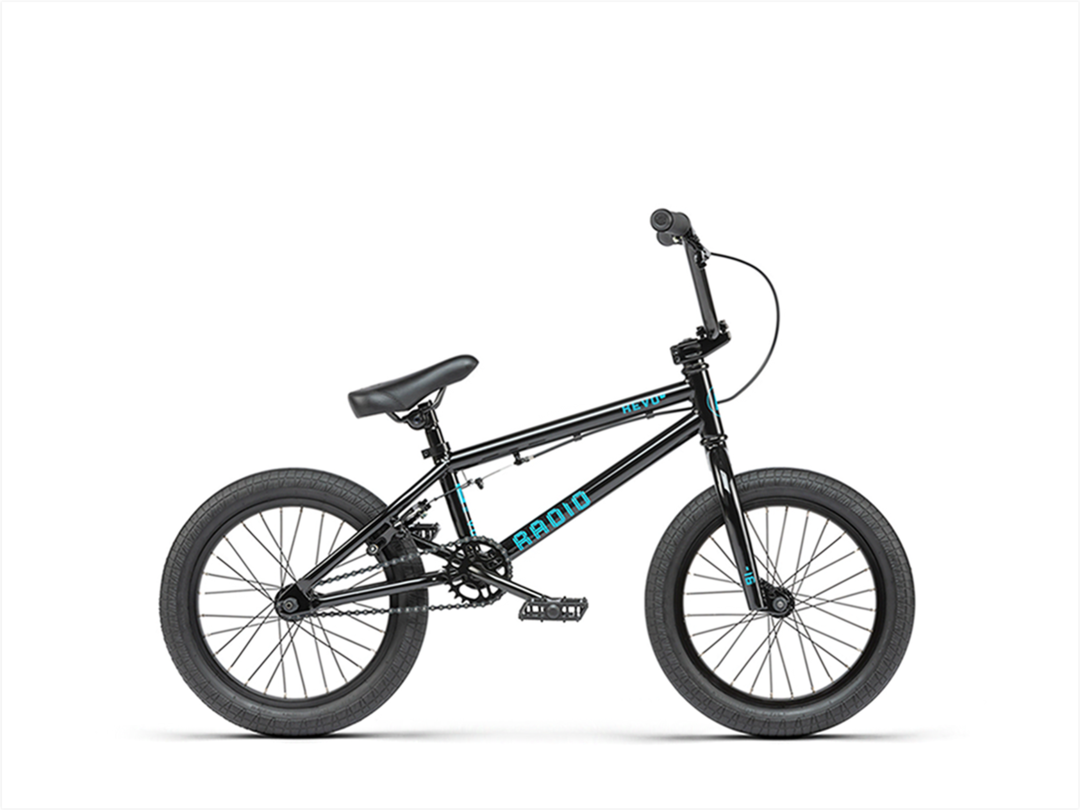

Radio Revo 16" Bmx Bike - Black
8% off Sale Sold out

Radio Revo 16" Bmx Bike - Black

#RABK129-21-BLK
$599.00 $549.00
Availability
Checking stock source...
JS ASK JONNY’S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY RADIO’S WARRANTY
Ride with confidence knowing this product is backed by RADIO’s manufacturer warranty. If there’s a defect in materials or workmanship, we’ll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you’re not on your own if something genuine goes wrong. See warranty details →

All The Deets

Description

The Revo line allows you to get your first taste of the BMX world on a solid and well-designed bike. Radio took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time. Despite the low price-point, the Revo is packed full of great features like 25-9 gearing and short/responsive pro-inspired geometry.
The Revo 16″ is a scaled-down version of the 20″. Radio designed the Revo to follow a similar responsive geometry set as their Dice 16″, allowing the younger rider to really put this bike through its paces.  Despite the low price point, you’ll find plenty of neat details on the Revo 16″ including the tapered fork blades and even an alloy seat post to help shred the grams.

Specifications
Frame - Radio 'Revo 16' frame, full 1020 hi-ten
Fork - Radio 'Rookie 16' fork, hi-ten
Handlebar - Radio 'Revo 16' bar, hi-ten
Grips - Radio 'Junior' grips, flangeless, 130mm
Stem - Salt 'Junior' topload stem, 40mm reach
Headset - FSA a-head-set loose ball
Brake lever - Radio 'Junior 16' brake lever, alloy
Brake - Radio 'AM' caliper brake, alloy, front / Radio 'AM-U' U-brake, alloy, rear
Crank - Radio 'Rookie' 1pc crank, forged, Cr-Mo, 127mm
BB - USA size, looseball
Pedals - Radio 'Rookie' nylon pedals
Chain - KMC 'S1' chain
Sprocket - Radio 'Rookie' sprocket, steel, 25T
Driver - 9T, cassette
Front hub - Radio 'Rookie' steel hub, Lb, 28H
Rear hub - Radio 'Rookie' cassette hub, steel, Lb, 9T, 3/8″ axle, 28H
Front rim - Salt 'AM' rim, straight single wall, 28H
Rear rim - Salt 'AM' rim, straight single wall, 28H
Seat - Radio 'Century' railed seat
Seat post – Radio 'AM' alloy seatpost
Seat clamp - Radio slim alloy seat clamp
Tyres - Radio 'Rookie' tyres, 16″x2.1″, front & rear
Weight - 9.95kg

Frame geometry
Top tube length - 16″
Chain stay length - 11.2″
Head tube angle - 75°
Seat tube angle - 71.5°
Bottom bracket height - 9.75″
Standover height - 6.6″

Handlebar geometry
Rise - 6.8″
Width - 23.6″
Backsweep - 10°
Upsweep - 3°
