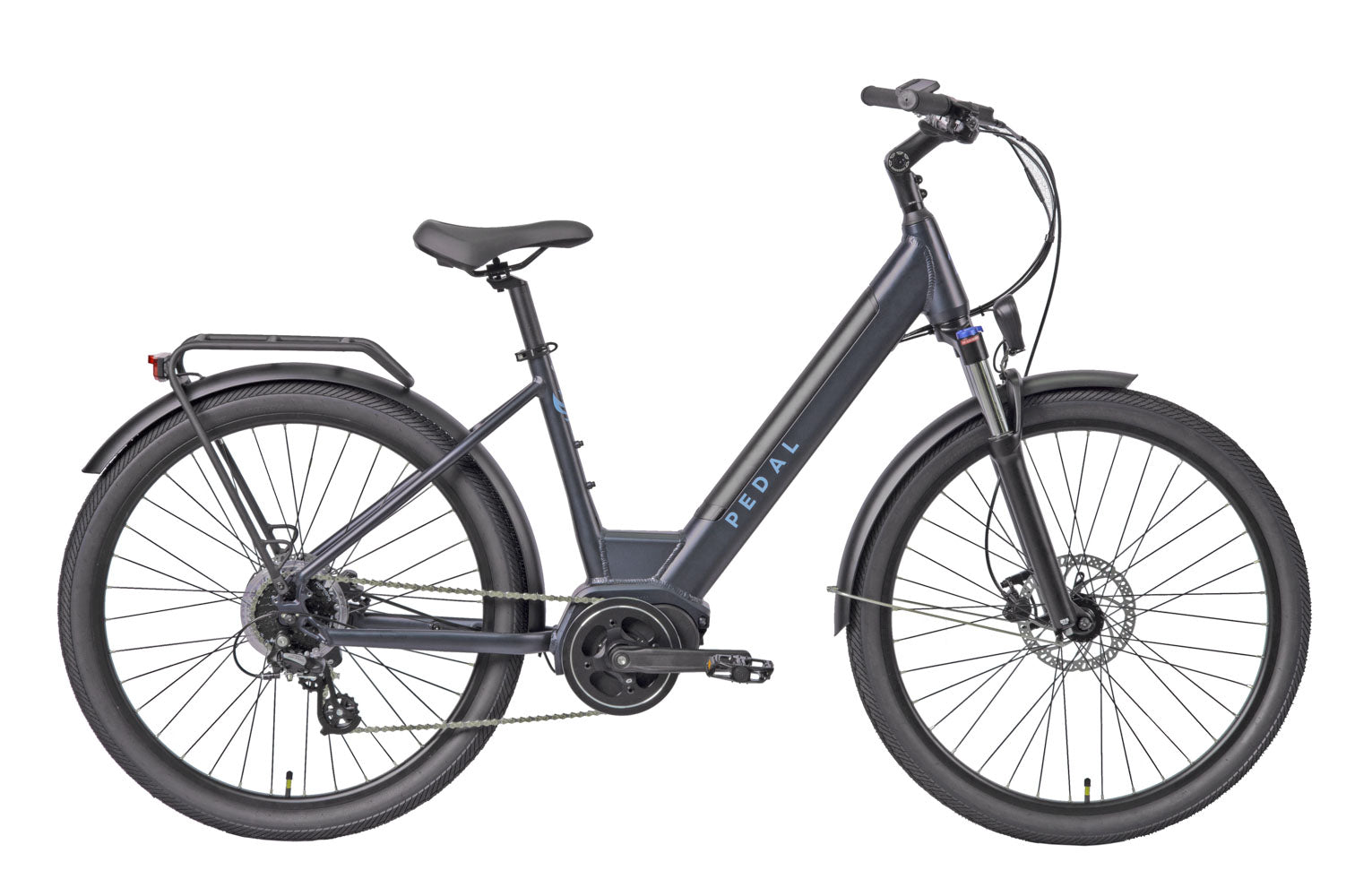

Pedal Eagle ST - Satin Steel Grey -

The Pedal Eagle ST is a versatile electric hybrid bike that makes your ride easier and more comfortable! It is great for commuting and leisurely rides on roads and paths, coming equipped with LED lights and an integrated rack. The Eagle ST is powered by a quiet 250W mid drive motor and a removable 417Wh battery, which offers a smooth and powerful ride with five assist modes. With a range of up to 60 km and a charge time of only 6 hours, the Eagle ST is perfect for both daily commutes and weekend adventures. The sturdy step-through alloy frame and coil cast alloy fork with lockout ensure a comfortable journey, while the Shimano Altus 1x8-speed drivetrain, Tektro hydraulic disc brakes, and 27.5 x 2.20" tyres are designed for ease-of-use and reliability.

FRAME MATERIAL     ALLOY
FRAME DESCRIPTION     STEP THROUGH ALLOY 6061 REMOVABLE BATTERY
FRAME STYLE     STEP-THROUGH
FORK MATERIAL     STEEL
FORK BRAND     UDING
FORK DESCRIPTION     COIL CAST ALLOY D6 WITH LOCKOUT
FRONT TRAVEL     UNDER 100MM
DERAILLEUR FRONT     1X
DERAILLEUR REAR     SHIMANO ALTUS 8 SPEED
GROUPSET     SHIMANO MIXED
SHIFTERS     8 SPEED TRIGGER
BRAKES     TEKTRO HD-M275
BRAKE TYPE     HYDRAULIC DISC BRAKE
ROTOR FRONT     180MM 6 BOLT
ROTOR REAR     160MM 6 BOLT
CRANKSET AND FRONT CHAINRINGS     38T- NW - STEEL, W/SINGLE ALLOY CG 170MM ALLOY ARM
BOTTOM BRACKET     INTEGRATED
CHAIN     KMC 8 SPEED
PEDALS     9/16 RESIN PLATFORM
REAR GEARS     8 SPEED
CASSETTE DESCRIPTION     SHIMANO HG200 12-32T
HANDLEBAR     COMFORT SWEEP W:640MM, R:30MM, BACKSWEEP:38D,BARBORE:31.8MM
HANDLEBAR STEM     ADJUSTABLE A HEAD, EXT:85MM H:41MM,BAR BORE:31.8MM,ED BOLT,ADJUSTBALE:10-50DEGREE
HEADSET     A HEAD,28.6MM,44*44MM,W/15MM RESIN BLACK CONE
GRIPS / BAR TAPE     ERGO HL-G316 L/R:136.5MM, CLOSED END,ALLOY LOCK
SEAT POST     30.9*350MM, W/ALLOY HEAD
SADDLE     SELLE ITALIA COMFORT SPORT 5537HRN
FRONT AND REAR HUBS     F: SF-A262F 36H QR 6 BOLT LBB / R: SF-A626R 36H QR 6 BOLT 10MM 135MM LBB
FRONT AND REAR RIMS     RD-H20 27.5"*36H*14G, DOUBLE WALL, F/V W/EYELETS
FRONT AND REAR TYRES     K1052 KENDA CITY TREAD - 27.5" X 2.20"
WHEEL SIZE     27.5" (650B)
FRONT AND REAR LIGHTS     FRONT & REAR 6V LED
FENDER     70MM STEEL PAINTED
ACCESSORIES (KICKSTAND, PANNIER RACK, CHARGER)     KICKSTAND, 42V 2A CHARGER (3 PIN FOR 36V BATTERY), INTEGRATED SINGLE STAY PANNIER RACK (NOT FOR CHILD SEAT USE)
DRIVE UNIT LOCATION     MID DRIVE
DRIVE UNIT DESCRIPTION     ANANDA M60
MOTOR POWER (WATTS)     250
MOTOR TORQUE (NM)     70
BATTERY DESCRIPTION     REMOVABLE 36V EEL MINI
BATTERY SIZE (WATT-HOURS)     417
CHARGE TIME (HOURS)     6
DISPLAY     D19 LCD (UART)
ASSIST MODES     5 MODES
RANGE (KMS)     60
IP RATING     IP54
