OneUp Components SPD XC Clip Pedals -

Less Pedal. More Power.

Our new XC Clip Pedals are stripped down to the lightest possible profile for when every gram counts. These are the thinnest dual-sided MTB clips on the market, measuring just 26.8mm.

The pedal body uses an extremely lightweight, ultra-thin profile that helps you keep power output consistent on technical rocky climbs, without having to worry about pedal strikes. And OneUp’s custom, SPD-compatible binding mechanism and cleat deliver a solid connection and smooth release.

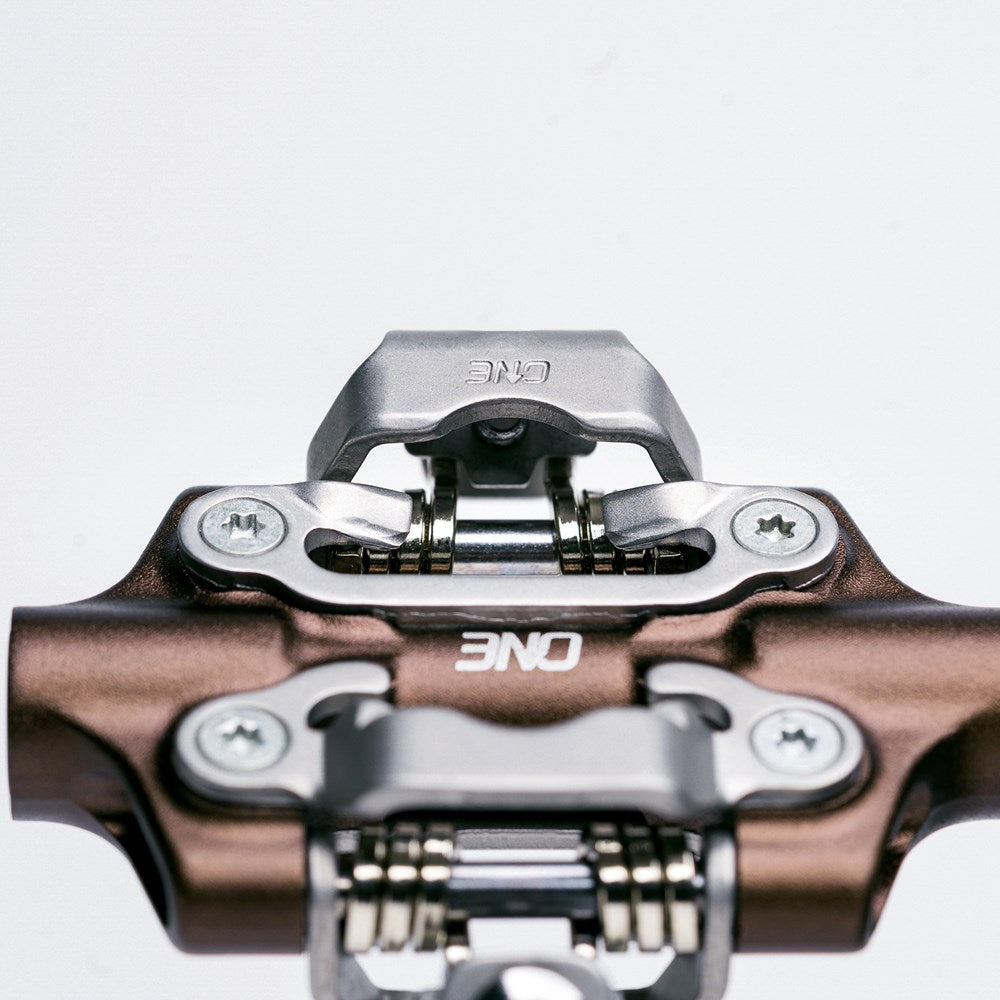

Smooth Action

XC Clip Pedals are built around OneUp’s SPD-compatible binding system. Our custom design offers a wider range of retention settings and a more secure cleat fit than traditional off-the-shelf SPD designs.

Riders will appreciate the tighter cleat fit during hard efforts, out of the saddle sprints and technical descents. OneUp bindings feature integrated cleat ramps that provide a consistent, reliable release at 12° of rotation with 5° of float.

Every pair of pedals includes a pair of cleat spacers to help dial in your pedals for your setup.

Shared Internals

XC Clips feature igus™ bushings and two cartridge bearings on a chromoly axle, all protected by a double-axle seal. They share a rebuild kit with both our Wave and Clip Pedals. This axle system makes them strong enough for any type of riding and ensures that service parts are easy to find.

A Pedal Bearing Nut Tool is included with every pair of pedals so that riders can easily service them at home, with the help of our Service Guides.

Specs

• Weight: 303g per pair
• Thickness: 14.4mm (body), 26.8mm (binding)
• Platform Size: 75mm x 68mm (W x L)
• Stance width: 55mm (Center of binding to outside of crank face)
• Float: 5° (12° release angle)
• Cleats: OneUp Cleats (SPD™ Compatible and includes 1mm cleat spacers for shoe fit tuning)
• Internals: Inboard Igus® bushing and two outboard cartridge bearings
• Axle: Chromoly Steel with Black ED coating
• Colours: Black, Bronze, Dark Blue, Dark Green, Grey, Purple
