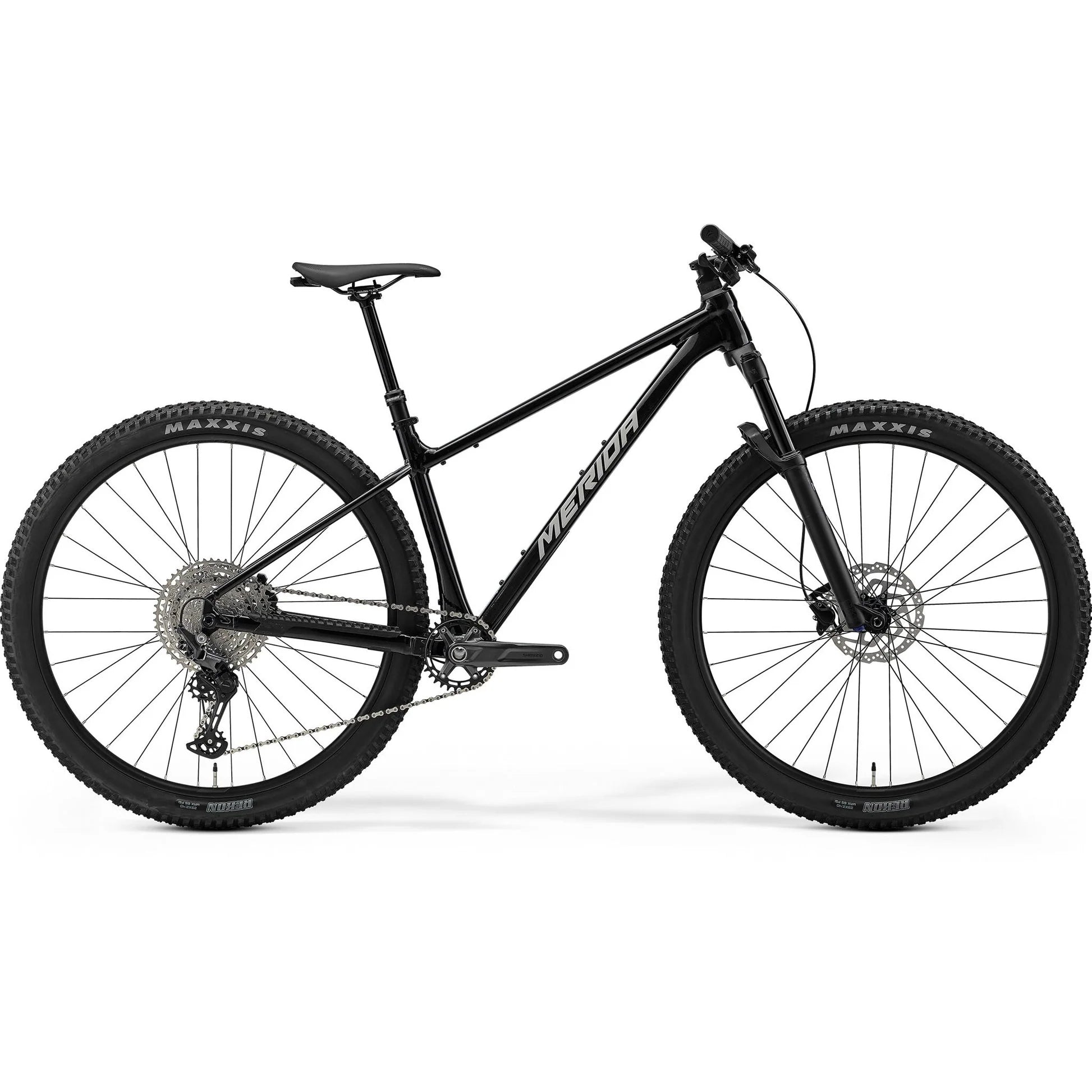

The Merida Big.Nine TR 700 is a versatile cross-country bike designed for riders who seek performance and reliability on the trails. Its lightweight alloy frame and 120mm Manitou Machete Comp fork provide a smooth and controlled ride over rough terrain. Equipped with a Shimano Deore groupset, this bike ensures precise shifting and efficient power transfer. The hydraulic disc brakes offer reliable stopping power in all conditions, while the 29" tubeless-ready wheels enhance traction and stability. Whether you're tackling challenging trails or enjoying a leisurely ride, the Merida Big.Nine TR 700 delivers a balanced and enjoyable cycling experience.
Key Features
- Lightweight alloy frame
- 120mm front suspension travel
- Shimano Deore groupset
- Hydraulic disc brakes
- 29" tubeless-ready wheels
ACCESSORIES MERIDA Multitool with saddlebox
AXLES R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
BOTTOM BRACKET Shimano BB-MT-501; 24mm
BRAKES F: Shimano MT200; 2 piston | R: Shimano MT200; 2 piston
CASSETTE Shimano Deore M6100; 10-51 ATC; 12 GER
CHAIN KMC X12
COLOUR METALLIC BLACK(SILVER)
CRANKSET Shimano Deore MT512; 32 ATC; 170 mm for all sizes
DERAILLEUR REAR Shimano Deore M6100; SGS
FORK Manitou Machete Comp; Air; 120 STR; Tapered; 44 mm fork offset
FRAME BIG.NINE TR LITE III; MAT aluminium; 29x2.4" max. WHS; 148x12 AST; BSA BBR
GRIP MERIDA COMP TR
HANDLEBAR MERIDA EXPERT CC; MAT aluminium; 760 WHB; 10 RHB
HANDLEBAR STEM MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD; 60mm
HEADSET Acros ICR MERIDA EXTERNAL neck; Upper and lower IPS sealing
HUBS F: Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock | R: Shimano TC500-MS-B; 148x12 WHR; 32 SPH; Centerlock
RIM MERIDA COMP CC II; 25 IWR; MAT aluminium; tubeless ready
ROTOR FRONT Shimano RT10; 180mm
ROTOR REAR Shimano RT10; 180mm
SADDLE MERIDA COMP SL; 25% recycled material; V-mount; incl. MERIDA minitool
SEAT CLAMP MERIDA EXPERT
SEAT POST MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 125 SPT - M/L: 150 SPT - XL/XXL 175 SPT
SHIFTERS F: Shimano SL-MT500-IL | R: Shimano Deore M6100
SPOKES Black stainless
TYRES F: Maxxis Rekon; 29x2.4"; wire | R: Maxxis Rekon; 29x2.4"; wire
