Bikone BSA Road Ceramic Aero UAE Bottom Bracket for Shimano Default Title

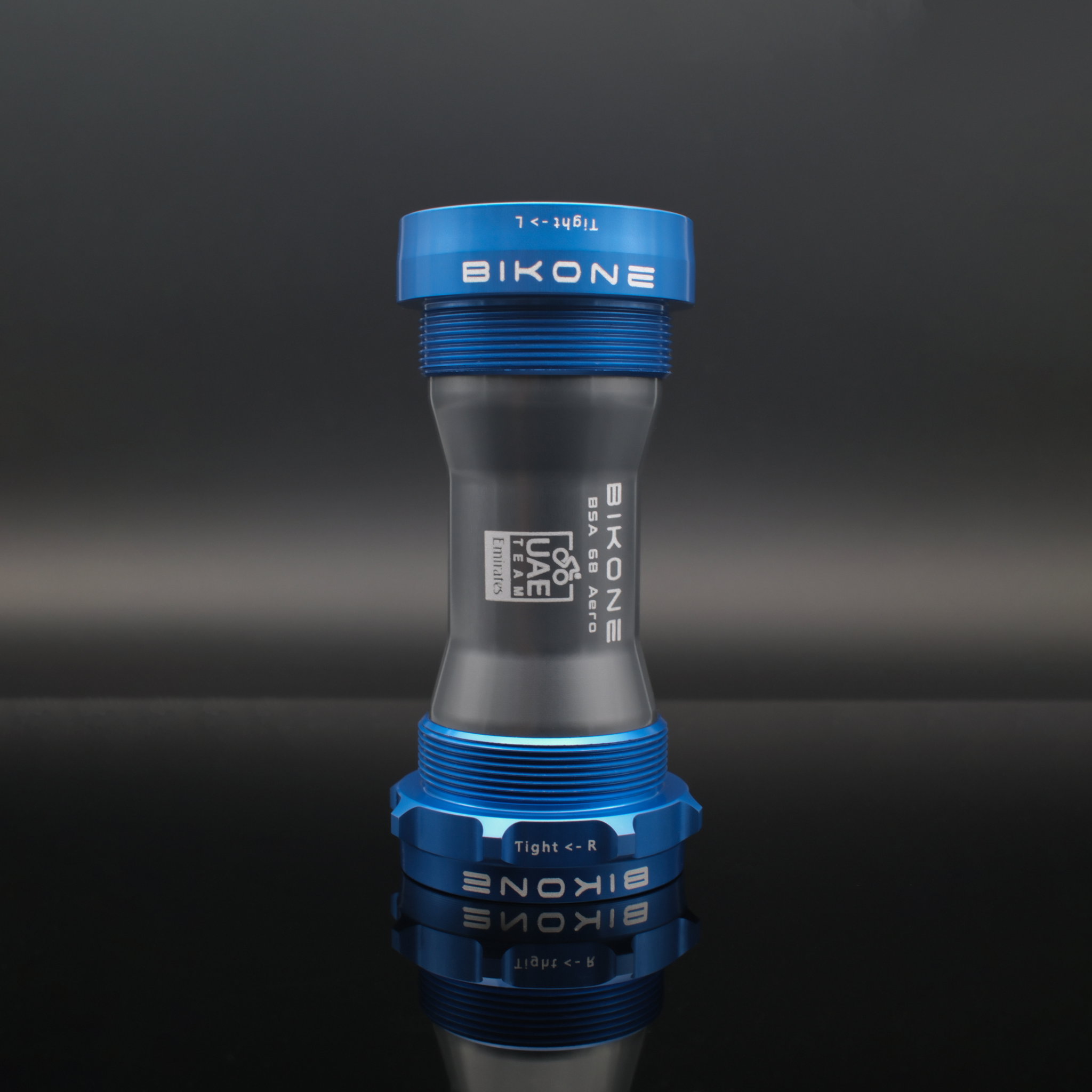

Bikone BSA Road Ceramic Aero UAE Bottom Bracket for Shimano

#35010417101603
$629.00
Availability
Checking stock source...
JS ASK JONNY’S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY BIKONE’S WARRANTY
Ride with confidence knowing this product is backed by Bikone’s manufacturer warranty. If there’s a defect in materials or workmanship, we’ll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you’re not on your own if something genuine goes wrong. See warranty details →

All The Deets

Description
  • BSA Road Ceramic Aero UAE Bottom Bracket for Shimano is our lightest and most refined version yet: 17 grams lighter, built with a fully smooth aero cup, and engineered for smoother, more efficient rotation through hybrid ceramic bearings.

Developed in collaboration with UAE Team Emirates, it helps you save watts with every pedal stroke for even greater marginal gains, turning small improvements into real performance on the road.

Included in the box:

  • BSA Road Ceramic Aero UAE Bottom Bracket for Shimano
  • Tool for Left side installation. (Internal notches)
  • Tool for Right side installation (Regular BSA tool)
  • Two extra seals for humid weather conditions.
  • Assembly specs
  • Crankset diameter: 24mm (Shimano)
  • Frame width: 68 mm (Compatible with road bikes)
  • Frame diameter: BSA
  • For Threaded frames
  • This bottom bracket uses a regular BSA/ITA tool for its assambly and dissasambly. Outside diameter of 44 mm and inner diameter of 42
  • 7 mm diameter. 16 notch.
  • The left side tool is included with the purchase of the bottom bracket.
  • BSA Road Ceramic Aero UAE Bottom Bracket for Shimano characteristics
  • 79 grams
  • our lightest bottom bracket to date. We have reduced the weight by 15 grams compared to the previous model.
  • New design. Every shape and structural decision has been made to remove unnecessary grams.
  • Aero Cup. One of the cups features a fully smooth outer surface with no external notches
  • as installation notches are located internally. This profile reduces airflow turbulence around the area and ensures a more aerodynamic integration with the frame.
  • Hybrid Ceramic Bearings(ABEC5 /P5 - 2RS).
  • Made of 7075 Aluminium
  • a high-strenght aerospace-grade aluminium on which we apply a T6 treatment. This material allows us to remove weight without compromising performance.
  • Completely protected. Axial seals on bearings and O-rings to fully protect all surfaces.
