Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Amflow TL Carbon -
Sold out

Amflow TL Carbon -

$5,599.00
Choose an option
Checking stock source...
JS ASK JONNY'S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY AMFLOW'S WARRANTY
Ride with confidence knowing this product is backed by Amflow's manufacturer warranty. If there's a defect in materials or workmanship, we'll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you're not on your own if something genuine goes wrong. See warranty details →

All The Deets

Description

An SUV e-bike built for multiple scenarios, Amflow TL Carbon brings agility on trails, smoothness in the city, and stability to loaded touring.

Long Range With 800Wh Removable Battery

The 800Wh battery is easy to swap and delivers up to 172km of range . Add a secondary battery to expand the total capacity up to 1280Wh

Supports up to 200kg Total Weight

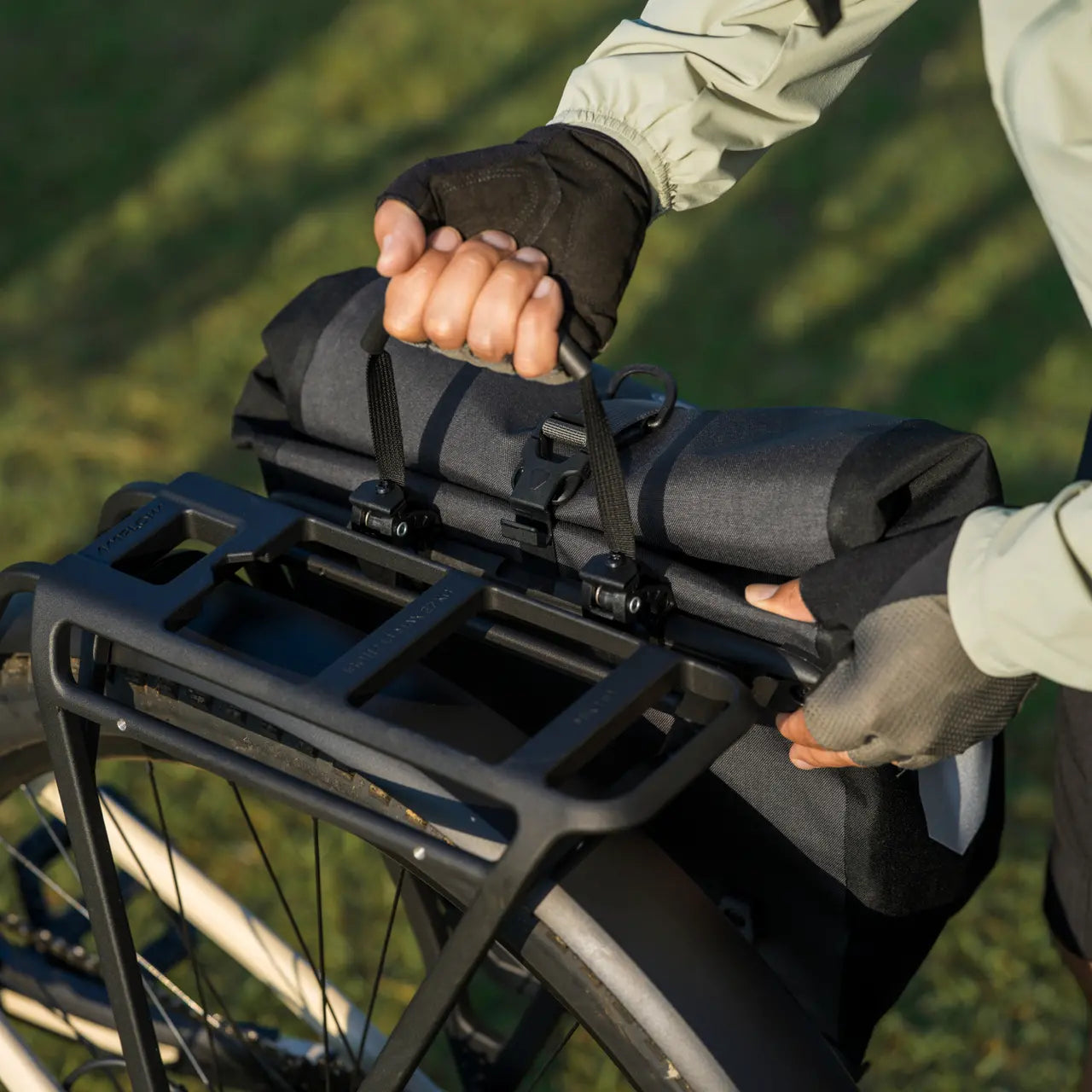

Supports up to 200kg total weight. Features MIK HD-compatible rear rack and modular mounting design for panniers and a bike trailer.

125N·m & 1100W Powerful Output

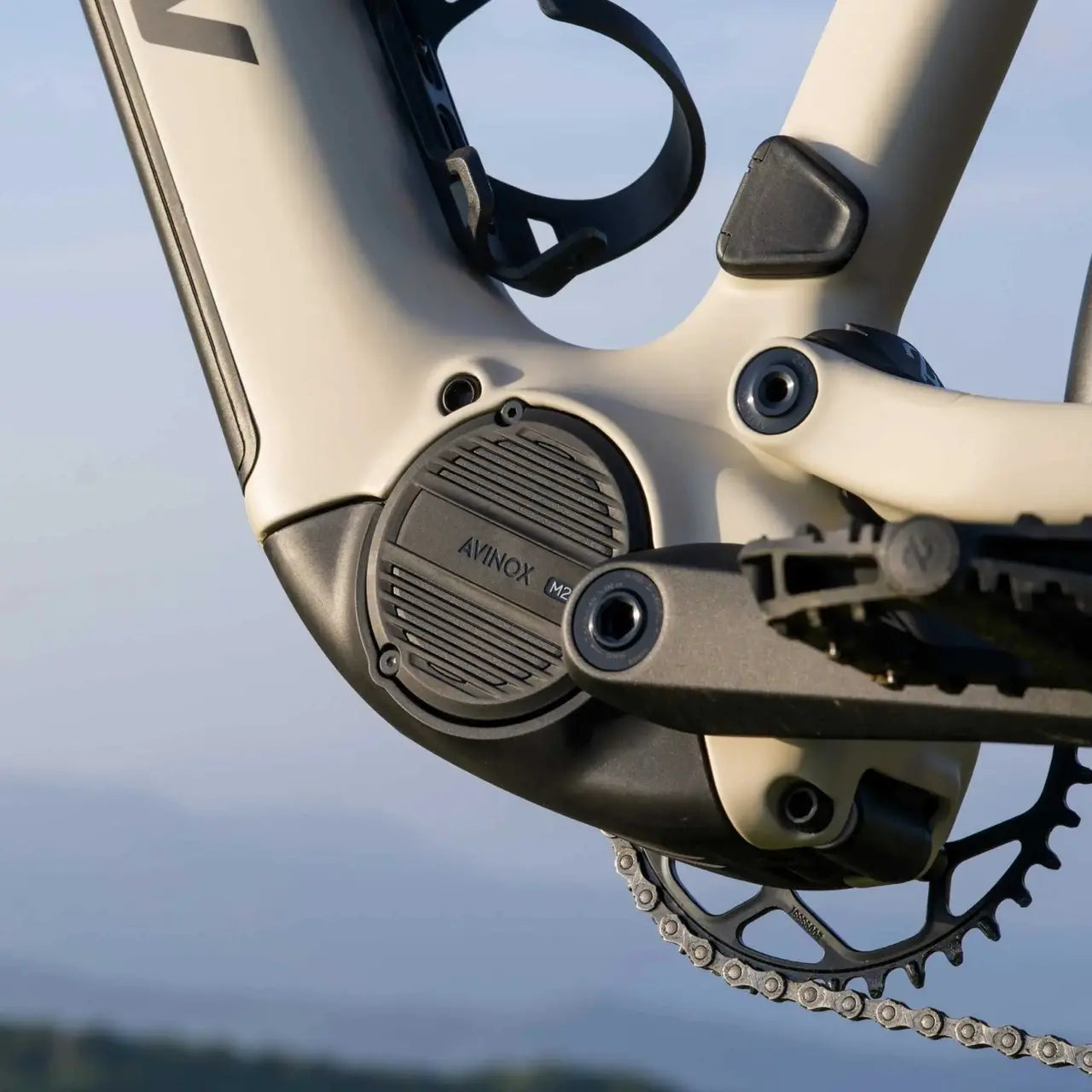

Weighing just 2.65kg, the Avinox M2 Drive Unit delivers 1100W of peak power and 125N·m of max torque for steep ascents.
Spec

Frame

  • Amflow TL Carbon Frame
  • Full Suspension Design
  • Removable Battery System
  • Compatible with 27.5" and 29" Front and Rear Wheels
  • Compatible with Front and Rear Mudguards
  • Compatible with Front and Rear Racks
  • Compatible with Bike Trailers (Trailer Thru-Axle Required)
  • Colour: Silica Beige

E-Bike System

  • Motor: Avinox M2 Drive Unit
  • Continuous Torque: 110Nm
  • Peak Torque: 125Nm

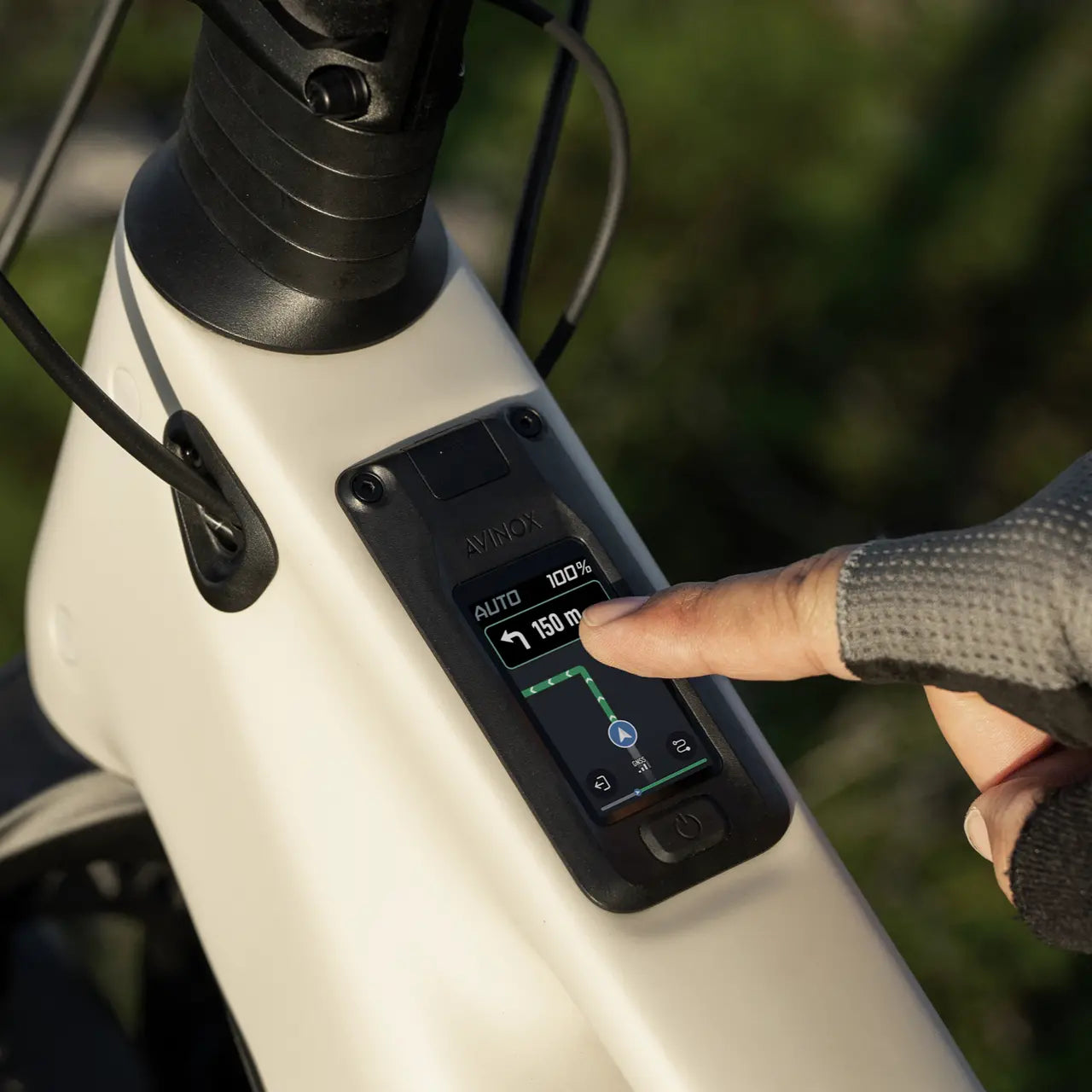

  • Display: Avinox DPC100 2" OLED Control Display
  • Battery: Avinox RS800 Removable Battery
  • Battery Capacity: 800Wh
  • Wireless Controllers: Avinox Wireless Controllers (Left & Right)
  • Charger: Avinox 4A Charger
  • Charging Output: 168W

Suspension

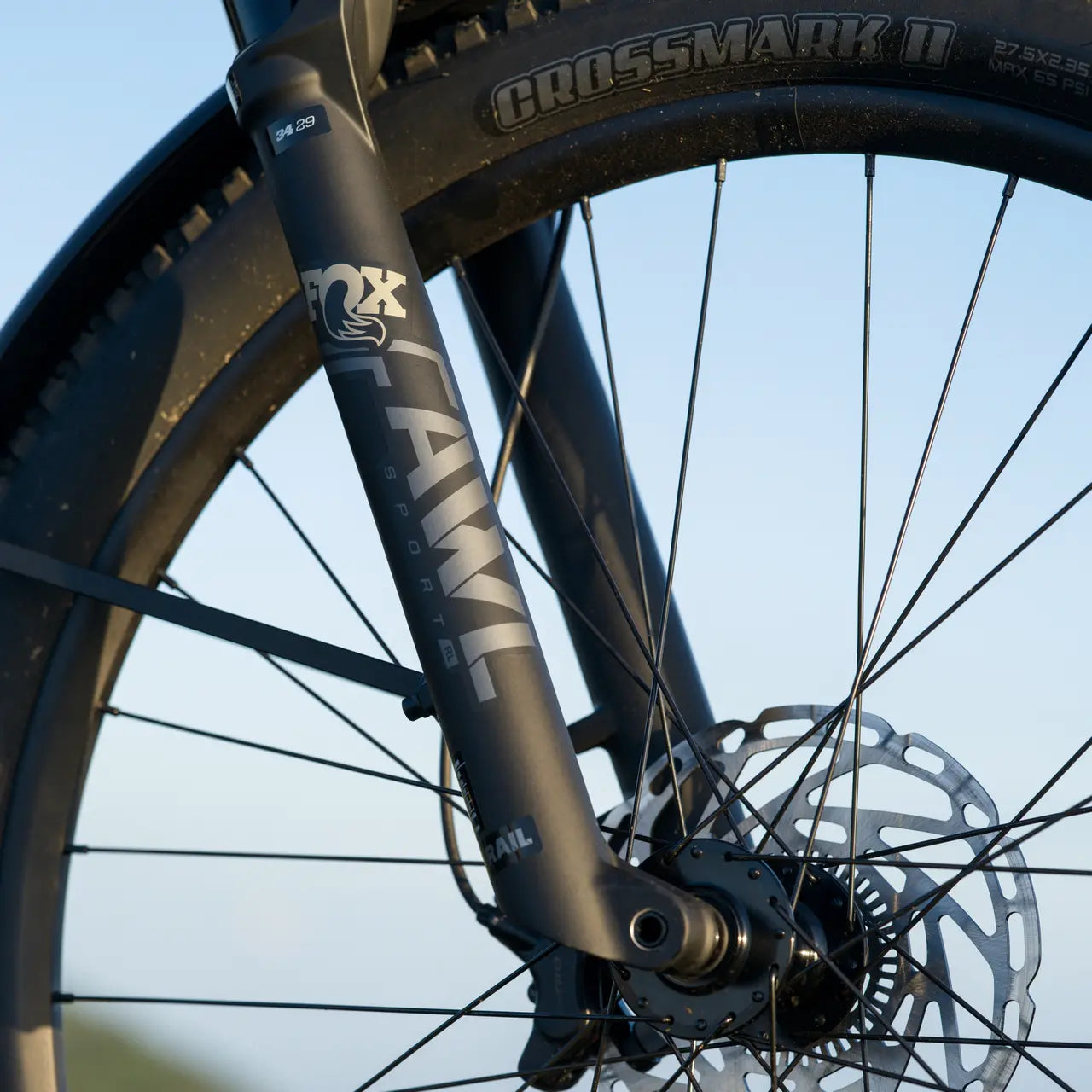

Fork

  • FOX AWL Sport
  • 120mm Travel
  • RAIL 2.0 Damper
  • Low-Speed Rebound Adjustment
  • 15x110mm Kabolt Axle
  • 44mm Offset

Rear Shock

  • FOX Float Rhythm
  • Amflow TL Tune
  • Low-Speed Rebound Adjustment
  • 190x45mm

Drivetrain

  • Rear Derailleur: TRP E.A.S.I. RD-T7010E-L Electronic
  • Cassette: CS-M5243, 11-43T
  • Chain: Avinox eGlide T
  • Chainring: Avinox Direct Mount, 38T
  • Crankset: Avinox SL

    155mm (S/M)
    160mm (L/XL)

Brakes

  • Brakes: Tektro TKD173 Hydraulic Disc
  • 4-Piston Calipers
  • Custom Tuned for Amflow
  • Rotors: Tektro TR180-61E
  • Front Rotor: 180mm
  • Rear Rotor: 180mm
  • Integrated Tonewheel for Avinox System

Cockpit

  • Handlebar: Amflow Touring Handlebar

    720mm Width (S/M)
    740mm Width (L/XL)
    35mm Clamp Diameter
    93mm Rise

  • Stem: Amflow Touring Split Stem

    35mm Clamp
    35mm Length
    0° Rise

  • Grips: Amflow Enduro Grip 2

Seating

  • Saddle: Amflow Touring Saddle
  • Dropper Post: Amflow TA Dropper Post

    31.6mm Diameter
    Adjustable Travel Reduction (0/-10/-20mm)
    150mm Travel (S/M)
    170mm Travel (L/XL)

Wheelset

Front Wheel

  • Amflow HTA-25
  • 27.5"
  • Alloy Rim
  • 25mm Internal Width
  • 32 Hole
  • 15x110mm Thru-Axle Hub
  • 6-Bolt Rotor Mount

Rear Wheel

  • Amflow HTA-25
  • 27.5"
  • Alloy Rim
  • 25mm Internal Width
  • 32 Hole
  • 12x148mm Thru-Axle Hub
  • 6 Pawl Freehub
  • Shimano HG Driver
  • 6-Bolt Rotor Mount

Tyres

  • Front: Maxxis Crossmark II 27.5x2.35

    EXO Casing
    60TPI
    Wire Bead

  • Rear: Maxxis Crossmark II 27.5x2.35

    EXO Casing
    60TPI
    Wire Bead

Accessories

  • Avinox Front Light
  • Sate-lite M8 Rear Light with Integrated Reflector
  • Amflow Touring Rear Rack
    MIK HD Compatible
    Front Mudguard
  • Rear Mudguard
  • Amflow Touring Kickstand
  • Amflow Elite MTB Pedals
  • Amflow Bottle Cage
  • Dropper Post Travel Reduction Spacer
  • Two Battery Keys
  • Torque Wrench Included
