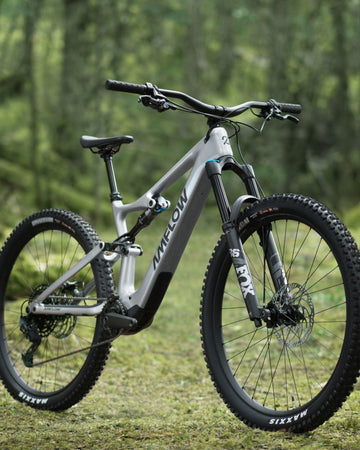

Amflow PL Carbon 800wh - Satin Silver -

#amflowslv800S
$9,149.00
Regular price $9,399.00 Sale price $9,149.00
Choose an option
Checking stock source...
JS ASK JONNY'S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY AMFLOW'S WARRANTY
Ride with confidence knowing this product is backed by Amflow's manufacturer warranty. If there's a defect in materials or workmanship, we'll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you're not on your own if something genuine goes wrong. See warranty details

All The Deets

Description

The Amflow PL electric mountain bike offers 850 watts of peak power in an ultra-light build weighing 19.2 kg. [1] With its unrivaled combination of power, range, weight, and intelligent features, this groundbreaking eMTB is built for the trailblazers.

  Frame

  • Amflow PL Carbon Frame
  • Satin Silver
  • 150mm rear travel
  • Compatible with 27.5" and 29" rear wheels

E-Bike System

Avinox M1 Drive Unit: 105 N·m

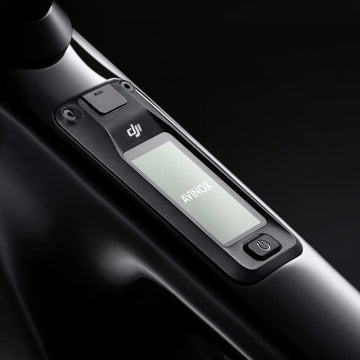

Avinox Screen: 2-inch OLED Control Display

Avinox Integrated Battery: 800Wh

Avinox Wireless Controllers: Right and left sides

Avinox Fast Charger: 12A/508W

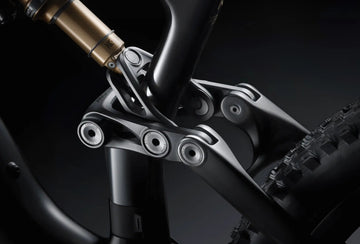

Rear shock

FOX Float Performance

Trunnion (185×55mm), custom tune, EVOL Air sleeve, 2-position lever



Fork

FOX 36 Performance

160mm travel, GRIP Damper, 15×110mm, 44mm rake



Transmission

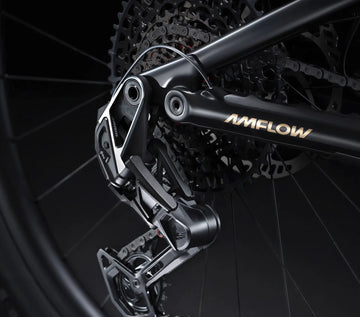

Rear Derailleur: SRAM GX Eagle 12-speed

Chainring: SRAM Eagle Transmission E-MTB Chainring 104BCD 34T

Shift Levers: SRAM GX Eagle Trigger Shifter|Single Click

Cassette: SRAM PG-1230, 11-50T

Chain: SRAM NX Eagle

Crankset: DJI Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes

Magura MT5 hydraulic disc brake, HC lever, 4-piston caliper w/ Shiftmix 3, 203mm MDR-C Rotor (front and rear)

Wheels

Amflow HMA-30

Rims: Alloy, 29'', 30mm internal width, 32H, tubeless ready

Spokes: SAPIM E-Light J-bend

Front Hub: Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt

Rear Hub: Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T

Tires

Front: Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO E-25 TLR

Rear: Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO+ E-25 TLR

Handlebar

Amflow Enduro Alloy Handlebar

35mm rise, 800mm wide

5-degree upsweep, 9-degree backsweep

Grips

Amflow Enduro Grips

Stem

Amflow Enduro Stem, One-piece CNC

Length: 35mm

Clamping diameter: 35mm



Saddle

Selle Royal SRX Plus

Seatpost

KS Rage-i

M: 150mm

L: 170mm

XL/XXL: 190mm



Accessories

Quick Start Guide

Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)

Shock Pump

Front and Rear Lights
