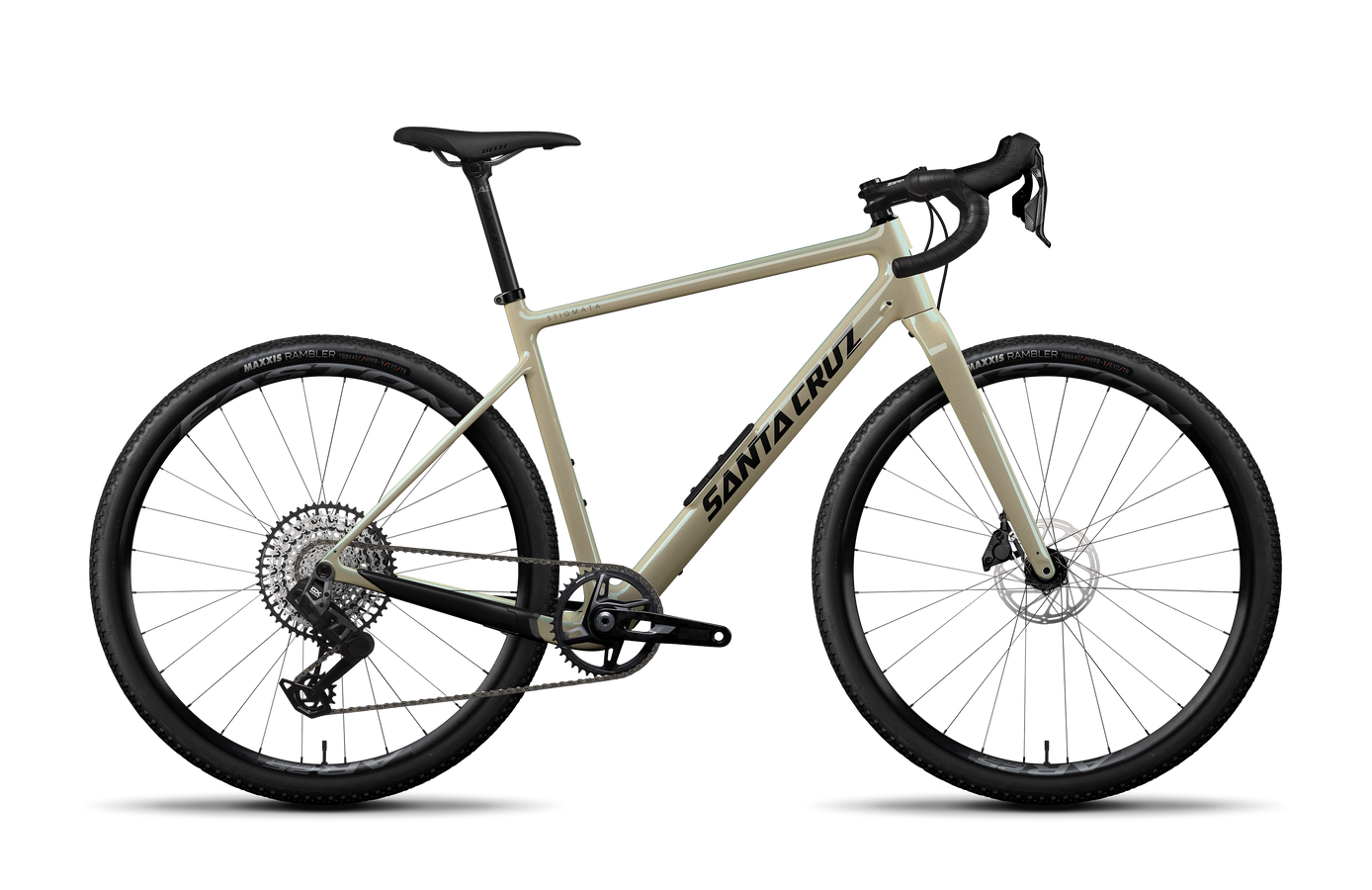

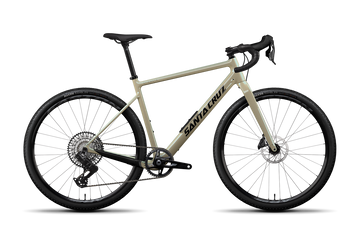

27 Santa Cruz Stigmata 4 CC - Rival 1X AXS Kit - Gloss Sage Green -
Sold out

27 Santa Cruz Stigmata 4 CC - Rival 1X AXS Kit - Gloss Sage Green -

#58-27290-446-1-946-000001
$7,499.00
Choose an option
Checking stock source...
JS ASK JONNY'S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY SANTA CRUZ'S WARRANTY
Ride with confidence knowing this product is backed by Santa Cruz's manufacturer warranty. If there's a defect in materials or workmanship, we'll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you're not on your own if something genuine goes wrong. See warranty details →

All The Deets

Description

The Stigmata blurs the lines between free-roading drop bar singletrack slicer and buckled down race-winning gravel machine. It’s designed for the rider lining up for The Big Event, escaping via the road less traveled or who can’t help themselves from finding the hardest way there. Whether your style is baggy or zipped up, the Stigmata is the fast and loose riding partner that’s always ready to rise to the occasion.

Key Specifications
  • Frame: Santa Cruz Carbon CC Gravel
  • Wheel Size: 700c
  • Drivetrain: SRAM GX Eagle AXS Transmission / Rival XPLR, 1x12-Speed
  • Gearing: 42T | 10-52T
  • Brakes: SRAM Rival AXS Hydraulic Disc
  • Rotors: SRAM Centerline Center Lock, 160mm Front / Rear
  • Wheelset: RaceFace AR Offset 25
  • Hubs: DT Swiss 370
  • Tyres: Maxxis Rambler 700x45c, Hyper-X, EXO
  • Cockpit: Zipp Service Course
  • Max Tyre Clearance: 50mm (1x) / 45mm (2x)
  • Weight: 9.36kg / 20.64lb


Spec
Frame & Fork
  • Frame: Santa Cruz Carbon CC Gravel
  • Wheel Size: 700c
  • Fork Axle-to-Crown: 430mm
  • Fork Offset: 45mm
  • Fork Compatibility: 40mm
  • Bottom Bracket Shell: 68mm Threaded
  • Maximum Chainring: 42T (1x) / 50T (2x)
  • Front Derailleur Mount: Clamp-On
  • UDH Compatible: Yes
  • Rear Spacing: 142mm
  • Rear Brake Mount: 160mm Flat Mount
  • Maximum Tyre Clearance: 50mm (1x) / 45mm (2x)
  • Seatpost Diameter: 27.2mm
  • Seat Clamp Diameter: 31.8mm
  • Water Bottle Mounts: 3
Drivetrain
  • Rear Derailleur: SRAM GX Eagle AXS T-Type, 12-Speed
  • Shifter: SRAM Rival AXS
  • Cassette: SRAM GX 1275 Eagle T-Type, 10-52T, 12-Speed
  • Chain: SRAM GX Eagle T-Type Flattop, 12-Speed
  • Crankset: SRAM Rival XPLR, 42T, XS–S: 165mm, M–L: 170mm, XL–XXL: 172.5mm
  • Bottom Bracket: SRAM DUB 68mm Road Wide
Brakes
  • Brakes: SRAM Rival AXS Hydraulic Disc
  • Front Rotor: SRAM Centerline, Center Lock, 160mm
  • Rear Rotor: SRAM Centerline, Center Lock, 160mm
  • Rear Brake Mount: 160mm Flat Mount
Wheelset
  • Front Rim: RaceFace AR Offset 25
  • Rear Rim: RaceFace AR Offset 25
  • Front Hub: DT Swiss 370, 12x100mm, Center Lock, 28H
  • Rear Hub: DT Swiss 370, 12x142mm, XDR, Center Lock, 28H
  • Valves: Reserve Fillmore
Cockpit
  • Handlebar: Zipp Service Course 70 XPLR Aluminium, 31.8mm, XS–S: 42cm, M–L: 44cm, XL–XXL: 46cm
  • Stem: Zipp Service Course, 70mm
  • Bar Tape: Velo Bar Tape
  • Headset: Cane Creek 50 IS Integrated, IS41/52
Seating
  • Saddle: WTB Silverado Medium, CroMo
  • Seatpost: Easton EC70, 27.2mm, Zero Offset, 350mm
Tyres
  • Front Tyre: Maxxis Rambler 700x45c, Hyper-X, EXO
  • Rear Tyre: Maxxis Rambler 700x45c, Hyper-X, EXO
Other
  • Weight: 9.36kg / 20.64lb
