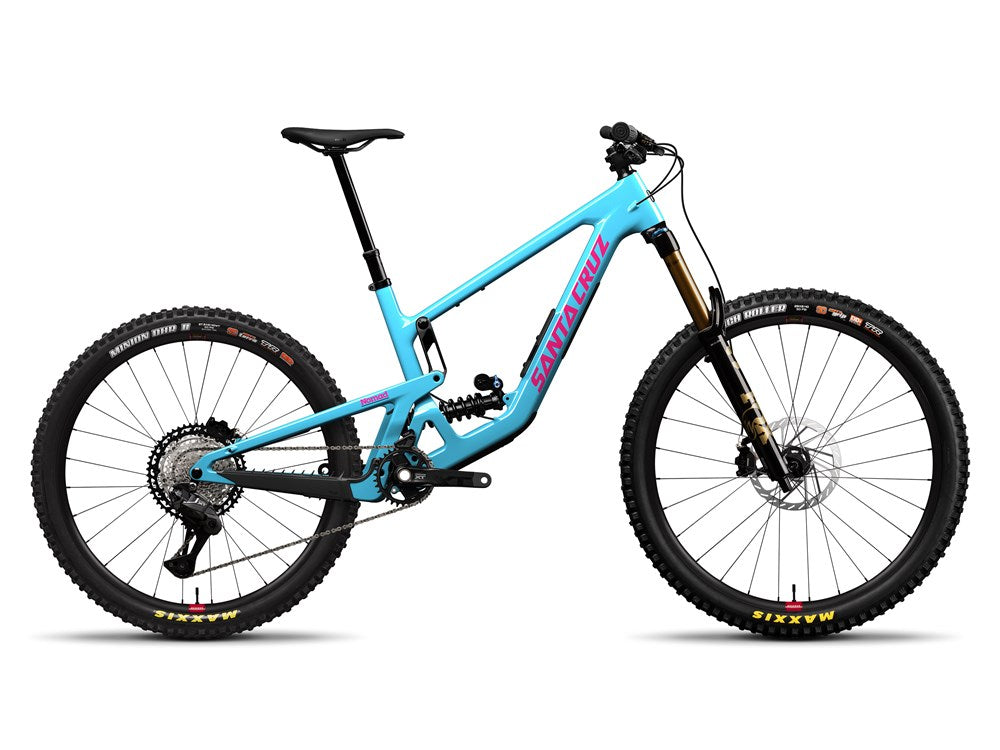

27 Santa Cruz Nomad 7 CC - XT Di2 - Gloss Aqua Magenta -

27 Santa Cruz Nomad 7 CC - X0 AXS Kit RSV - Matte Metallic Earth -

27 Santa Cruz Nomad 7 CC - XT Di2 - Gloss Aqua Magenta -

#58-27322-481-4-942-232701

$11,499.00

Choose an option

Checking stock source...

RENT FROM

JS ASK JONNY'S TAKE

Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD

Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.

COVERED BY SANTA CRUZ'S WARRANTY

Ride with confidence knowing this product is backed by Santa Cruz's manufacturer warranty. If there's a defect in materials or workmanship, we'll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you're not on your own if something genuine goes wrong. See warranty details →

All The Deets

Description

Zip it into the bag, chuck it in the van, or toss it over the tailgate—when you get to the trails, you’ll be happy you’re on a Nomad. The refined suspension offers efficient climbing, less reactivity under braking, and improves traction everywhere in between. In short, you’ll be more comfortable, more composed, and more confident no matter what the trail throws your way.

Key Specifications

Frame: Santa Cruz Carbon CC MX, 170mm Travel
Suspension: VPP™
Fork: FOX 38 Float Factory, GRIP X2, 170mm
Shock: FOX DHX2 Factory Coil, 230x65mm
Drivetrain: Shimano XT Di2, 1x12-Speed
Gearing: 32T | 10-51T
Brakes: SRAM Maven Silver Hydraulic Disc
Rotors: SRAM HS2, 200mm Front / Rear
Wheelset: Reserve 30|SL AL 6069 Front / 30|HD AL 6069 Rear
Hubs: DT Swiss 350 Front / 350 DEG DF Rear
Tyres: Maxxis High Roller 29x2.4" Front / Minion DHR II 27.5x2.4" Rear
Dropper: OneUp Dropper, Size-Specific Travel
Wheel Size: MX – 29" Front / 27.5" Rear
Downtube Storage: Glovebox
Weight: 15.67kg / 34.54lb

Spec

Frame & Suspension

Frame: Santa Cruz Carbon CC MX, 170mm Travel, VPP™ Suspension
Fork: FOX 38 Float Factory, GRIP X2, 170mm Travel, 44mm Offset
Fork Axle-to-Crown: 588mm
Fork Compatibility: 170–180mm
Shock: FOX DHX2 Factory Coil, 230x65mm
Spring Rate: S: 400lb, M: 450lb, L: 500lb, XL–XXL: 550lb
Recommended Sag: 30%
Shock Hardware: 30x8mm Front / 30x8mm Rear
Rear Spacing: 148mm
Bottom Bracket Shell: 73mm Threaded
Chainline: 55mm
Maximum Chainring: 36T
Chainguide Standard: Integrated Upper Guide + 2-Bolt ISCG 05 Bash Mount
UDH Compatible: Yes
Rear Brake Mount: 200mm Post Mount
Maximum Rotor Size: 223mm
Seatpost Diameter: 31.6mm
Seat Clamp Diameter: 36.4mm
Water Bottle Mounts: 1
Downtube Storage: Glovebox

Drivetrain

Rear Derailleur: Shimano XT Di2 M8250 SGS, 12-Speed
Shifter: Shimano Deore XT M8250 Shift Switch with Wolf Tooth Shiftmount Adapter
Cassette: Shimano XT M8200, 10-51T
Chain: Shimano XT M8100, 12-Speed
Crankset: Shimano XT M8200, 32T, S: 165mm, M–XXL: 170mm
Bottom Bracket: Shimano MT801 Threaded
Chainguide: OneUp Chainguide

Brakes

Brakes: SRAM Maven Silver Hydraulic Disc
Front Rotor: SRAM HS2, 200mm
Rear Rotor: SRAM HS2, 200mm
Rear Brake Mount: 200mm Post Mount
Maximum Rotor Size: 223mm

Cockpit

Handlebar: OneUp Carbon, 35mm Clamp, S: 760mm / 20mm Rise, M–XXL: 800mm / 35mm Rise
Stem: OneUp Enduro, 42mm
Grips: Santa Cruz Bicycles House Grips
Headset: Cane Creek 50 IS Integrated, IS41/52

Seating

Saddle: WTB Silverado Medium Fusion, CroMo SL
Dropper Post: OneUp, 31.6mm, S: 150mm, M: 180mm, L–XL: 210mm, XXL: 240mm

Wheels & Tyres

Front Rim: Reserve 30|SL AL 6069
Rear Rim: Reserve 30|HD AL 6069
Front Hub: DT Swiss 350, 15x110mm, 6-Bolt, 28H
Rear Hub: DT Swiss 350 DEG DF, 12x148mm, Micro Spline, 6-Bolt, 32H
Front Tyre: Maxxis High Roller 29x2.4", 3C MaxxGrip, EXO+
Rear Tyre: Maxxis Minion DHR II 27.5x2.4", 3C MaxxTerra, DoubleDown
Valves: Reserve Fillmore

Other

Weight: 15.67kg / 34.54lb
Pedals: Not Included
