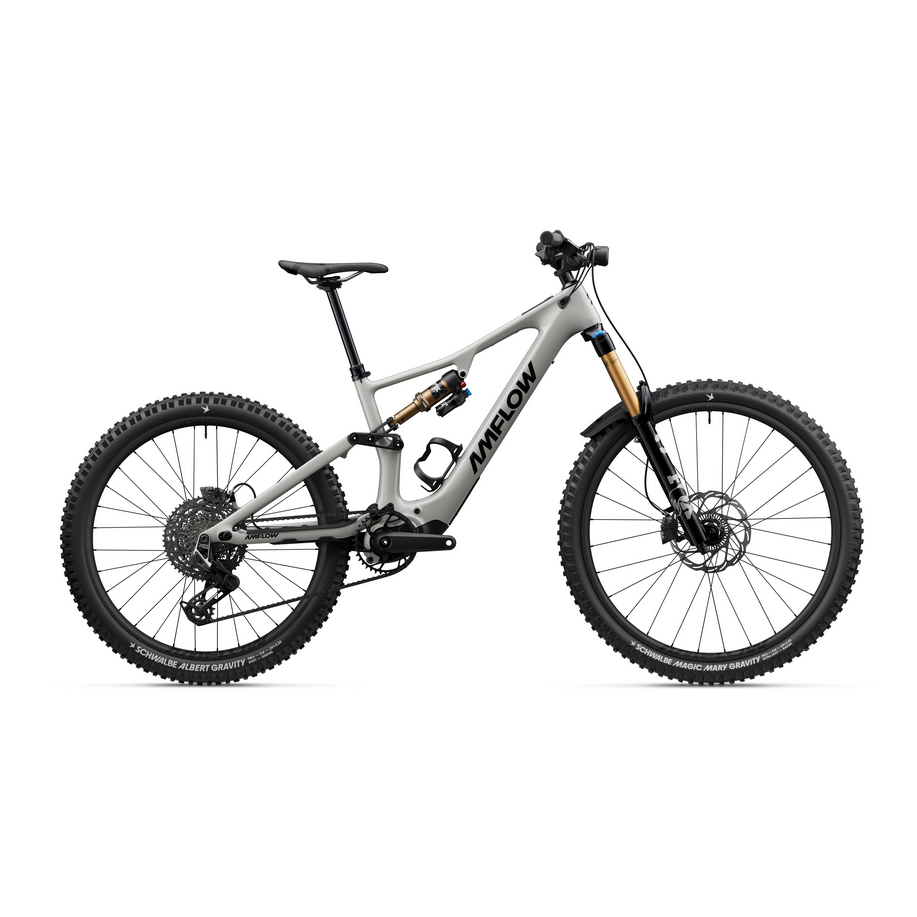

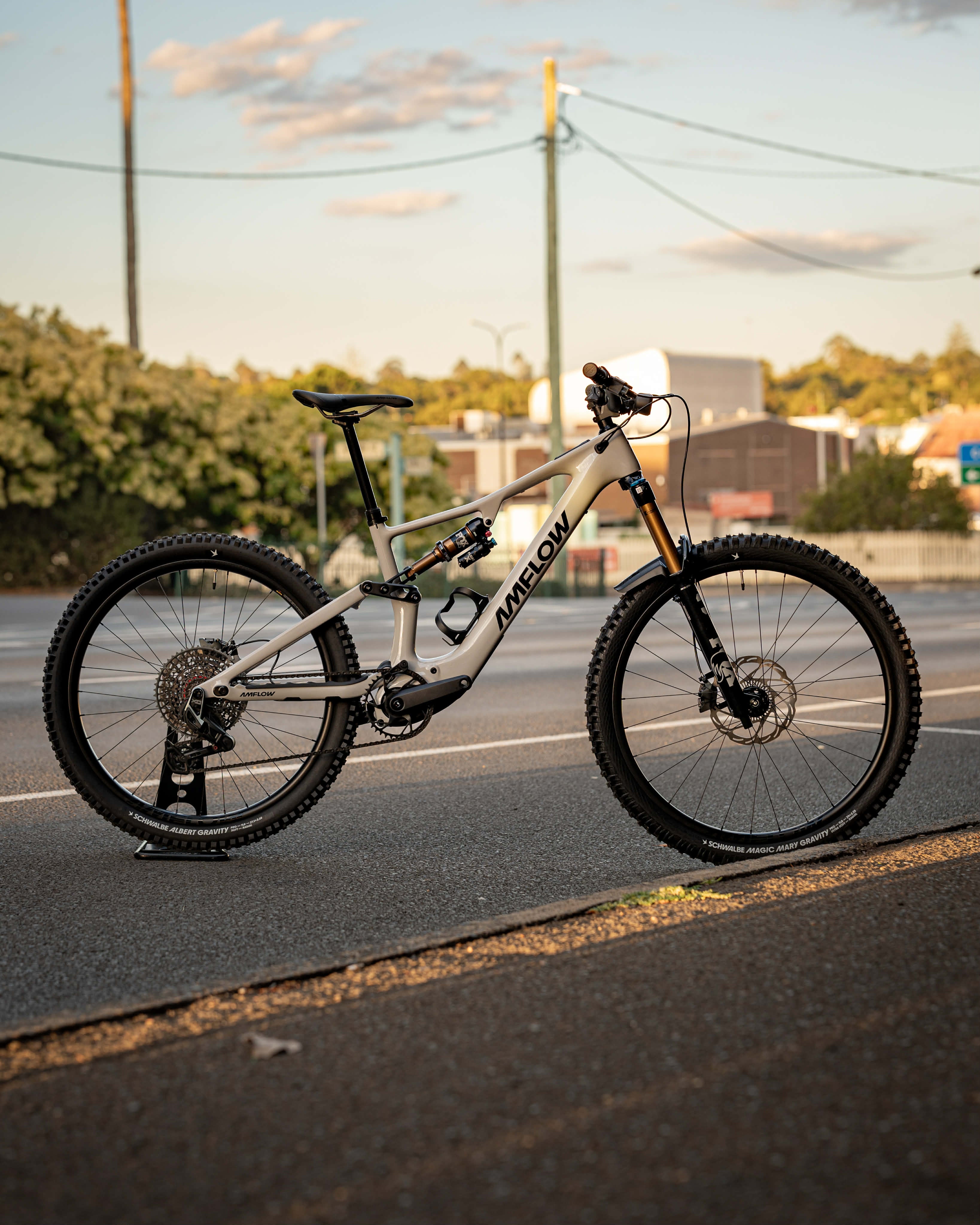

The Amflow PX Carbon Pro is a top-tier trail e-MTB built for riders who demand the highest level of performance. Featuring premium suspension, upgraded drivetrain components, and a carbon wheelset, it delivers exceptional control, precision, and responsiveness on the most technical terrain.
Frameset

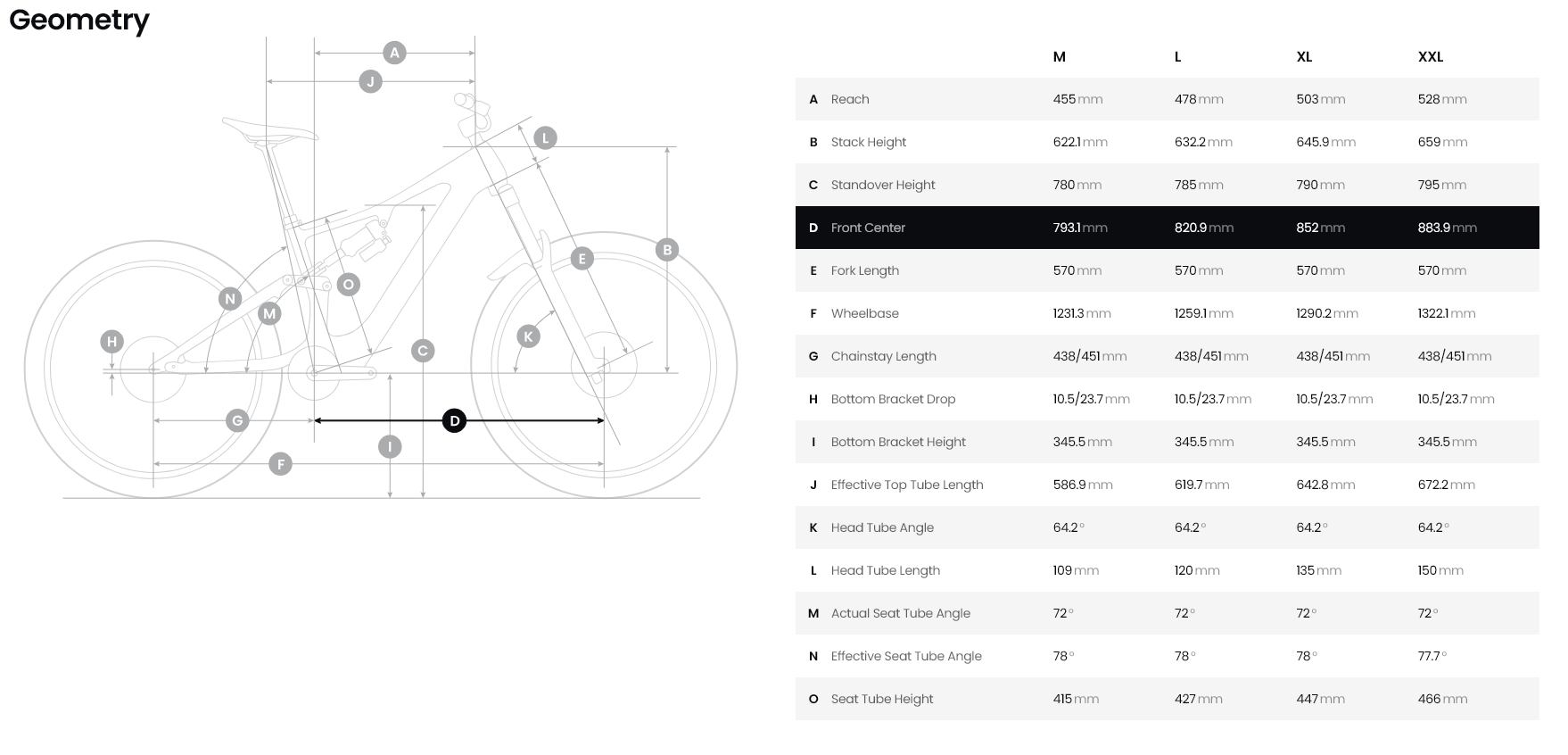

Frame: Amflow PX Carbon Pro Frame, Moonstone Gray, 40 adjustable geometry configurations, compatible with 27.5″ and 29″ rear wheels
Fork: FOX 36 Factory (MY 2027), 160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR adjustment, 15×110mm, 44mm offset

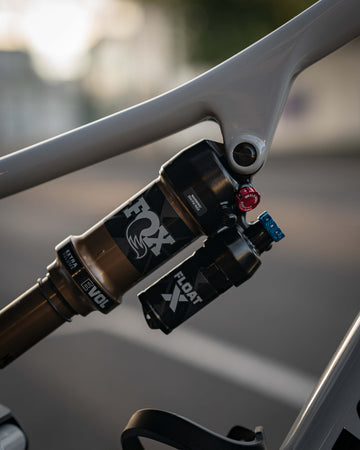

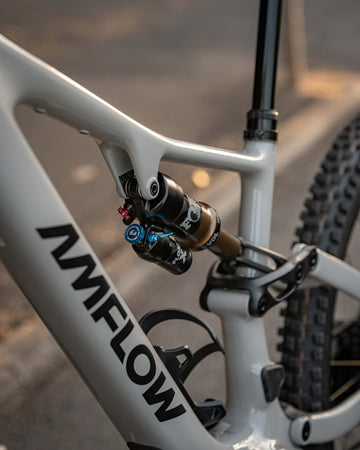

Rear shock: FOX Float X Factory (MY 2027), 2-position lever, custom tune, LSC & LSR adjustment, 210×55mm, air shock

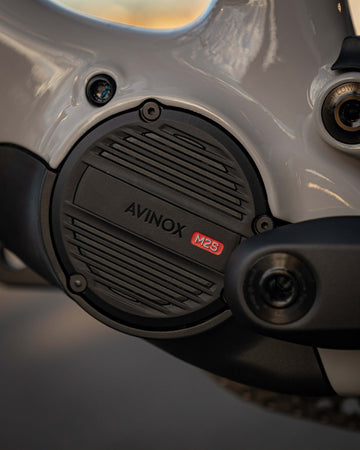

E-bike System
Display: Avinox Screen, 2-inch OLED Control Display
Battery: Avinox Integrated Battery, 700Wh
Controllers: Avinox Wireless Controllers, right and left sides
Charger: Avinox Fast Charger, 12A/508W
Drivertrain and brakes
Rear derailleur: SRAM X0 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring, 38T for Avinox
Shift levers: SRAM AXS Pod Rocker Controller
Cassette: SRAM XS-1295 Eagle Transmission Cassette, 10-52T
Chain: SRAM X0 Eagle Transmission Chain
Power supply: Avinox M2 Series Electronic Rear Derailleur Power Cable
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

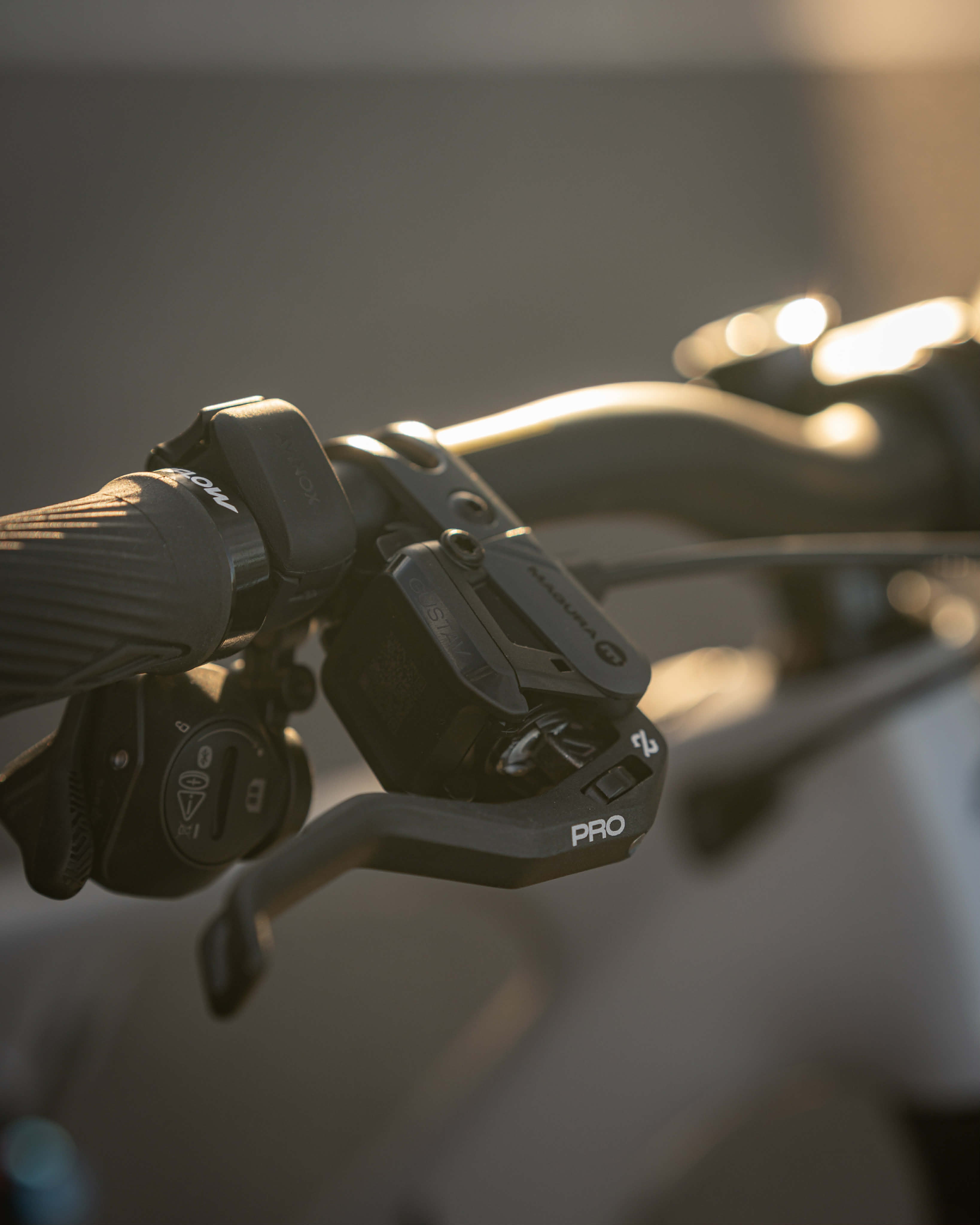

Front brake: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Rear brake: Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Brake rotors: Magura Sensor Rotor (203mm, 2.5mm)
Cockpit
Handlebar: Amflow Enduro Carbon Handlebar, 40mm rise, 800mm width, 35mm diameter, 5-degree upsweep, 9-degree backsweep
Grips: Amflow Enduro Grip 2 Lock-on Grips
Stem: Amflow Mountain Bike Split Stem, 35mm length, 35mm clamping diameter
Wheels
Wheelset: Amflow XMC-30 Mullet Version
Front rim: Carbon, 29″, 30mm inner width, 28H, tubeless ready
Rear rim: Carbon, 27.5″, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front hub: Alloy, 2 sealed bearings, 15×110mm thru-axle, 28H, J-bend, 6-bolt
Rear hub: Alloy, 4 sealed bearings, 12×148mm thru-axle, 32H, J-bend, 6-bolt, 6 pawls 60T, XD
Front tyre: Schwalbe Magic Mary, 29×2.5 Gravity Pro, Radial
Rear tyre: Schwalbe Albert, 27.5×2.5 Gravity Pro, Radial
Other parts
Saddle: Amflow Mountain Saddle Titanium
Dropper post: Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm), M/L frame: 190mm, XL frame: 210mm, XXL frame: 230mm

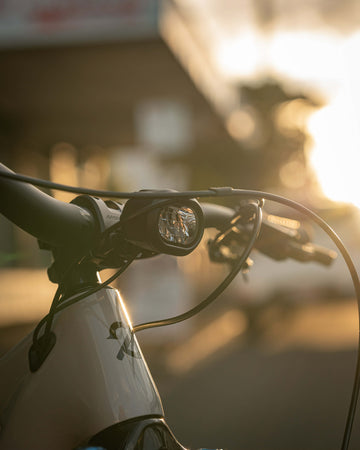

Front light: Avinox Front Light
Rear light: Rear Light
Bottle cage: Amflow Bottle Cage
Geometry systems: Three Geometry Adjustment Systems
Dropper spacers: 5/10mm Dropper Post Travel Reducing Spacer
Torque wrench: Included
Frame protection: Clear Frame Protection Film
Shock pump: Included
Guide: Quick Start Guide
Valve conversion set: Schwalbe Clik Valve Conversion Set
Mud guard: FOX 36 Mud Guard (Short)
