26 Norco Revolver C3 130 - Black -
26 Norco Revolver C3 130 - Black -
26 Norco Revolver C3 130 - Black -
26 Norco Revolver C3 130 - Black -
26 Norco Revolver C3 130 - Black -
26 Norco Revolver C3 130 - Black -
26 Norco Revolver C3 130 - Black -

26 Norco Revolver C3 130 - Black -

#0661115925
$5,599.00
Regular price $5,599.00
Choose an option
Checking stock source...
JS ASK JONNY’S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY NORCO’S WARRANTY
Ride with confidence knowing this product is backed by Norco’s manufacturer warranty. If there’s a defect in materials or workmanship, we’ll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you’re not on your own if something genuine goes wrong. See warranty details

All The Deets

Description

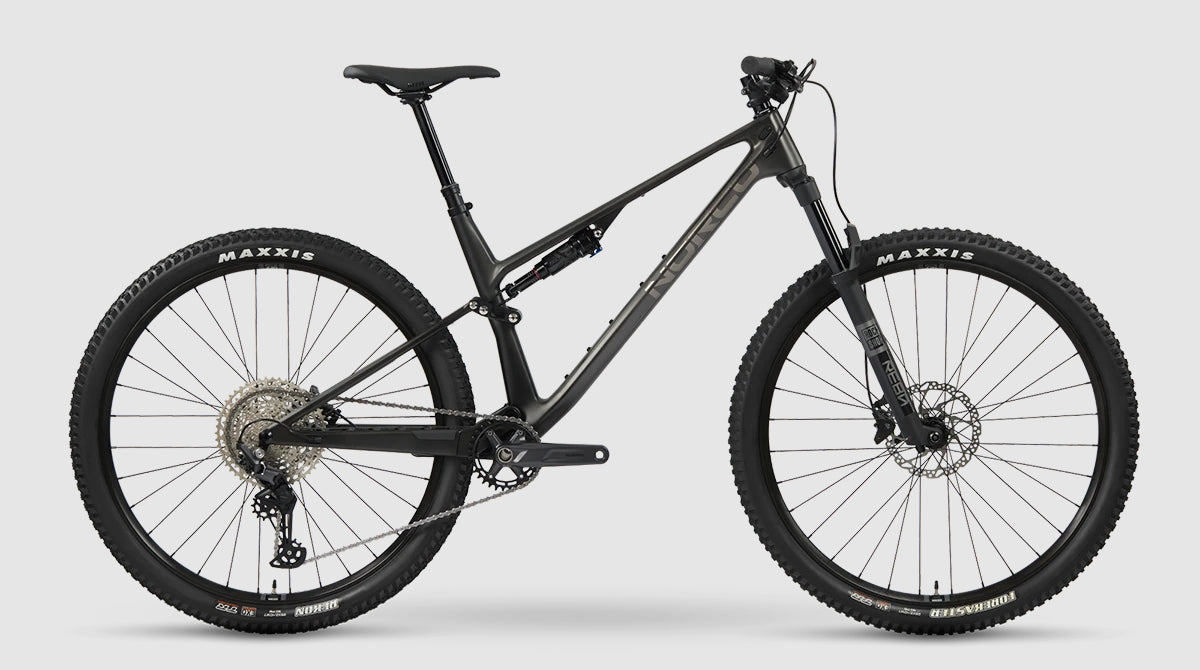

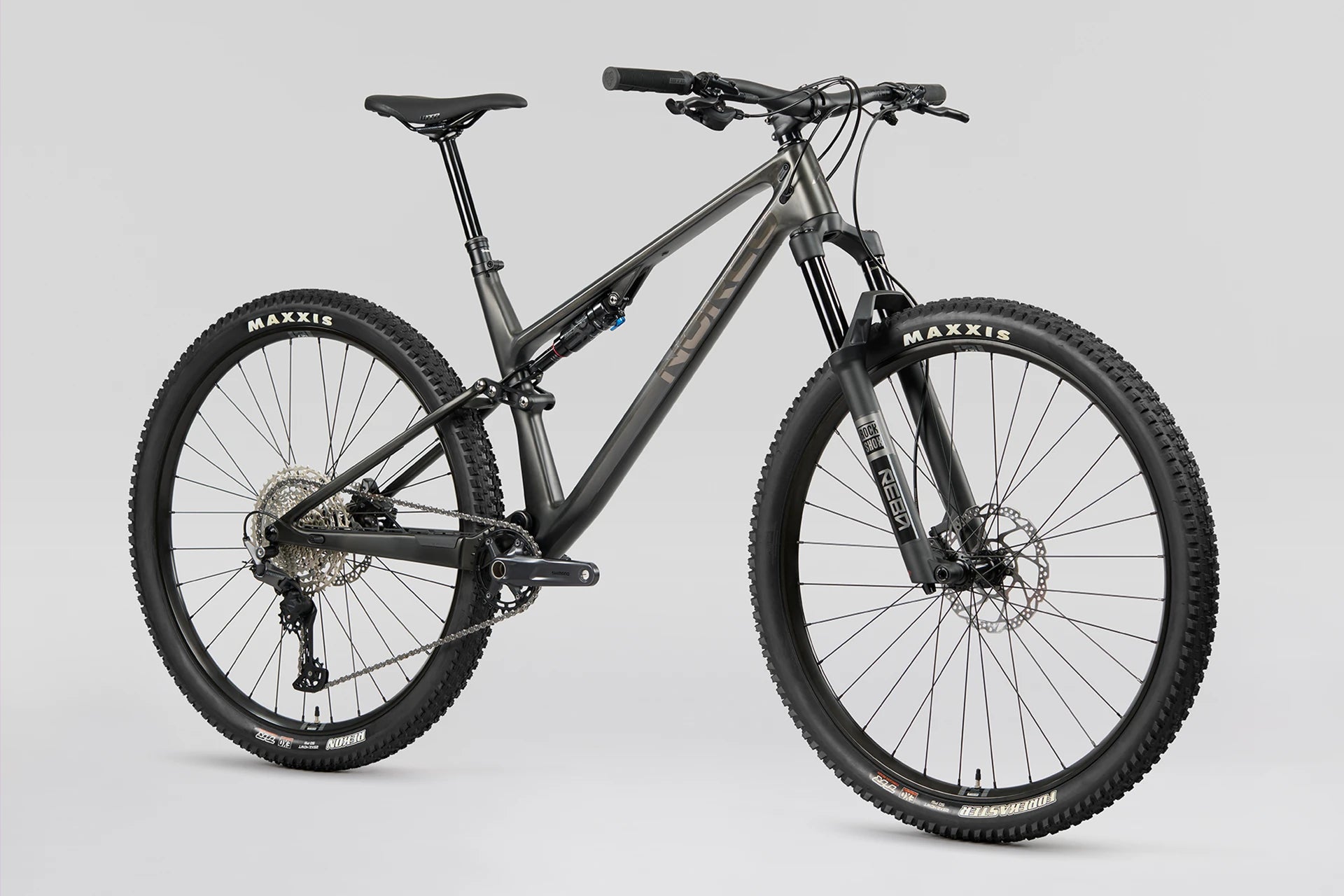

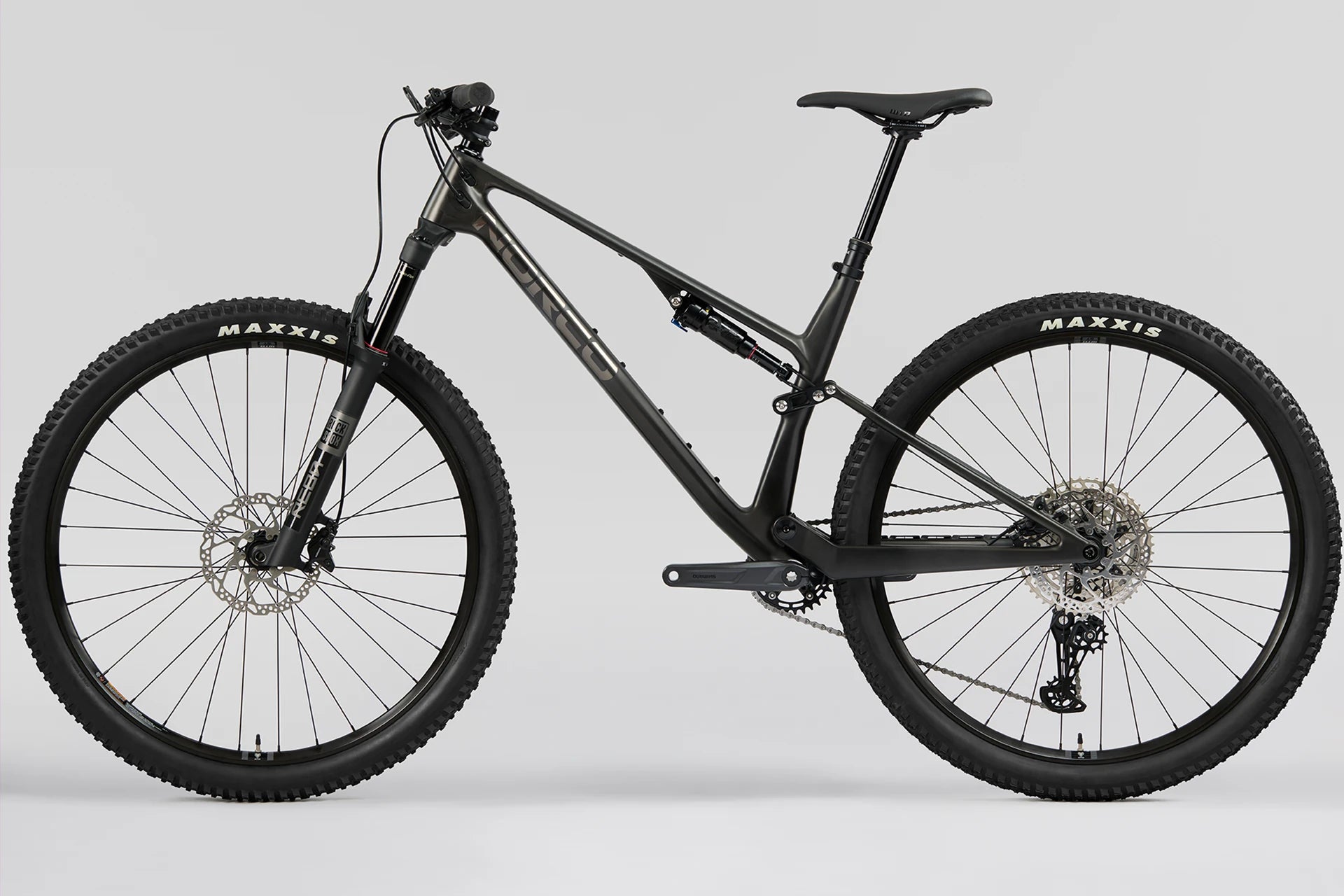

The Revolver C3 130 has 130 mm of travel on the front and 120mm on the rear. With a half-degree slacker head tube angle this bike will go double duty on trail rides as well as spicy XC race days. You'll be amazed at what a 130/120 travel bike can do. Unlock all the secret lines—if you love light, fast, and playful all-day adventures, this one is for you.

Spec

Frame
• Carbon Frame
• 120mm Travel
• UDH Compatible
• Eagle Transmission Compatible
• Ride Aligned™ Design

Suspension

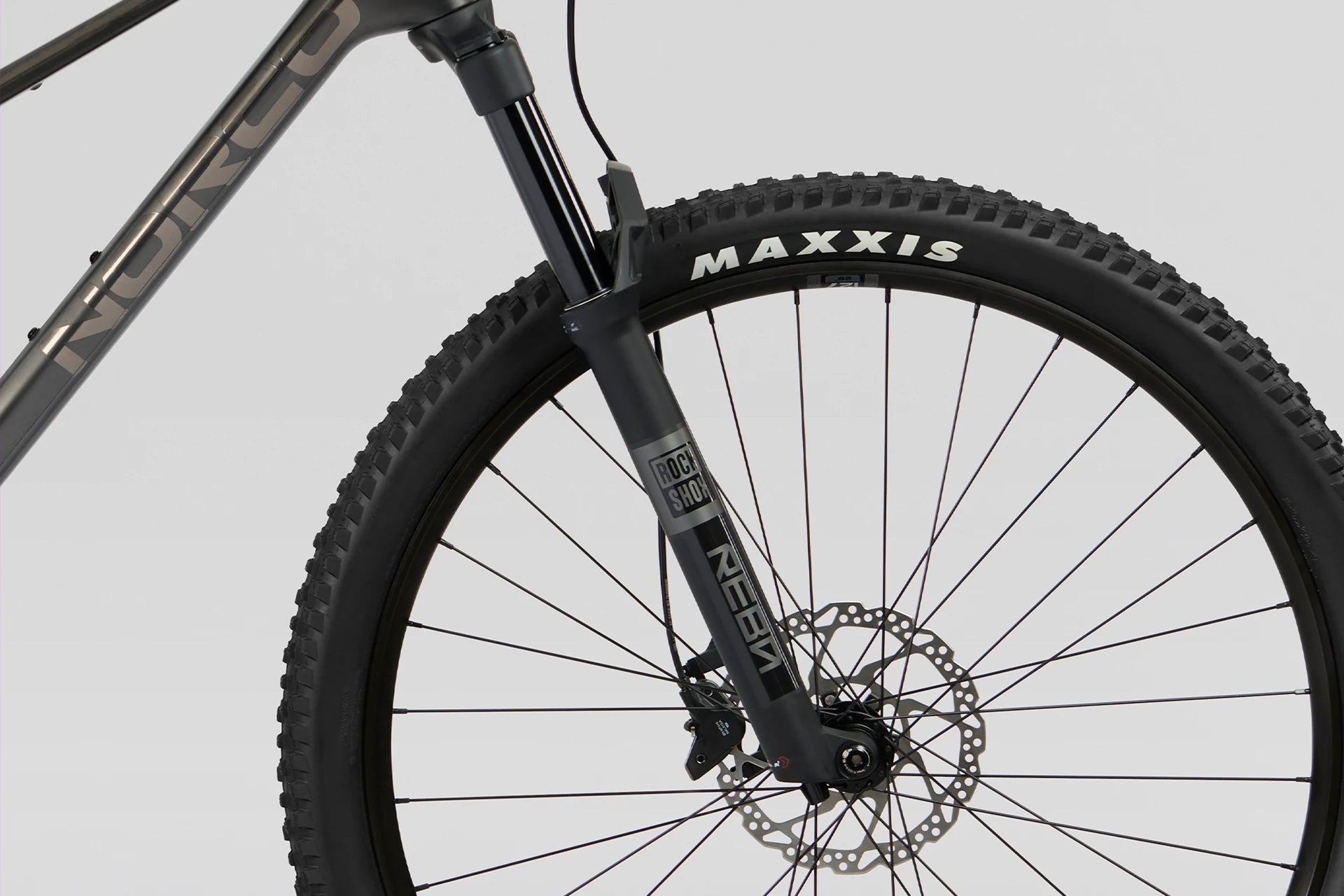

• Fork: RockShox Reba RL
• Motion Control Damper
• 130mm Travel
• 44mm Offset

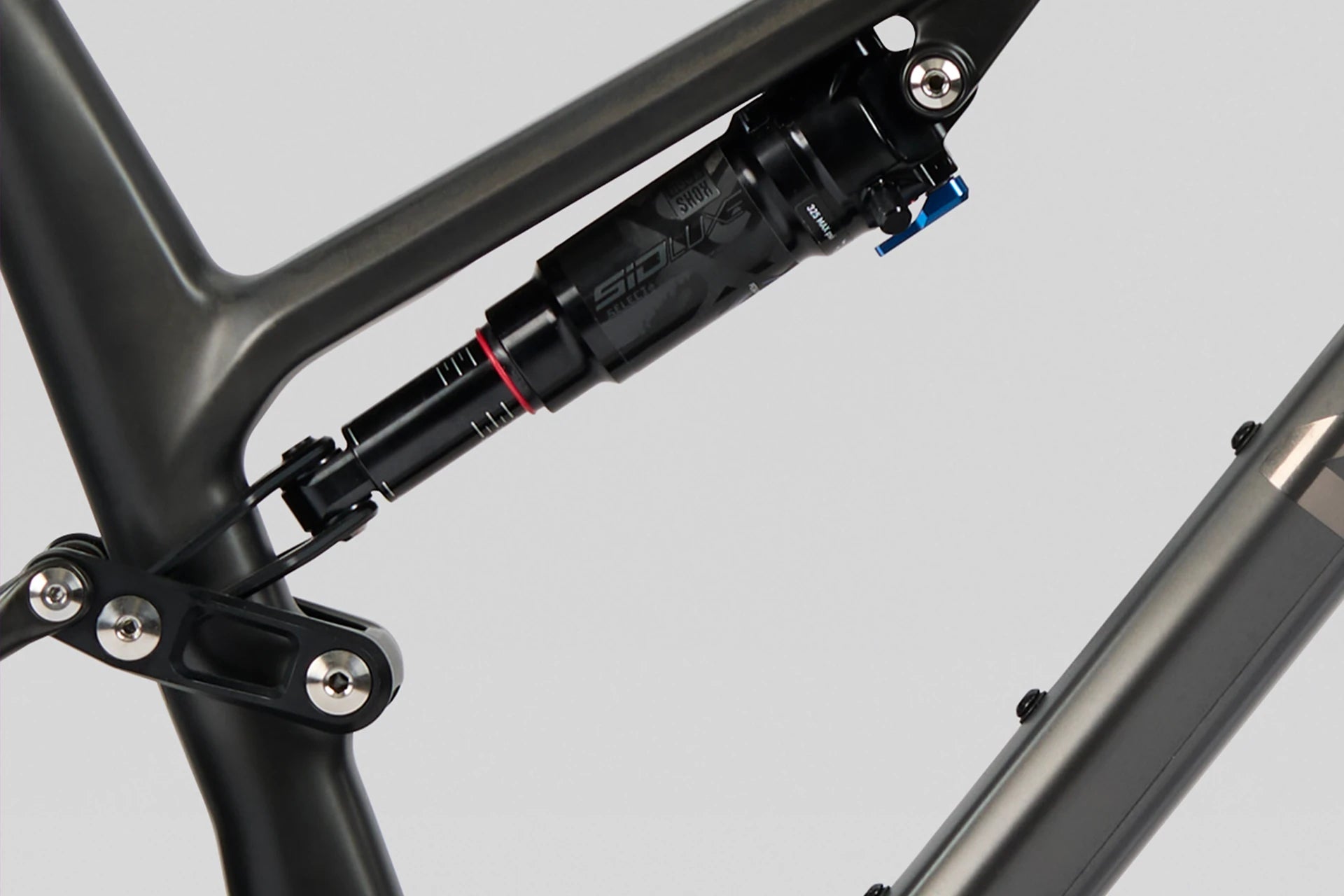

• Rear Shock: RockShox SID Luxe Select+, 190x45

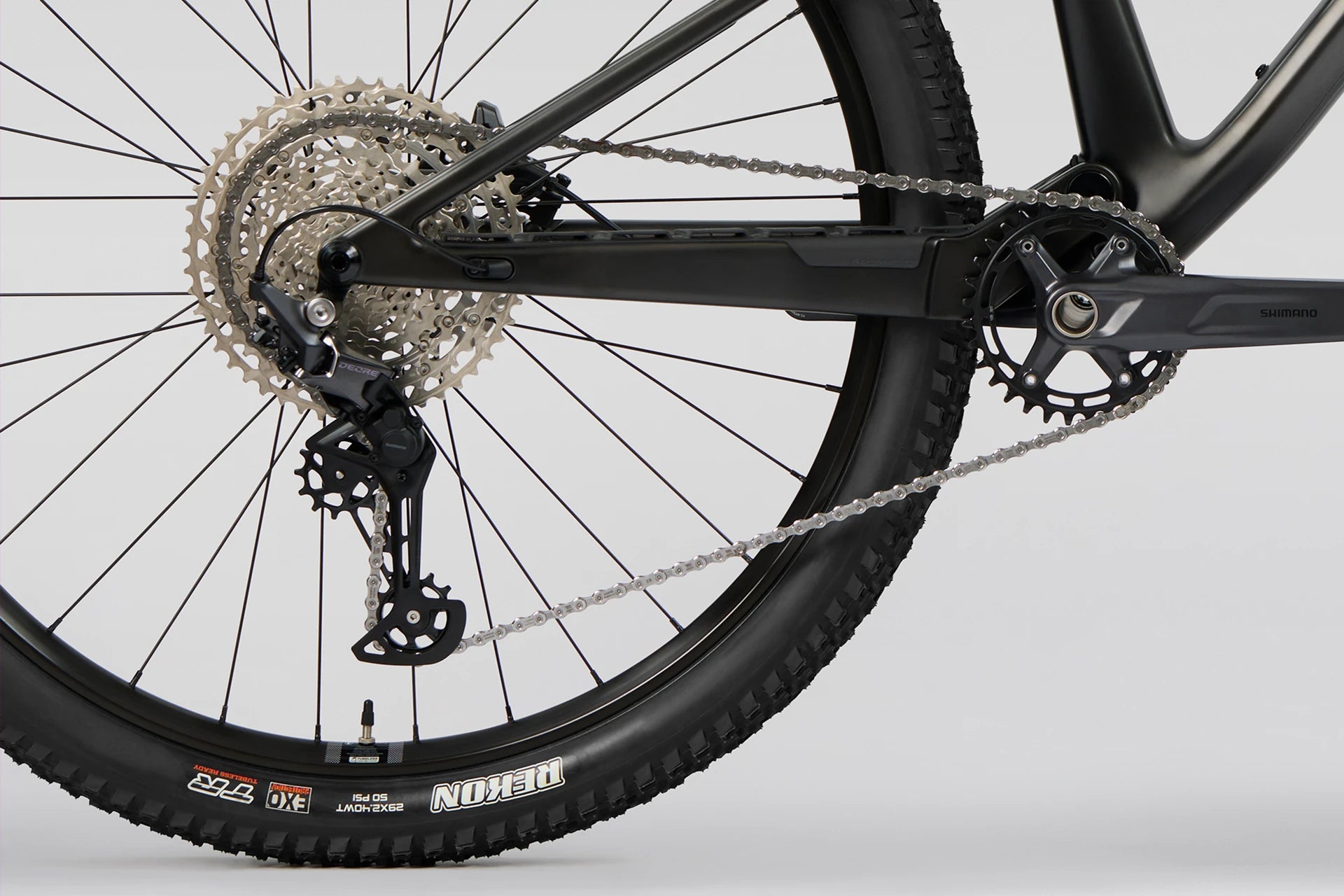

Drivetrain
• Shifter: Shimano Deore SL-M6100, 12spd
• Rear Derailleur: Shimano Deore RD-M6100 SGS, 12spd
• Cassette: Shimano Deore CS-M6100-12, 10–51t
• Chain: Shimano Deore CN-M6100-12, 12spd
• Crankset: Shimano Deore FC-MT512, 32T, CL55
• Crank Lengths:
• S1: 165mm
• S2–S3: 170mm
• S4–S5: 175mm
• Bottom Bracket: Shimano BB-MT501, BSA 73mm

Brakes
• Brakes: Shimano Deore BR-MT410, 2-Piston, Resin Pads
• Brake Levers: Shimano Deore M4100
• Front Rotor: Shimano SM-RT64, 180mm, Center Lock
• Rear Rotor: Shimano SM-RT64, 180mm, Center Lock

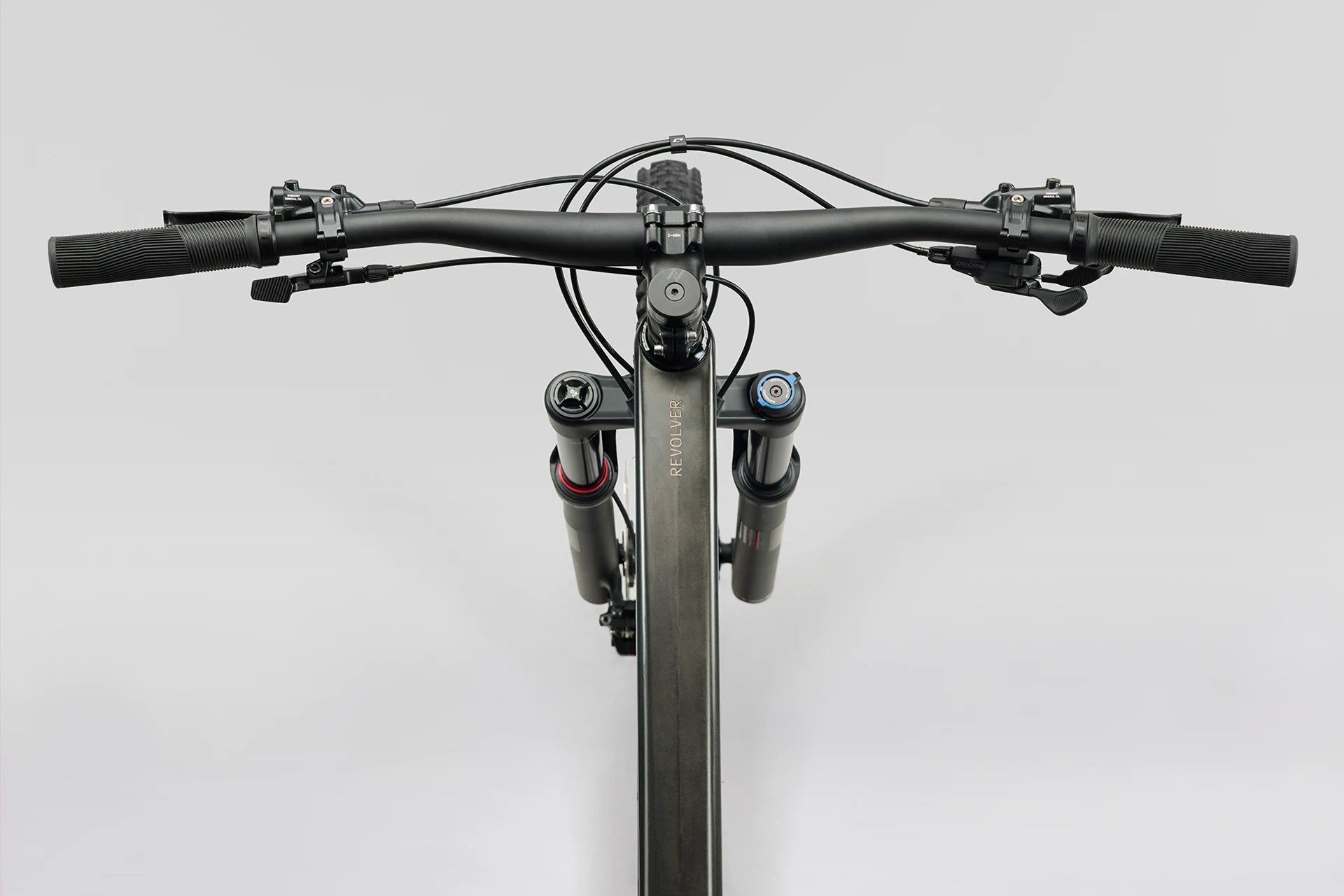

Cockpit
• Handlebar: Norco 6061 Alloy
• Widths:
• S1–S3: 760mm
• S4–S5: 780mm
• Rise: 20mm
• Stem: Norco 6061, 50mm, 35mm Clamp
• Grips: WTB Wavelength
• Headset: FSA No.42/48ACB Integrated Headset
• Tapered 1-1/8"–1.5"

Seating
• Saddle: WTB Silverado Medium
• Seatpost: TranzX YSI36, 31.6
• Dropper Travel:
• S1–S2: 120mm
• S3: 150mm
• S4: 170mm
• S5: 200mm
• Seat Clamp: Norco Bolted Clamp, 34.9mm ID

Wheels
• Rims: WTB ST i27 TCS, 27mm ID, 32h, 29"
• Front Hub: Shimano Deore HB-MT410, 15x110 Boost, Center Lock, 32h
• Rear Hub: Shimano Deore FH-MT510, 12x148 Boost, MicroSpline, Center Lock, 32h
• Rear Axle: 148x12 TA, L174, TL13, M12x1.6
• Spokes: Stainless Steel
• Tubeless Valves: WTB Tubeless Valves
• Sealant: Stan’s 250ml
• Front Tire: Maxxis Forekaster 29x2.4 EXO TR
• Rear Tire: Maxxis Rekon 29x2.4 EXO TR
