The Revolver C2 130 has 130 mm of travel on the front and 120mm on the rear. With a half-degree slacker head tube angle this bike will go double duty on trail rides as well as spicy XC race days. You'll be amazed at what a 130/120 travel bike can do. Unlock all the secret lines—if you love light, fast, and playful all-day adventures, this one is for you.
Specs
Frame Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

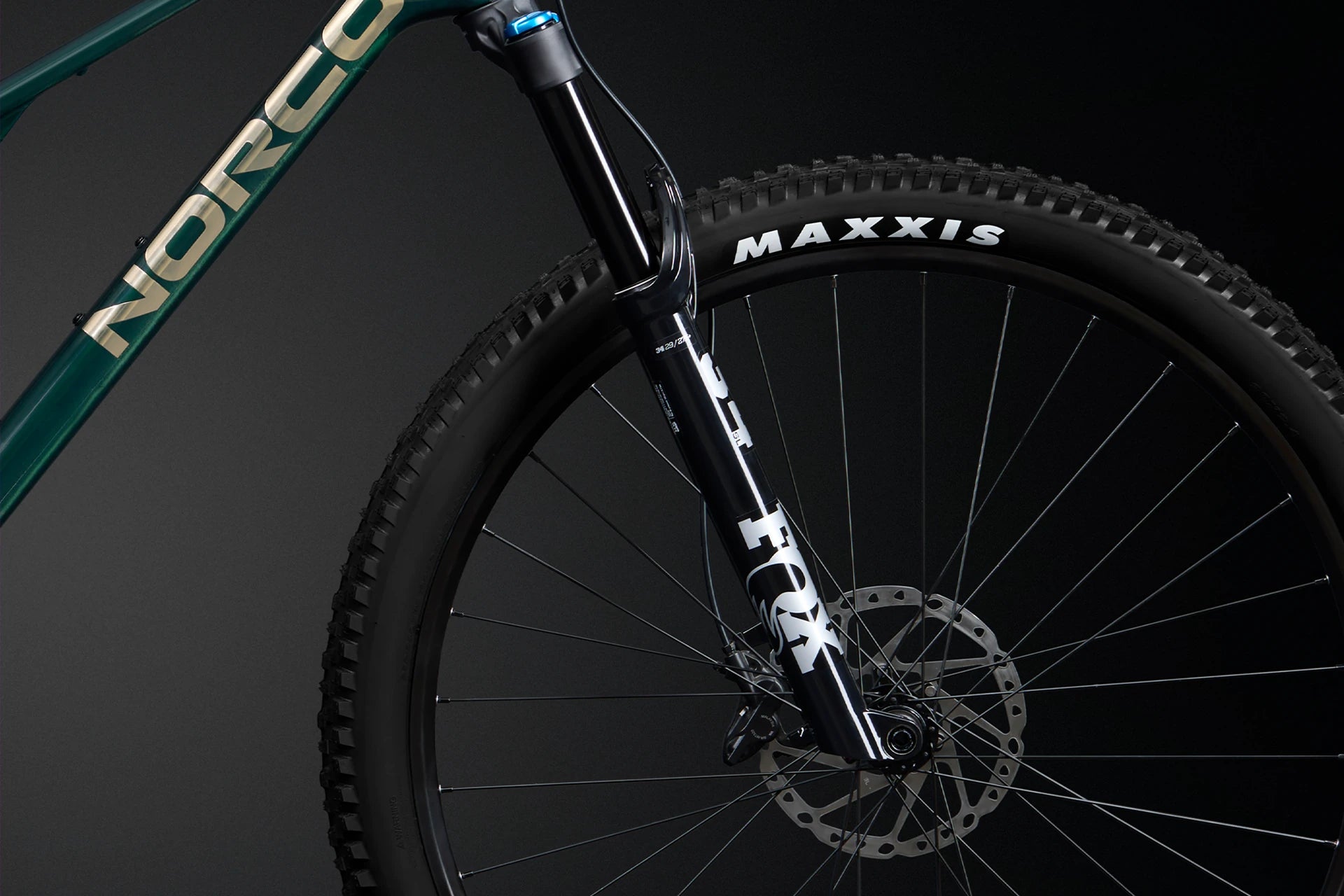

Fork Fox 34SL Performance Float, Grip 2, 130mm, 44mm offset

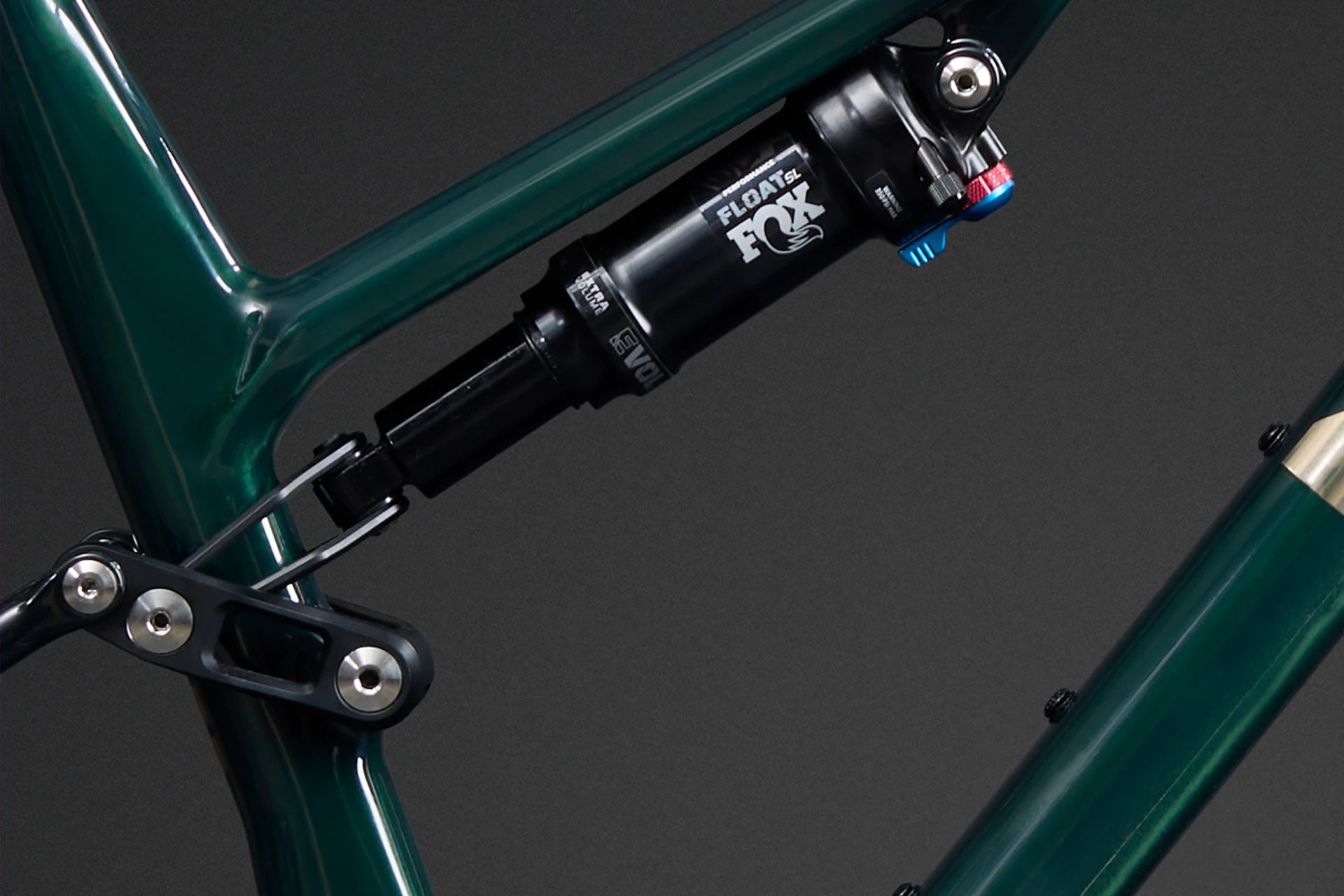

Rear Shock Fox Float SL Performance, 190x45mm, standard
Rear Shifter Shimano Deore XT Di2 SW-M8250-IR, 12sp

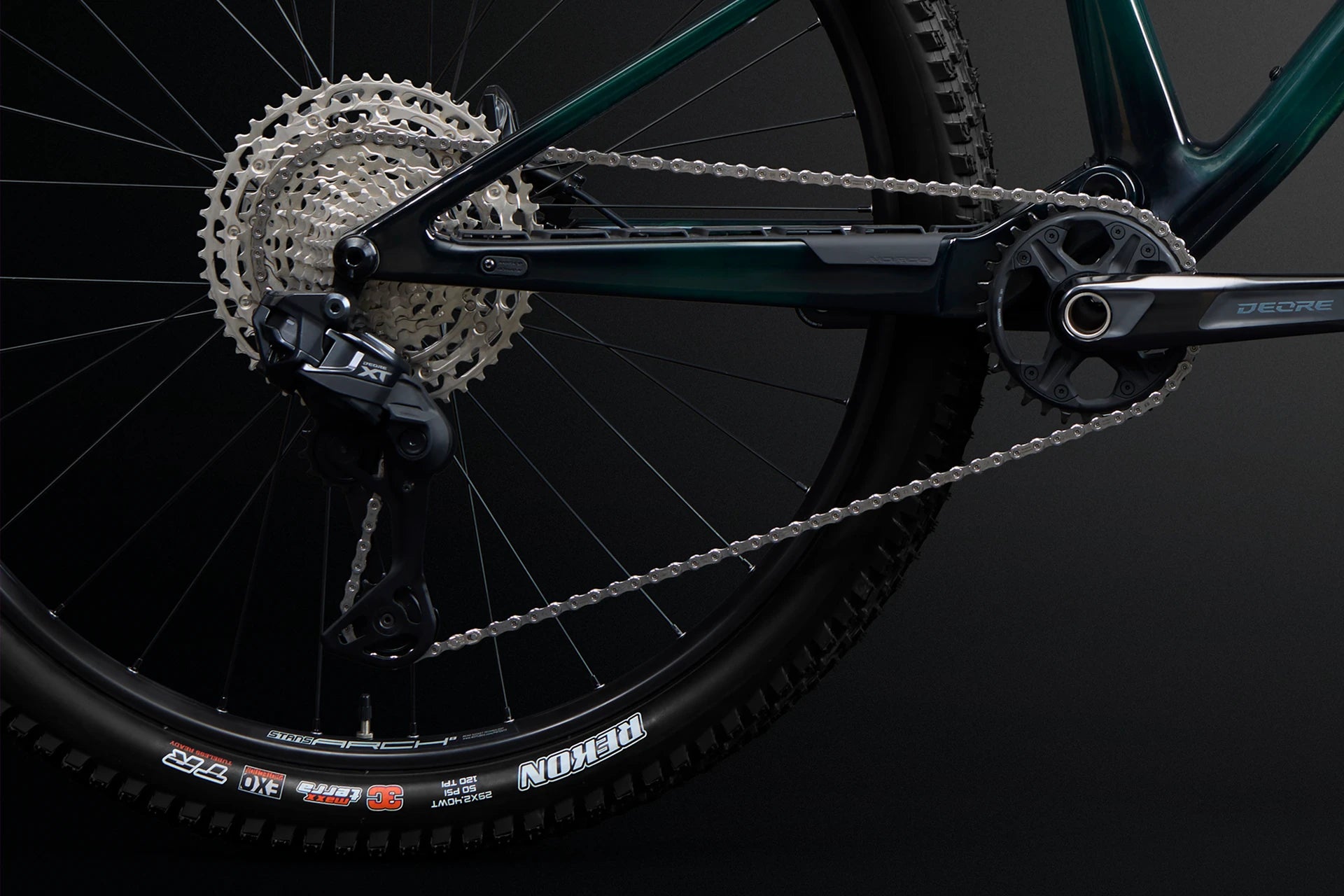

Rear Derailleur Shimano Deore XT Di2 RD-M8250, 12sp, SGS
Crankset Shimano Deore FC-M6120, 32T, CL55, 165mm (S1) 170mm (S2,S3) 175mm (S4,S5)
Bottom Bracket Shimano BB-MT501, BSA 73mm
Cassette Shimano Deore CS-M6100-12, 10-51T, 12sp
Chain Shimano Deore CN-M6100-12, 12sp
Front Brake Shimano Deore MT520, 4-Piston, Metallic Pads
Front Brake Rotor Shimano SM-RT64, 180mm, C-lock
Rear Brake Shimano Deore MT520, 4-Piston, Metallic Pads
Rear Brake Rotor Shimano SM-RT64, 180mm, C-lock
Brake Levers Shimano Deore MT501

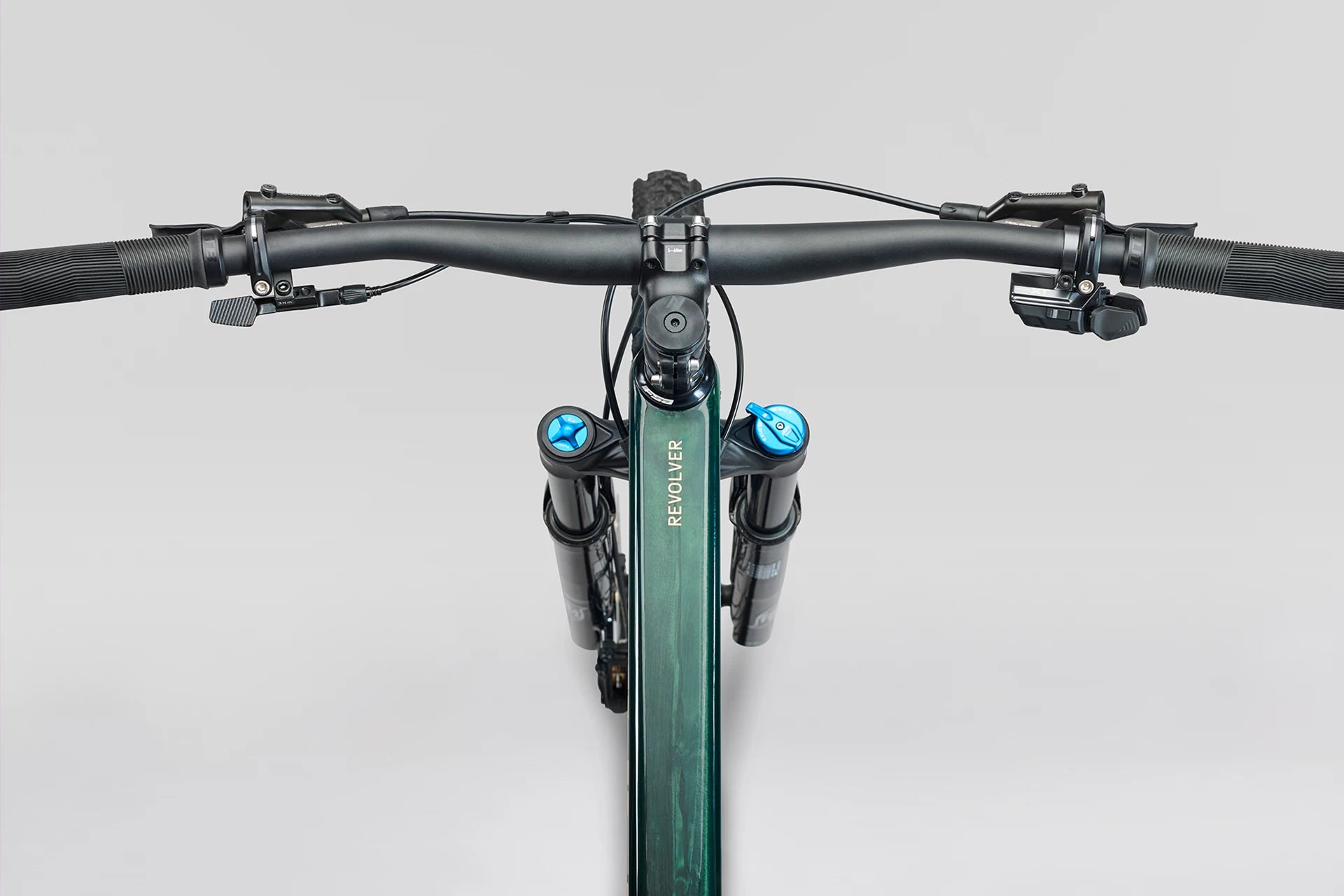

Handlebar Norco 6061, 760 (S1,S2,S3) 780mm (S4,S5), 20mm rise
Stem Norco 6061, 50mm, 35mm Clamp
Seatpost TranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) - 200mm (S5)
Headset FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5"
Saddle WTB Silverado Medium
Grips WTB Wavelength
Seatpost Clamp Norco bolted, 34.9mm ID
Front Hub Shimano Deore HB-TC500, 15x110mm Boost, 32H, C-lock
Rear Hub Shimano Deore FH-TC500, 12x148 Boost, Micro Spline, 32H, C-lock
Rims Stans Arch D, 28mm ID, 32H, 29"
Front Tire Maxxis Forekaster, 3C MaxxTerra EXO, 29x2.40"
Rear Tire Maxxis Rekon, 3C MaxxTerra EXO, 29x2.40"
Rear Hub Skewer 148mm x 12mm TA, L174, TL13, M12x1.4
Spokes/Nipples Stainless steel
Valves Stans tubeless valves
Sealant Stans 250ml sealant
