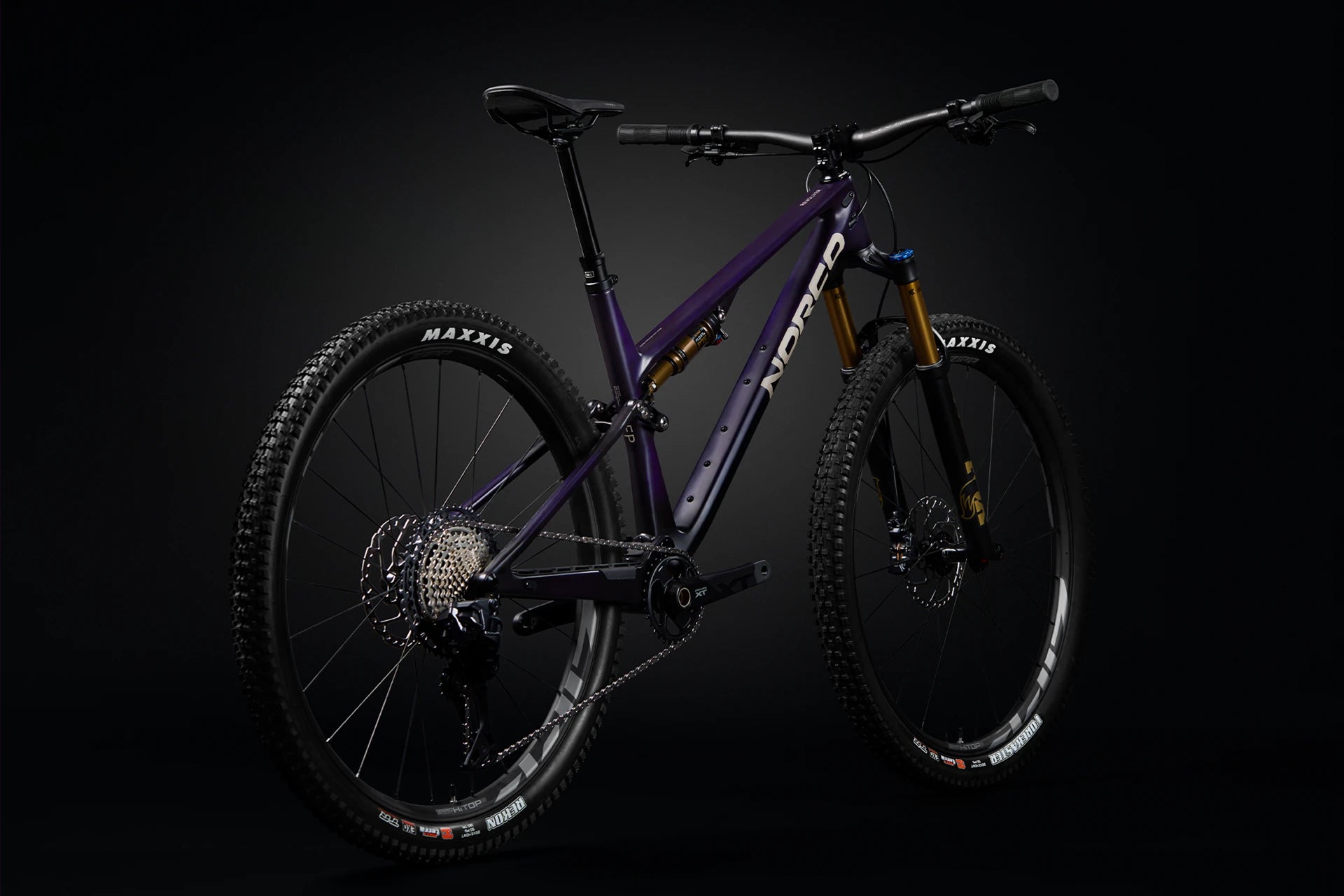

The Revolver C1 130 has 130 mm of travel on the front and 120mm on the rear. With a half-degree slacker head tube angle this bike will go double duty on trail rides as well as spicy XC race days. You'll be amazed at what a 130/120 travel bike can do. Unlock all the secret lines—if you love light, fast, and playful all-day adventures, this one is for you.
Specs
Frame Carbon Frame, 120mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

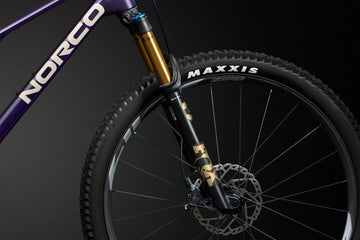

Fork Fox 34SL Factory Float, Grip X, 3 pos Lever HSC/LSC/LSR, 130mm, 44mm offset

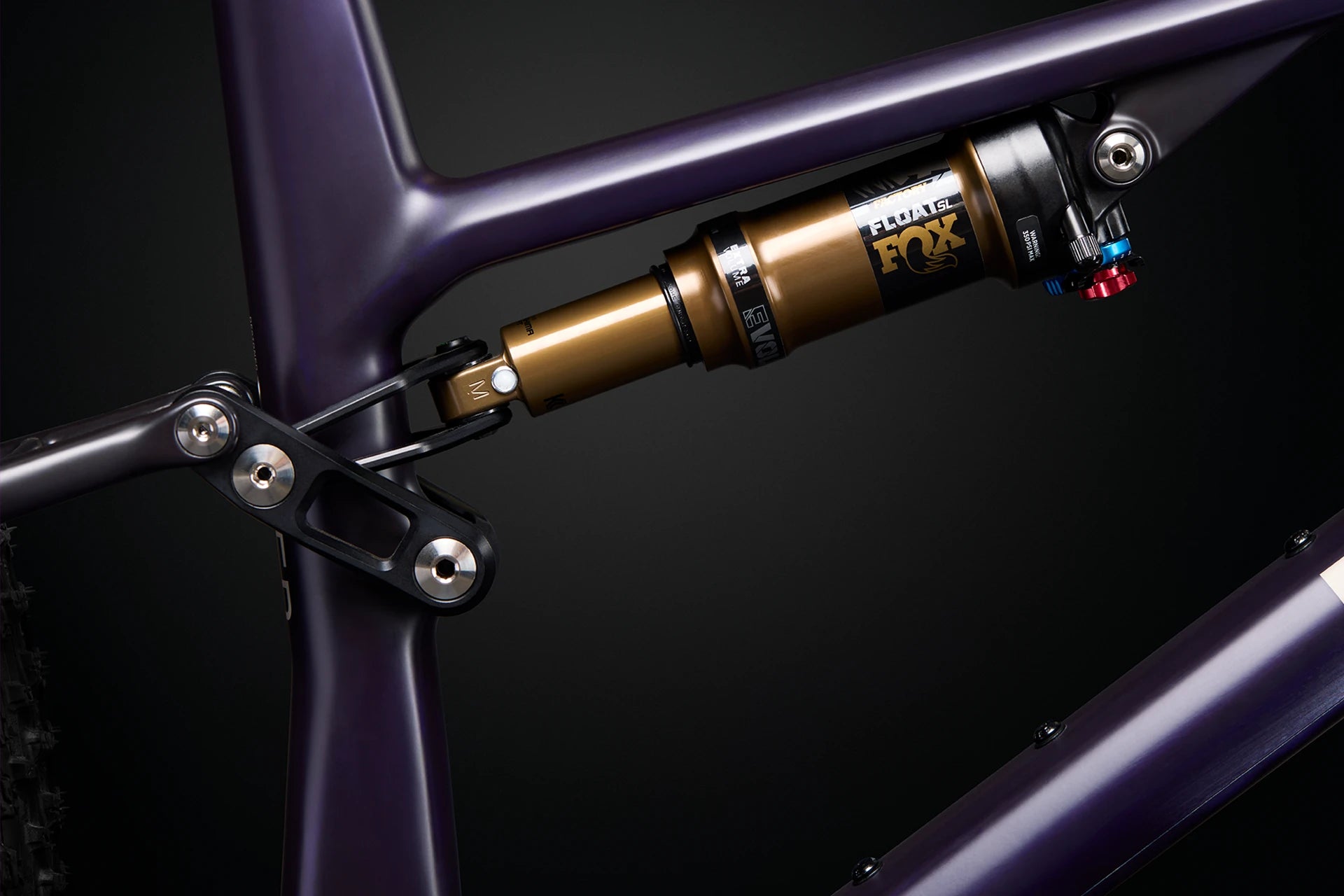

Rear Shock Fox Factory Float SL, 190x45mm, standard
Rear Shifter Shimano Deore XT Di2 SW-M8250-IR, 12sp

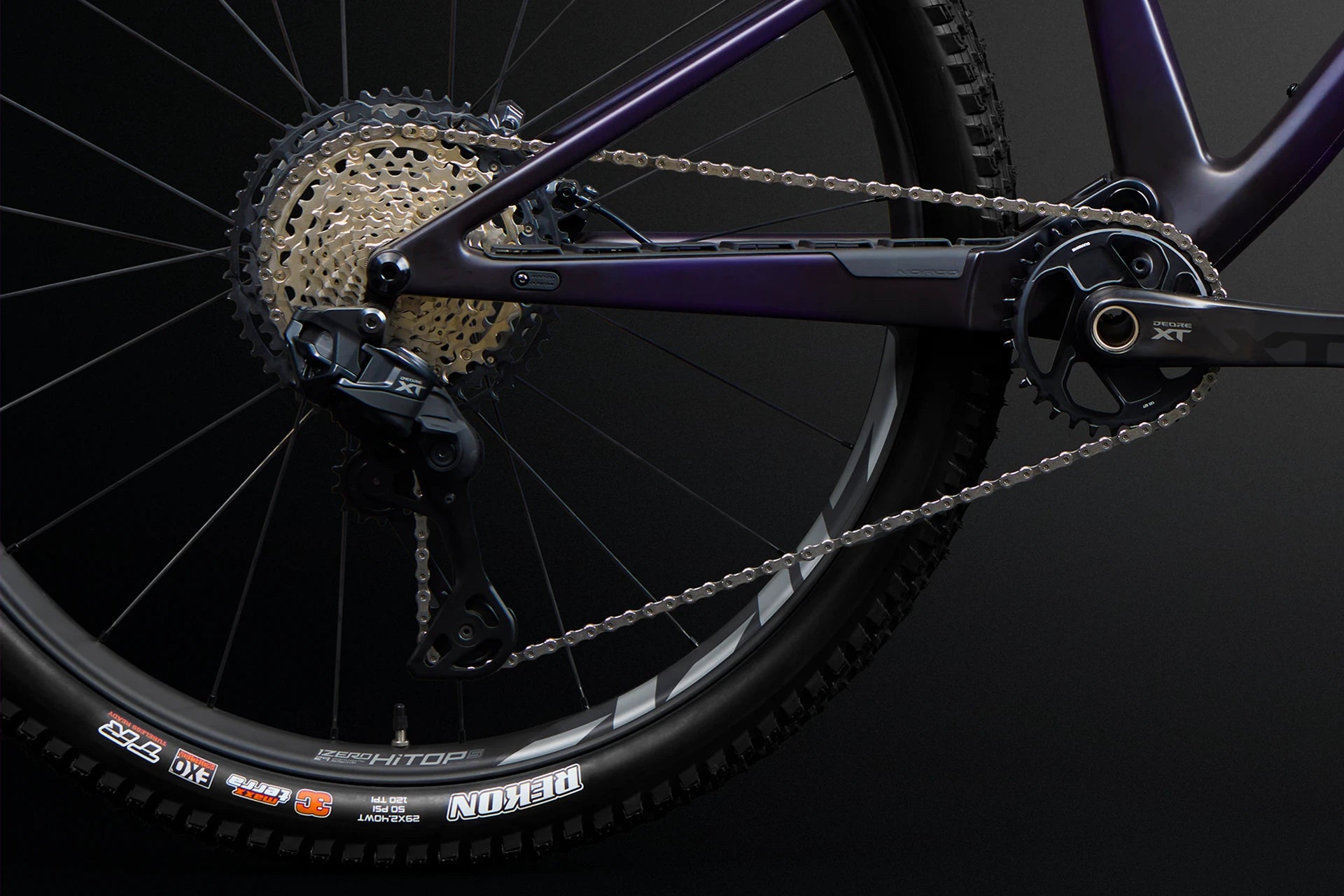

Rear Derailleur Shimano Deore XT Di2 RD-M8250, 12sp, SGS
Crankset Shimano Deore XT FC-M8200, 32T, CL55, 165mm (S1), 170mm (S2,S3), 175 (S4,S5)
Bottom Bracket Shimano BB-MT501, BSA 73mm
Cassette Shimano Deore XT CS-M8200-12, 10-51T, 12sp
Chain Shimano Deore XT CN-M8100, 12sp
Front Brake Shimano Deore XT BL-M8200, Metallic pads
Front Brake Rotor Shimano SM-RT66, 180mm, 6-bolt
Rear Brake Shimano Deore XT BL-M8200, Metallic pads
Rear Brake Rotor Shimano SM-RT66, 180mm, 6-bolt
Brake Levers Shimano Deore XT BL-M8220

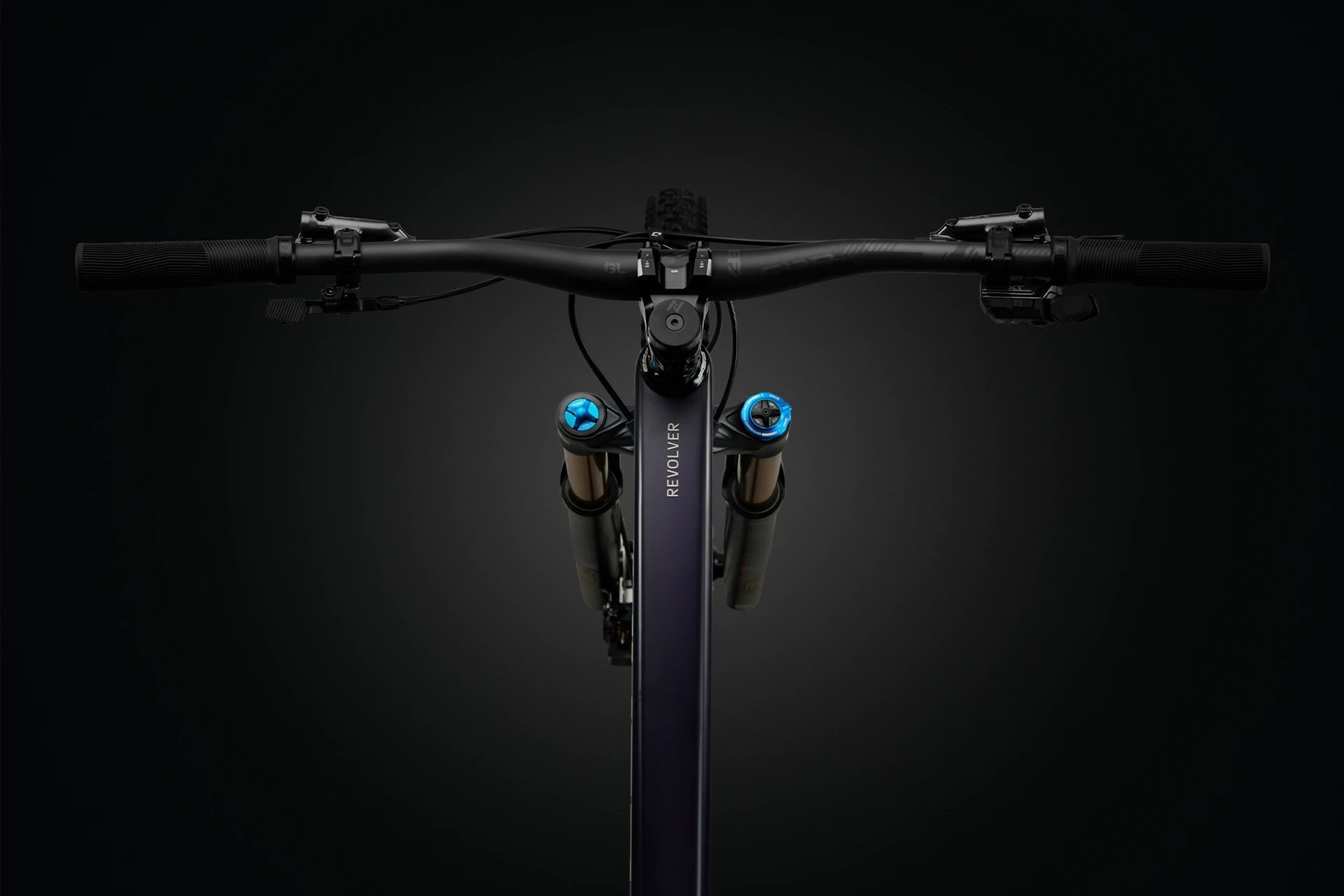

Handlebar Race Face ERA35, 760mm (S1,S2,S3) / 780 (S4,S5), 20mm rise
Stem Alloy CNC, 50mm Length, 35mm Clamp
Seatpost TranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) - 200mm (S5)
Headset FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5"
Saddle Fizik Terra Ridon MG Rail
Grips WTB Wavelength
Seatpost Clamp Norco Alloy Nutted Clamp, 34.9mm ID
Front Hub Zipp 1Zero Hitop S, 15x110mm Boost, 6-bolt
Rear Hub Zipp 1Zero Hitop S, 12x148mm Boost, Microspline, 6-bolt
Rims Zipp 1Zero Hitop S Carbon, 30mm ID, 29"
Front Tire Maxxis New Forekaster, 3C Maxx Terra EXO, 29x2.40"
Rear Tire Maxxis Rekon, 3C Maxx Terra EXO, 29x2.40"
Spokes/Nipples CX-Sprint
Valves Zipp tubeless valves
Sealant Stans 250ml sealant
