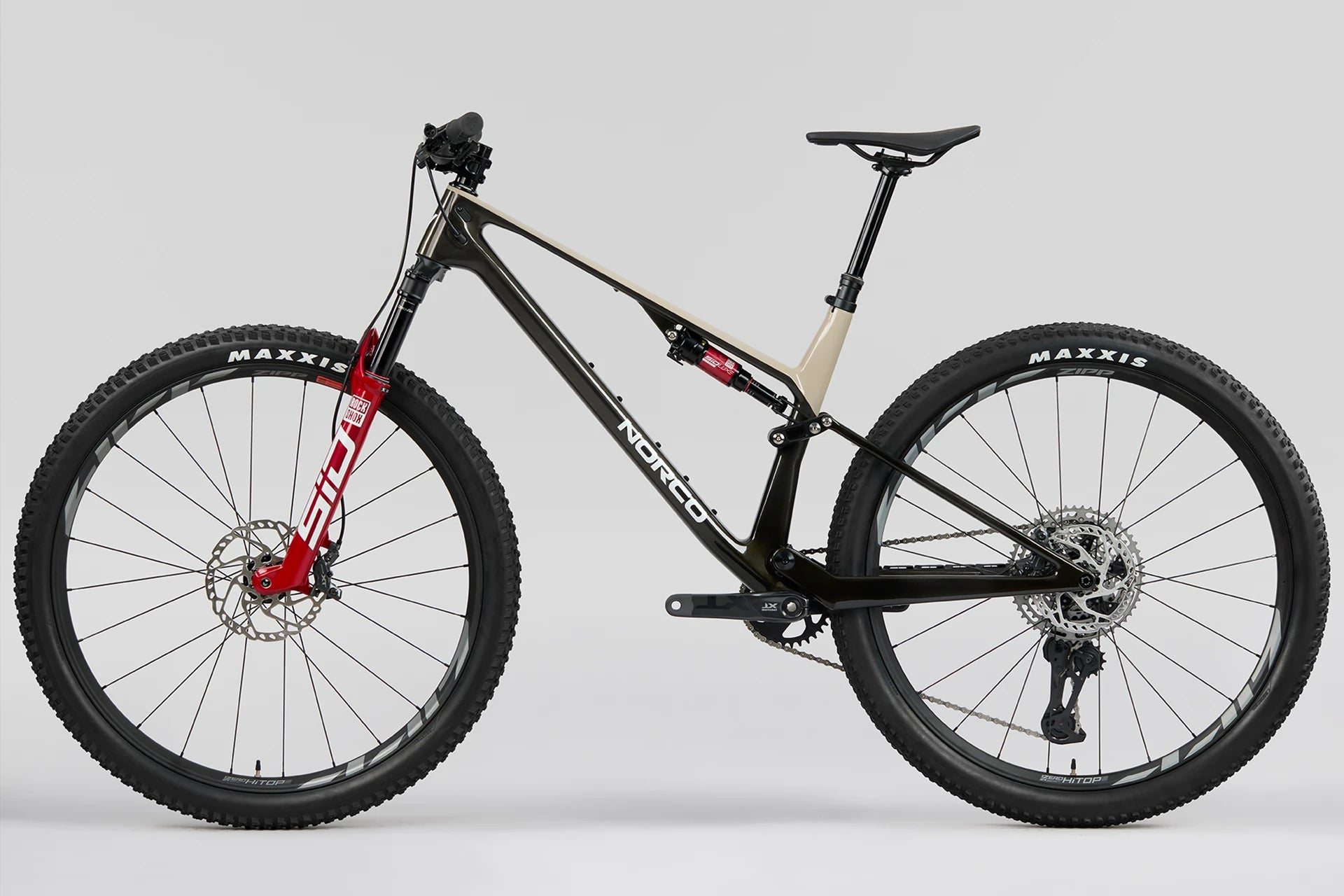

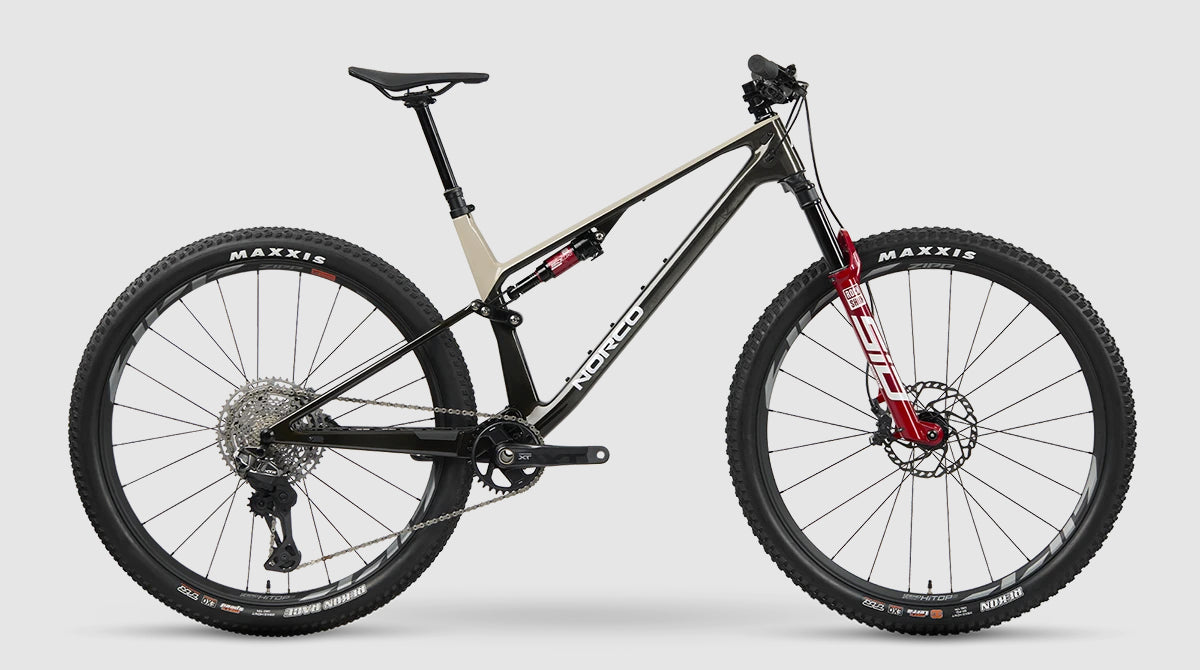

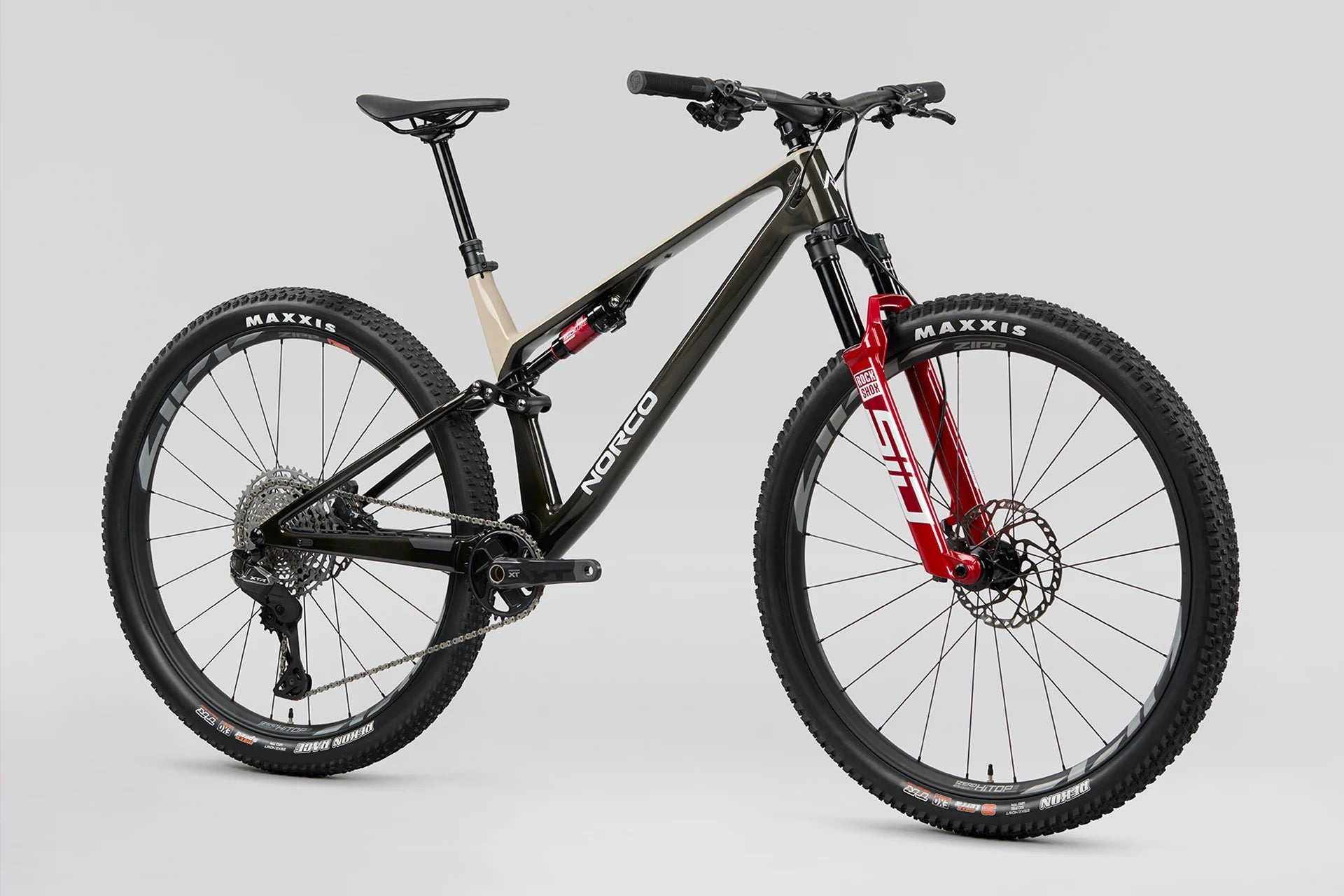

Revolver C1 120 sets the bar for what a Cross-Country bike can do. With 120 mm of front travel and 115 mm at the rear, it's fast, efficient, and capable.
Quick and snappy on acceleration, whether you're going up or ready to rip down, its suspension performance is well beyond what you can expect from a shorter travel bike. Head out for epic days, attack climbs, and crush descents, while cruising through the singletrack; it's the best choice for stage races or all-day adventures.
Specs
Frame Carbon Frame, 115mm Travel, UDH, Eagle Transmission Compatible, Ride Aligned™

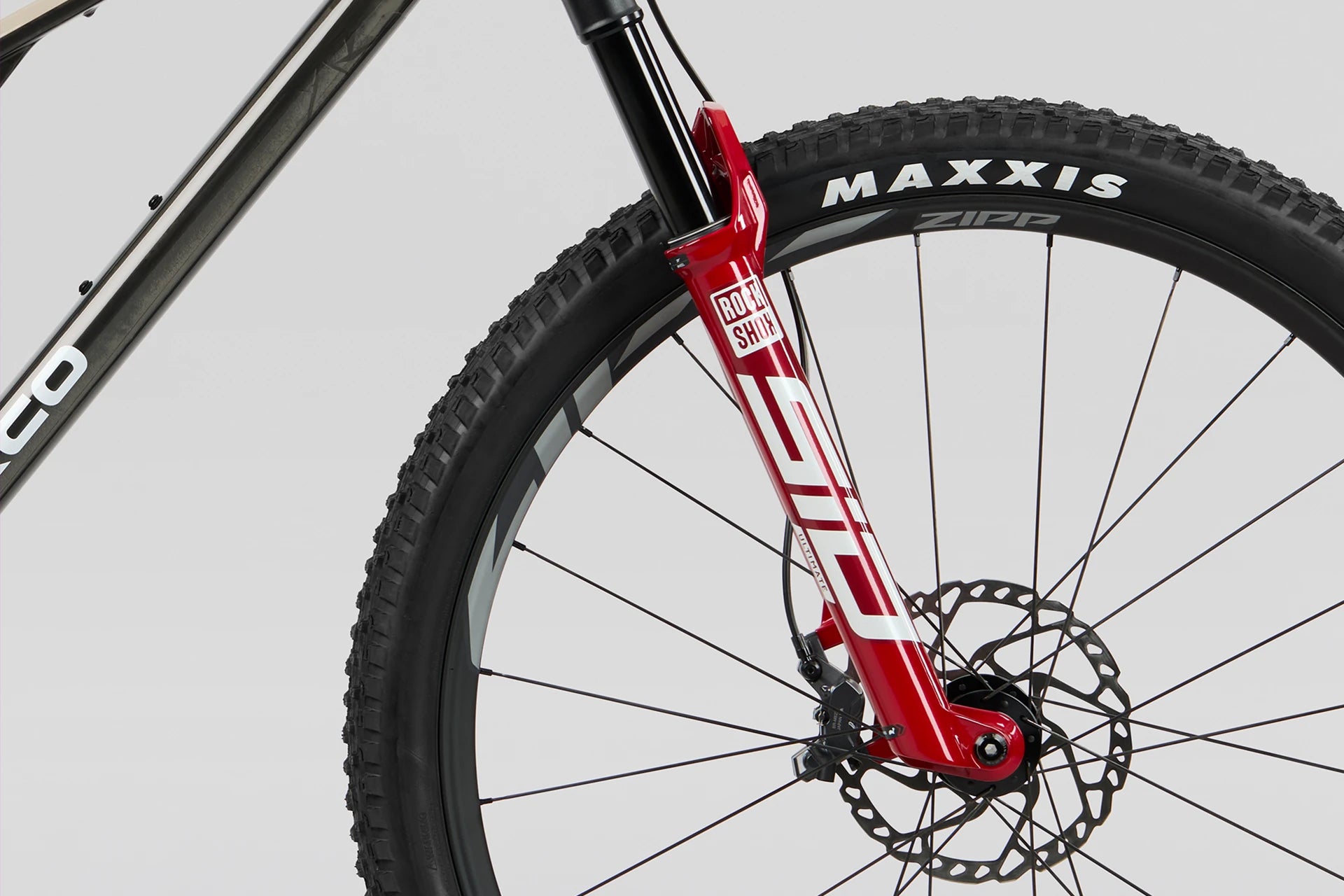

Fork Rockshox Sid Ultimate 3P, 120mm, 44mm offset

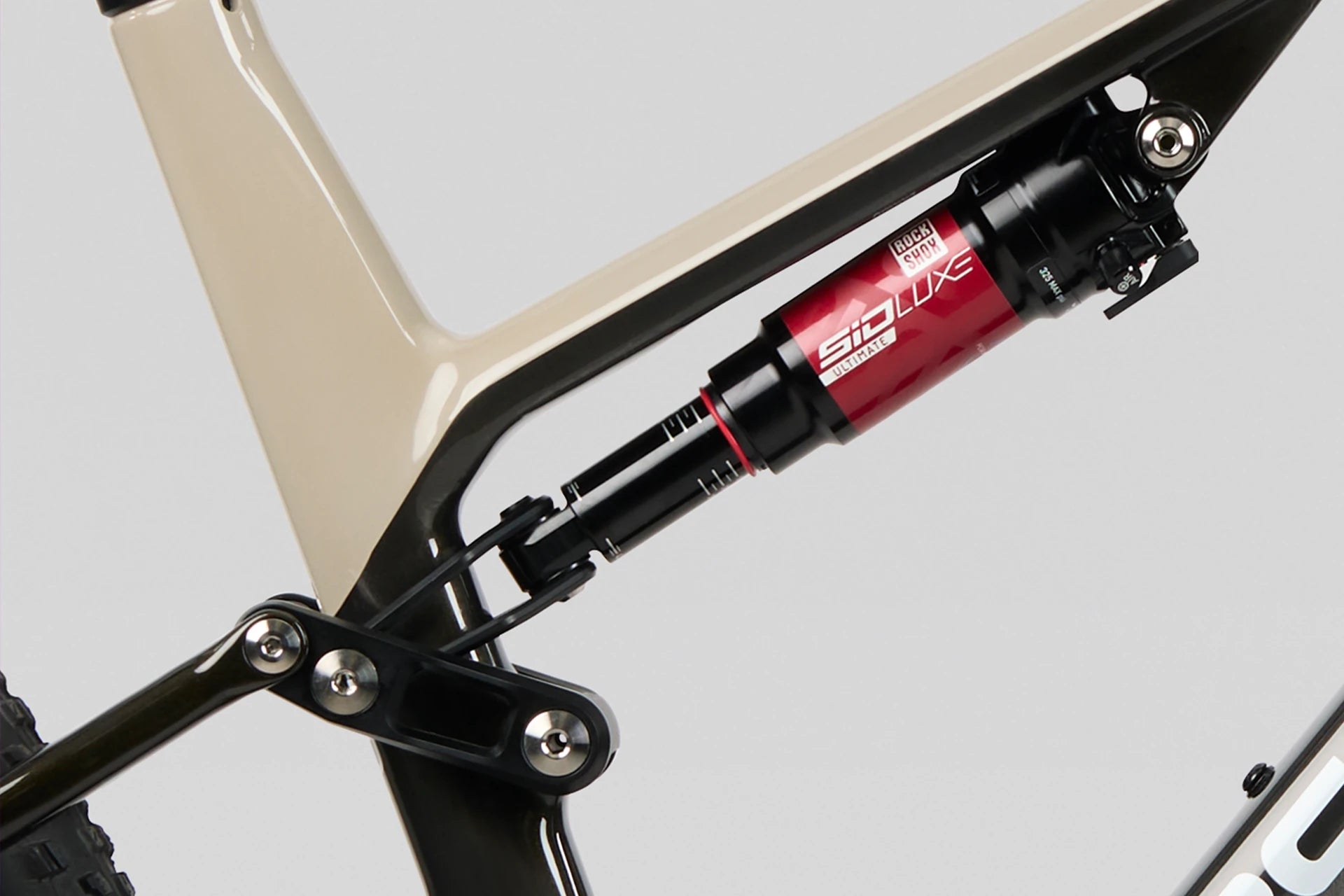

Rear Shock Rockshox SIDLuxe Ultimate, 190x42.5mm, standard
Rear Shifter Shimano XTR SW-M9250-IR, I-spec
Rear Derailleur Shimano XTR RD-9250 Di2, 12sp, SGS
Crankset Shimano Deore XT FC-M8200, 34T, CL55, 165mm (S1), 170mm (S2,S3) 175mm (S4,S5)
Bottom Bracket Shimano BB-MT501, BSA 73mm
Cassette Shimano XTR CS-M9200-12, 10-51T, 12sp
Chain Shimano XTR CN-M9100, 12sp
Front Brake Shimano Deore XT BR-M8220, Metal pads
Front Brake Rotor Shimano SM-RT66, 180mm, 6-bolt
Rear Brake Shimano Deore XT BR-M8220, Metal pads
Rear Brake Rotor Shimano SM-RT66, 160mm, 6-bolt
Brake Levers Shimano Deore XT BL-M8220

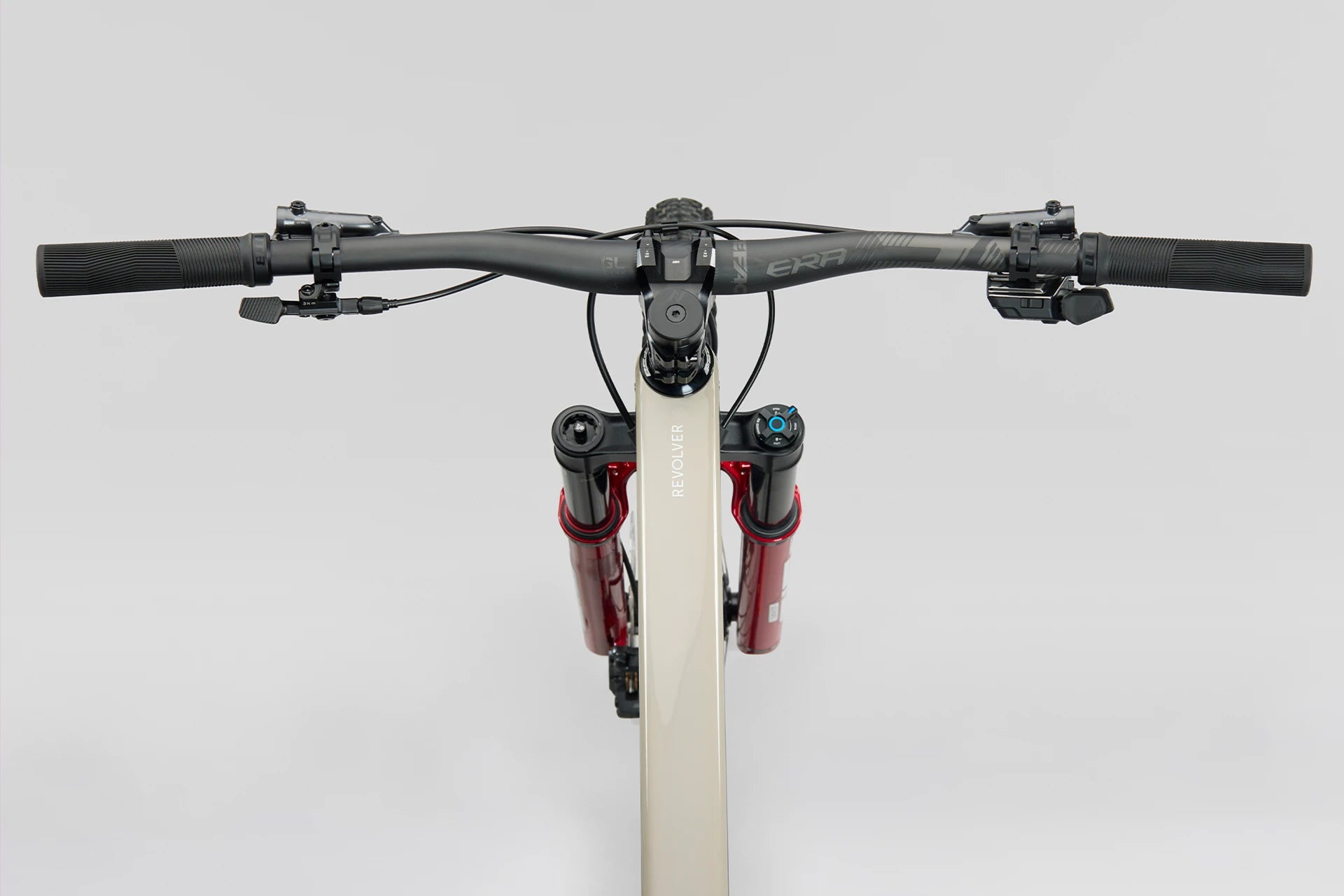

Handlebar Race Face ERA35, 760mm (S1,S2) / 780 (S3,S4,S5), 20mm rise
Stem Alloy CNC, 50mm Length, 35mm Clamp
Seatpost TranzX YSI36, 31.6mm, 120mm (S1, S2) -150mm (S3) -170mm (S4) - 200mm (S5)
Headset FSA No 42/48ACB Integrated Headset, Tapered 1-1/8" - 1.5"
Saddle Fizik Terra Ridon MG Rail
Grips WTB Wavelength
Seatpost Clamp Norco Alloy Nutted Clamp, 34.9mm ID
Front Hub Zipp 1Zero Hitop S, 15x110mm Boost, 6-bolt
Rear Hub Zipp 1Zero Hitop S, 12x148mm Boost, Microspline, 6-bolt
Rims Zipp 1Zero Hitop S Carbon, 30mm ID, 29"
Front Tire Maxxis Rekon, 3C Maxx Terra EXO, 29x2.40"
Rear Tire Maxxis Rekon Race, 3C Maxx Speed EXO 29x2.40"
Rear Hub Skewer 148mm x 12mm TA, L174, TL13, M12x1.3
Spokes/Nipples CX-Sprint
Valves Zipp tubeless valves
Sealant Stans 250ml sealant
