26 Merida Eone Sixty Limited - Gunmetal Grey/Black-
7% off

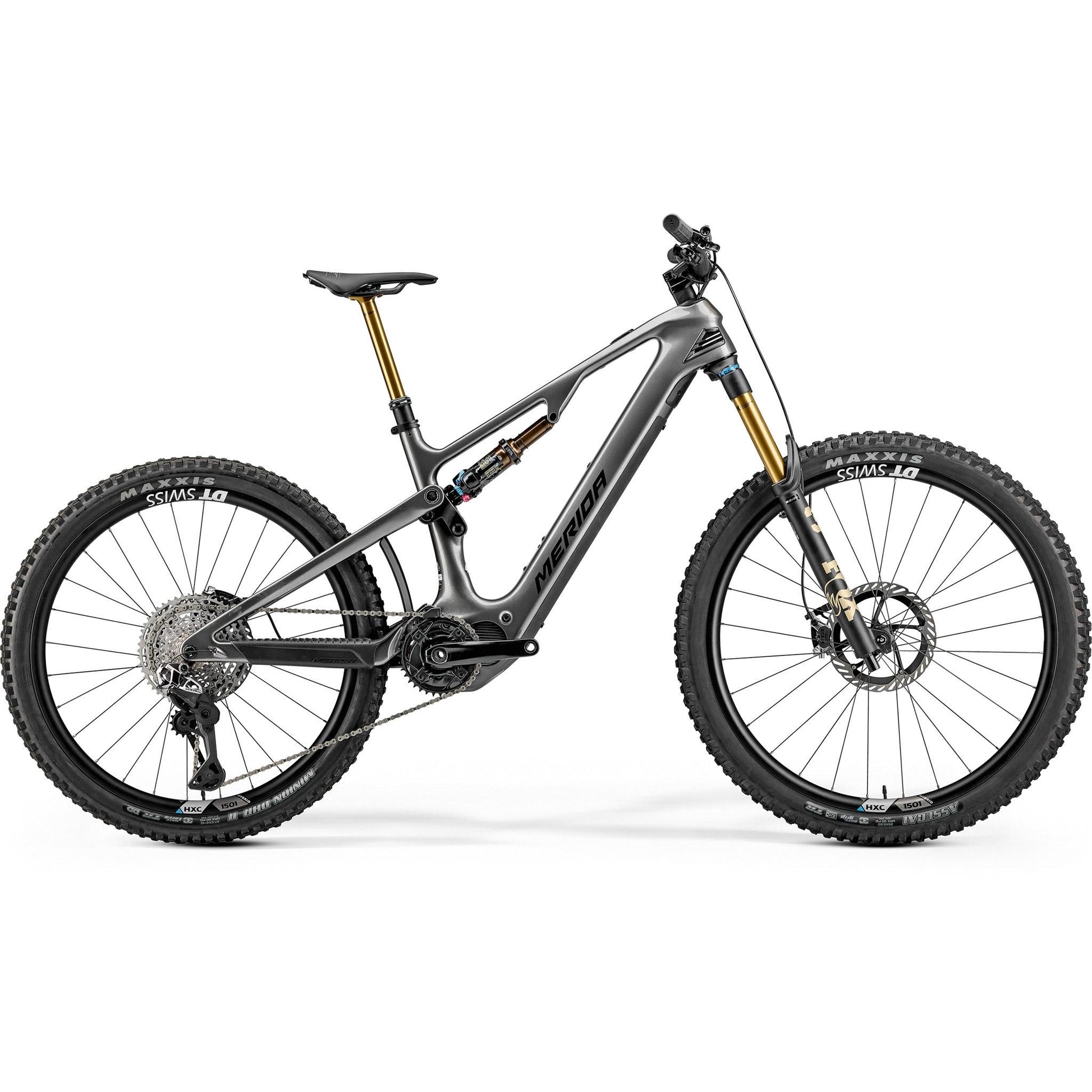

26 Merida Eone Sixty Limited - Gunmetal Grey/Black-

#MEEB2601447
$14,999.00 $13,859.01
Choose an option
Checking stock source...
JS ASK JONNY'S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY MERIDA'S WARRANTY
Ride with confidence knowing this product is backed by Merida's manufacturer warranty. If there's a defect in materials or workmanship, we'll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you're not on your own if something genuine goes wrong. See warranty details →

All The Deets

Description

The Merida eOne-Sixty Limited is designed for those who crave adventure on challenging terrains. Equipped with a powerful Shimano motor delivering 85Nm of torque, this bike ensures a smooth and powerful ride. The integrated 600Wh battery provides ample energy for extended journeys, allowing you to explore further without worry. Its carbon frame offers a perfect balance of strength and lightness, while the 160mm front and rear suspension travel ensures superior handling and comfort on rough trails. With Shimano XTR Di2 electronic shifting, you can enjoy precise and effortless gear changes, making every ride a pleasure.

Key Specifications

  • Frame: MERIDA eONE-SIXTY CF III Carbon, 160mm Travel
  • Fork: FOX 36 Float Factory, 160mm
  • Shock: FOX Float X Factory
  • Motor: Shimano EP801, 85Nm, 250W
  • Battery: Trendpower 600Wh Integrated
  • Drivetrain: Shimano XTR Di2, 1x12-Speed
  • Gearing: 36T | 10-51T
  • Brakes: Shimano XTR 4-Piston Hydraulic Disc
  • Rotors: Shimano CL900, 203mm Front / Rear
  • Wheelset: DT Swiss HXC 1501 Carbon
  • Tyres: Maxxis Assegai 29x2.5" Front / Minion DHR II 27.5x2.4" Rear
  • Dropper: FOX Transfer Factory, Size-Specific Travel
  • Wheel Size: 29" Front / 27.5" Rear Mullet
  • Colour: Gunmetal Grey (Black)


Spec

Motor & Battery

  • Motor: Shimano EP801 Mid-Drive
  • Power: 250W
  • Torque: 85Nm
  • Assistance Limit: 25km/h
  • Battery: Trendpower TPS-C15-58SD, 600Wh Integrated
  • Display: Shimano SC-EM800

Frame & Suspension

  • Frame: MERIDA eONE-SIXTY CF III Carbon, 160mm Travel
  • Fork: FOX 36 Float Factory, Air, 160mm Travel, Tapered Steerer, 44mm Offset
  • Shock: FOX Float X Factory with Platform
  • Rear Travel: 160mm
  • Rear Axle: 148x12mm
  • Maximum Front Tyre: 29x2.6"
  • Maximum Frame Tyre: 29x2.6"
  • Maximum Battery Capacity: 600Wh

Drivetrain

  • Rear Derailleur: Shimano XTR Di2, 12-Speed
  • Shifter: Shimano XTR Di2 M9250
  • Cassette: Shimano XTR, 10-51T, 12-Speed
  • Chain: Shimano XTR M9100
  • Crankset: Shimano FC-EM900, 165mm
  • Chainring: FSA Steel, 36T

Brakes

  • Front Brake: Shimano XTR, 4-Piston
  • Rear Brake: Shimano XTR, 4-Piston
  • Front Rotor: Shimano CL900, 203mm
  • Rear Rotor: Shimano CL900 with EW-SS2 Magnet, 203mm

Cockpit

  • Handlebar: Race Face Era, 780mm Width
  • Stem: MERIDA EXPERT eTR II Aluminium, 35mm Clamp, 0° Rise, 40mm
  • Grips: MERIDA EXPERT TR
  • Headset: Acros ICR MERIDA Integrated with Blocklock
  • Stem Mount: Supernova Light Mount

Seating

  • Saddle: Prologo Nago R4 Nack, 147mm
  • Dropper Post: FOX Transfer Factory Series, 34.9mm, XSHORT: 150mm, SHORT/MID: 180mm, LONG: 210mm, XLONG: 240mm
  • Seat Clamp: MERIDA EXPERT

Wheels & Tyres

  • Wheelset: DT Swiss HXC 1501 Carbon, 30mm Internal Width, Center Lock, Tubeless Ready
  • Front Hub/Axle: 110x15mm
  • Rear Hub/Axle: 148x12mm, Micro Spline
  • Front Tyre: Maxxis Assegai 29x2.5", Folding, Tubeless Ready, EXO+, 3C MaxxGrip
  • Rear Tyre: Maxxis Minion DHR II 27.5x2.4", Folding, Tubeless Ready, EXO+, 3C MaxxTerra
  • Tubeless: Tape and Valves Included
  • Rear Axle: MERIDA EXPERT TR with Removable Lever and 6/4mm Allen Key

Equipment

  • Front Light: CG-119PG-BLACK(1)
  • Rear Light: CG-404RG-BLK
  • Fender: EOF-204
  • Pedals: VP VP-532
  • Colour: Gunmetal Grey (Black)
