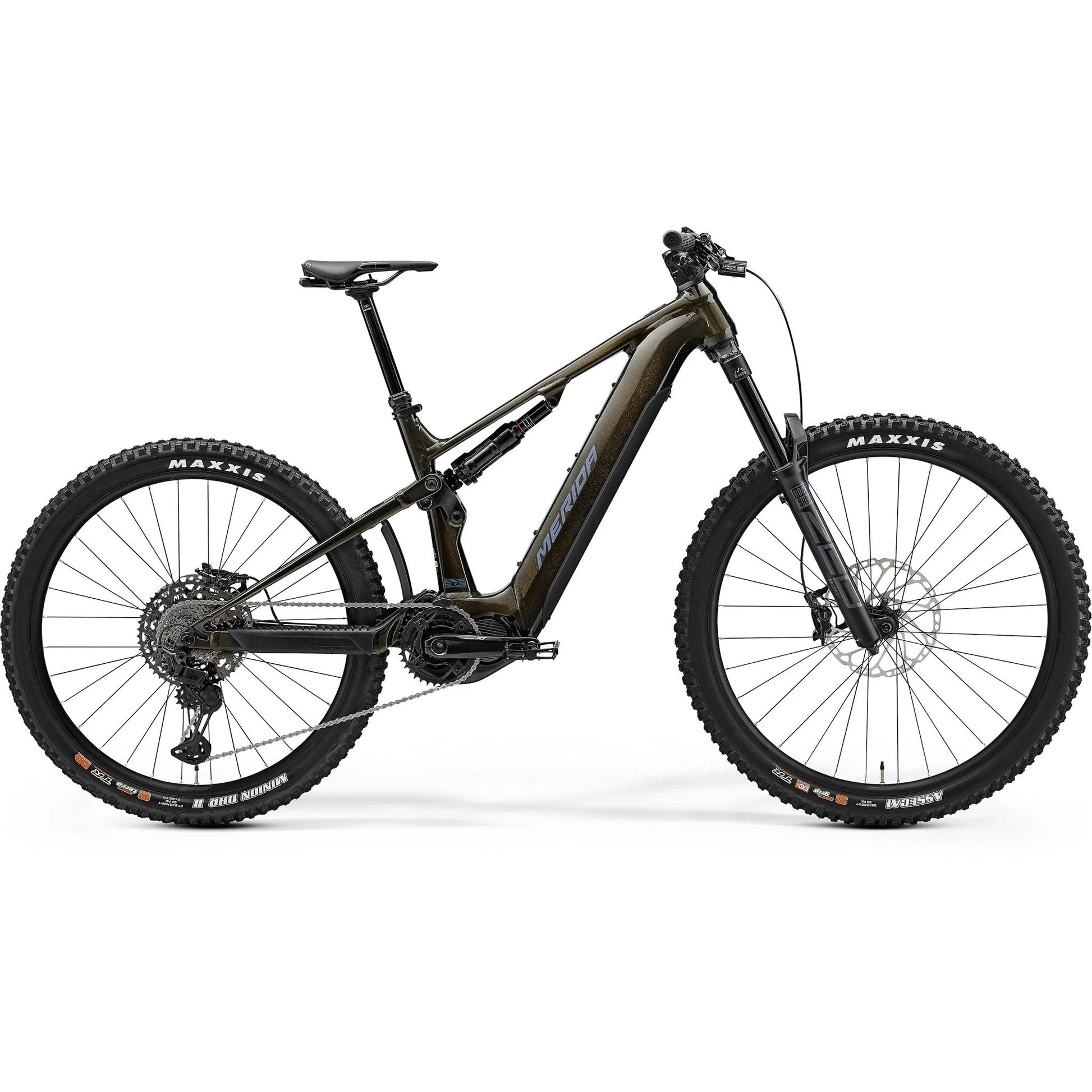

26 Merida eOne-Sixty 875 - Guarded Gold/Grey -

The Merida eOne-Sixty 875 Electric Enduro Bike is designed for those who crave adventure on challenging terrains. Equipped with a robust Shimano mid-drive motor delivering 85Nm of torque, this bike ensures powerful assistance on steep climbs and rough trails. Its 712Wh battery provides extended range, allowing for longer rides without frequent recharges. The bike features a sturdy alloy frame with 160mm rear travel and a RockShox ZEB Select fork with 170mm front travel, offering excellent shock absorption and control. With Shimano XT hydraulic disc brakes, it guarantees reliable stopping power in all conditions. The mullet wheel setup, with a 29" front and 27.5" rear, enhances maneuverability and stability, making it perfect for enduro enthusiasts.

ACCESSORIES    Fender: EOF-204; MERIDA Multitool with saddlebox
AXLES    R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
BRAKES    F: Shimano XT; 4 piston | R: Shimano XT; 4 piston
CASSETTE    Shimano LG700; 11-50 ATC; 11 GER
CHAIN    Shimano LG500
COLOUR    GUARDED GOLD(GREY)
CRANKSET    FSA 1x Steel Chainring; 36 ATC; Shimano FC-E8150; 165 mm all sizes;
DERAILLEUR REAR    Shimano XT RDM8130 LinkGlide 11
FORK    Rock Shox ZEB Select; Air; 170 STR; Tapered; 44mm fork offset; 29x2.8" max WHS
FRAME    eONE-SIXTY LITE IV; MAT aluminium; 160 STR; 29x2.6" max. WHS; 148x12 AST; intube ; 750 Wh
GRIP     MERIDA EXPERT EC
HANDLEBAR     MERIDA EXPERT eTR; 780 WHB;
HANDLEBAR STEM     MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes
HEADSET     Acros ICR MERIDA EXTERNAL neck w/ Blocklock
HUBS     F: Shimano XT; 110x15 WHF; 32 SPH; Centerlock | R: Shimano XT; 148x12 WHR; 32 SPH; Centerlock
LIGHT(S)     F: Lezyne Hekto StVZO E350+ Reverse; reverse MERIDA Custom Mount | R: LEZYNE LED FEMTO USB-C REAR STVZO
PEDALS     VP VPE-527
RIM    Reynolds 309 Enduro Comp; 30 IWR; MAT aluminium; Tubeless ready (tubeless tape installed); front 29"; rear 27.5"
ROTOR FRONT     Shimano RT64; 220 mm
ROTOR REAR     Shimano RTEM600; 203 mm
SADDLE     PROXIM ALTIUS Steel; V-mount adapter; incl. MERIDA minitool
SEAT CLAMP     MERIDA EXPERT
SEAT POST     MERIDA TEAM TR II; 34.9 DSP; 0 SSB; SHORT, MID, LONG and XLONG 30-230 SPT; XSHORT 30-200 SPT
SHIFTERS     F: Shimano SL -MT500-IL | R: Shimano XT M8130 11
SHOCK     Rock Shox Super Deluxe Select
SPOKES     Black stainless ; black nipples
TYRES    F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra
MOTOR/DRIVE UNIT     Shimano EP801; 85Nm; 25KPH
MOTOR BRAND    Shimano
MOTOR MODEL    STePS EP801
MOTOR POWER (WATTS)     250
MOTOR TORQUE (NM)     85
BATTERY     Shimano BT-EN817; 712Wh
BATTERY BRAND    Shimano
BATTERY MODEL    Shimano BT-EN817
BATTERY SIZE (WATT-HOURS)     712
EBIKE DRIVE SYSTEM    Mid Drive
DISPLAY     Shimano SC-EM800
