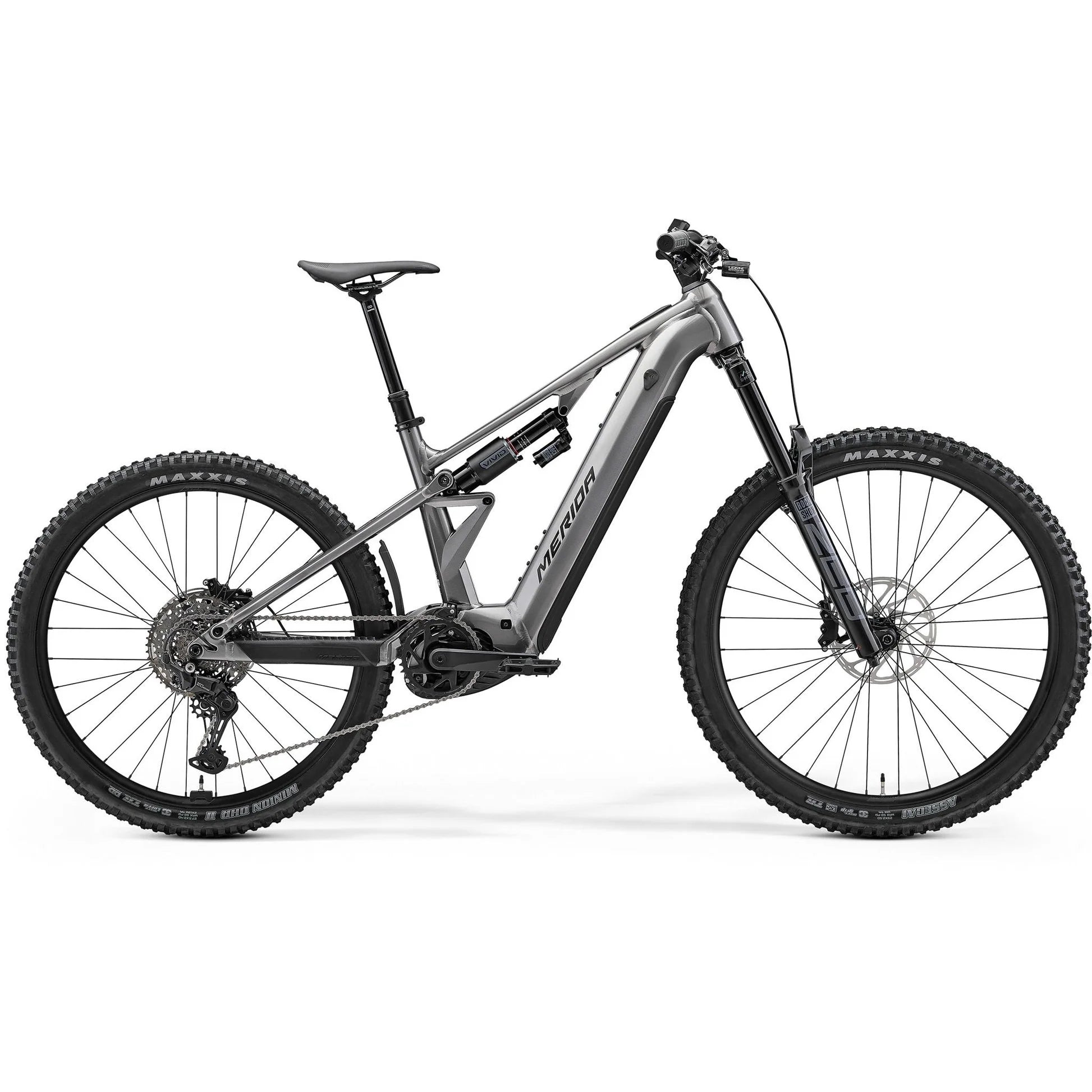

26 Merida eOne Eighty 500 - Gunmetal Grey/Black -

The Merida eOne-Eighty 500 Electric Enduro Bike in Gunmetal Grey/Black is designed for those who crave adventure on challenging terrains. Equipped with a powerful Bosch Performance Line CX motor, it delivers smooth and efficient power, making uphill climbs effortless. The Bosch PowerTube 800Wh battery ensures long-lasting rides, allowing you to explore further without worry. With 180mm of front and rear suspension travel, this bike offers exceptional control and comfort on rough trails. The Shimano CUES 10-speed drivetrain provides precise shifting, while hydraulic disc brakes ensure reliable stopping power. Whether you're tackling steep descents or navigating technical trails, the Merida eOne-Eighty 500 is built to handle it all.

ACCESSORIES    Fender: RF-001 mini fender
AXLES    R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
BRAKES    F: Sram DB4 stealth; 4 piston | R: Sram DB4 stealth; 4 piston
CASSETTE    Shimano Cues LG400; 11-48 ATC; 10 GER
CHAIN    Shimano LG500
COLOUR    GUNMETAL GREY(BLACK)
CRANKSET    FSA Direct Mount Steel Chainring; 36 ATC; FSA CK-220 wide E-Bike Forged Crankset; 160mm for all sizes
DERAILLEUR REAR    Shimano CUES U6000; GS
FORK    Rockshox Zeb Baser eMTB; Air; 180 STR; Tapered; 44mm fork offset; 29x2.6" max WHS
FRAME    eONE-EIGHTY LITE; MAT Aluminum; 180 STR; 29” x 2,6” max. WHS; 148x12 AST; intube;
GRIP     MERIDA COMP TR
HANDLEBAR     MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB
HANDLEBAR STEM     MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes
HEADSET     Acros ICR MERIDA EXTERNAL neck w/ Blocklock
HUBS     F: Shimano TC500; 15x100 WHF; 32 SPH; Centerlock | R: Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
LIGHT(S)     F: Lezyne Hekto StVZO E350+ Reverse; reverse MERIDA Custom Mount | R: USB REAR Light CG-214RG
PEDALS     VP VPE-533
RIM    MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
ROTOR FRONT     Sram CenterLine; 200mm
ROTOR REAR     Sram CenterLine; 200mm
SADDLE     MERIDA COMP SL; V-mount; incl. MERIDA minitool
SEAT CLAMP     MERIDA EXPERT
SEAT POST     MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT
SHIFTERS     F: Shimano SL -MT500-L | R: Shimano CUES U6000-10
SHOCK     Rock Shox Vivid Base
SPOKES     Black stainless ; black nipples
TYRES    F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra
MOTOR/DRIVE UNIT     Bosch Performance Line CX; 250W; 85Nm (upgradeable to 100Nm); 25KPH
MOTOR BRAND    Bosch
MOTOR MODEL    Performance Line CX
MOTOR POWER (WATTS)     250
MOTOR TORQUE (NM)     85
BATTERY     Bosch PowerTube 800 ; 800Wh
BATTERY BRAND    Bosch
BATTERY MODEL    PowerTube 800
BATTERY SIZE (WATT-HOURS)     800
EBIKE DRIVE SYSTEM    Mid Drive
DISPLAY     Bosch Pruion 200
