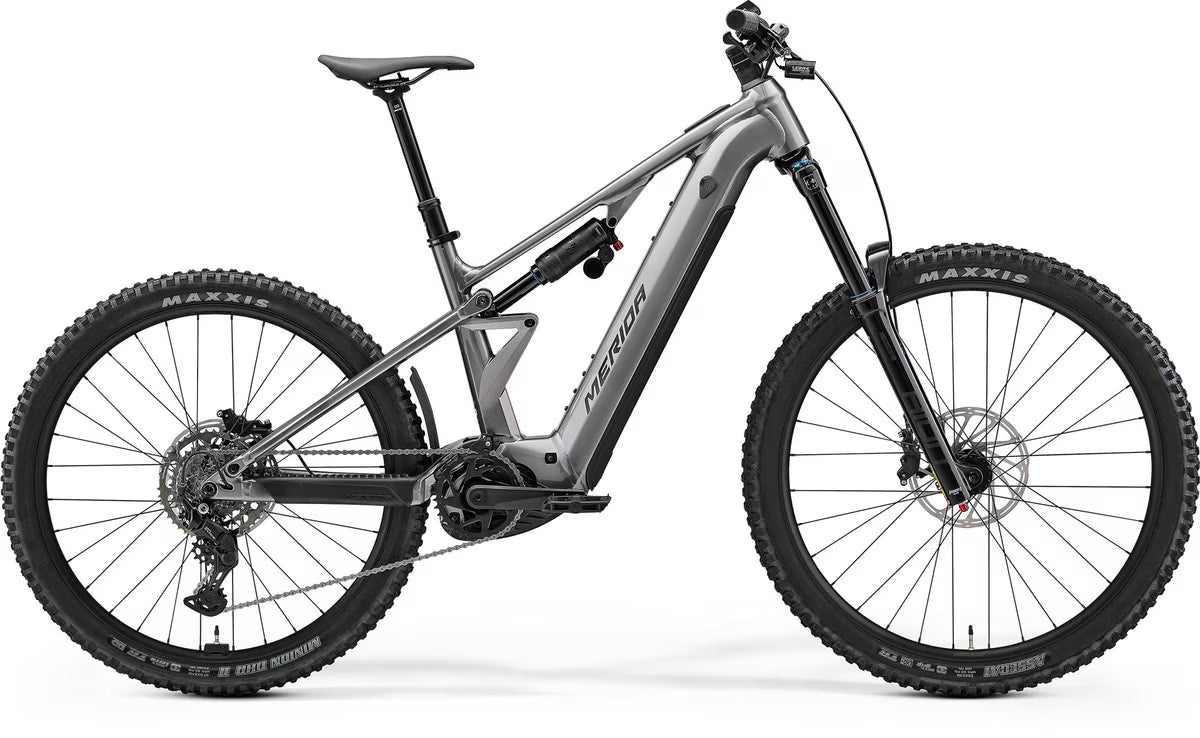

26 Merida eOne Eighty 400 - Gunmetal Grey/Black-

The Merida eOne-Eighty 400 Electric Enduro Bike in Gunmetal Grey/Black is designed for those who crave adventure on challenging terrains. Equipped with a robust Bosch 250W motor and a 600Wh battery, this bike ensures you have the power and range to tackle long trails with ease. Its 180mm front and rear suspension travel, combined with a Shimano Cues 9-speed drivetrain, offers smooth and responsive handling. The hydraulic disc brakes provide reliable stopping power, ensuring safety on steep descents. With its durable alloy frame and high-quality components, the Merida eOne-Eighty 400 is built to deliver an exhilarating ride every time.

AXLES    R: MERIDA EXPERT TR; including removeable lever, 6/4mm allen key
BRAKES    F: Sram DB4 stealth; 4 piston | R: Sram DB4 stealth; 4 piston
CASSETTE    Shimano LG400-9; 11-46 ATC; 9 GER
CHAIN    Shimano LG500
COLOUR    GUNMETAL GREY(BLACK)
CRANKSET    FSA Direct Mount Steel Chainring; 36 ATC; FSA CK-220 wide E-Bike Forged Crankset; 160mm for all sizes
DERAILLEUR REAR    Shimano Cues U4000; GS
FORK    SR Suntour Aion 38X; Air; 180 STR; Tapered; 44mm fork off set; 29x2.6" max WHS
FRAME    eONE-EIGHTY LITE; MAT Aluminum; 180 STR; 29” x 2,6” max. WHS; 148x12 AST; intube;
GRIP     MERIDA COMP TR
HANDLEBAR     MERIDA COMP TR II; MAT aluminium; 780 WHB; 35 RHB
HANDLEBAR STEM     MERIDA EXPERT eTR II; MAT aluminium; 35 DSH; 0 ASD; Supernova mount; 40 mm all sizes
HEADSET     Acros ICR MERIDA EXTERNAL neck w/ Blocklock
HUBS     F: Novatec SL-ELITE D041SB-B15; 110x15 WHF; 32 SPH; 6 bolt | R: Novatec SL-TEAM D462SB-S3S-B12-11S; 148x12 WHR; 32 SPH; 6 bolt
LIGHT(S)     F: Lezyne Hekto StVZO E350+ Reverse; reverse MERIDA Custom Mount | R: CG-404RG-BLK
PEDALS     VP VPE-533
RIM    MERIDA EXPERT TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5"
ROTOR FRONT     Sram CenterLine; 203mm
ROTOR REAR     Sram CenterLine; 203mm
SADDLE     MERIDA COMP SL; V-mount; incl. MERIDA minitool
SEAT CLAMP     MERIDA EXPERT
SEAT POST     MERIDA EXPERT TR II; 34.9 DSP; 0 SSB; XS: 125 SPT - S: 150 SPT - M: 170SPT - L: 200 SPT - XL: 230 SPT
SHIFTERS     F: Shimano SL -MT500-L | R: Shimano Cues U4000-9
SHOCK     SR Suntour TriAir 2
SPOKES     Black stainless ; black nipples
TYRES    F: Maxxis Assegai; 29x2.5 "; fold; TR EXO+ 3C MaxxGrip | R: Maxxis Minion DHR II; 27.5x2.4 "; fold; 3C DD TR MaxxTerra
MOTOR/DRIVE UNIT     Bosch Performance Line CX; 250W; 85Nm (upgradeable to 100Nm); 25KPH
MOTOR BRAND    Bosch
MOTOR MODEL    Performance Line CX
MOTOR POWER (WATTS)     250
MOTOR TORQUE (NM)     85
BATTERY     Bosch PowerTube 600 ; 600Wh
BATTERY BRAND    Bosch
BATTERY MODEL    PowerTube 600
BATTERY SIZE (WATT-HOURS)     600
EBIKE DRIVE SYSTEM    Mid Drive
DISPLAY     Bosch Pruion 200
