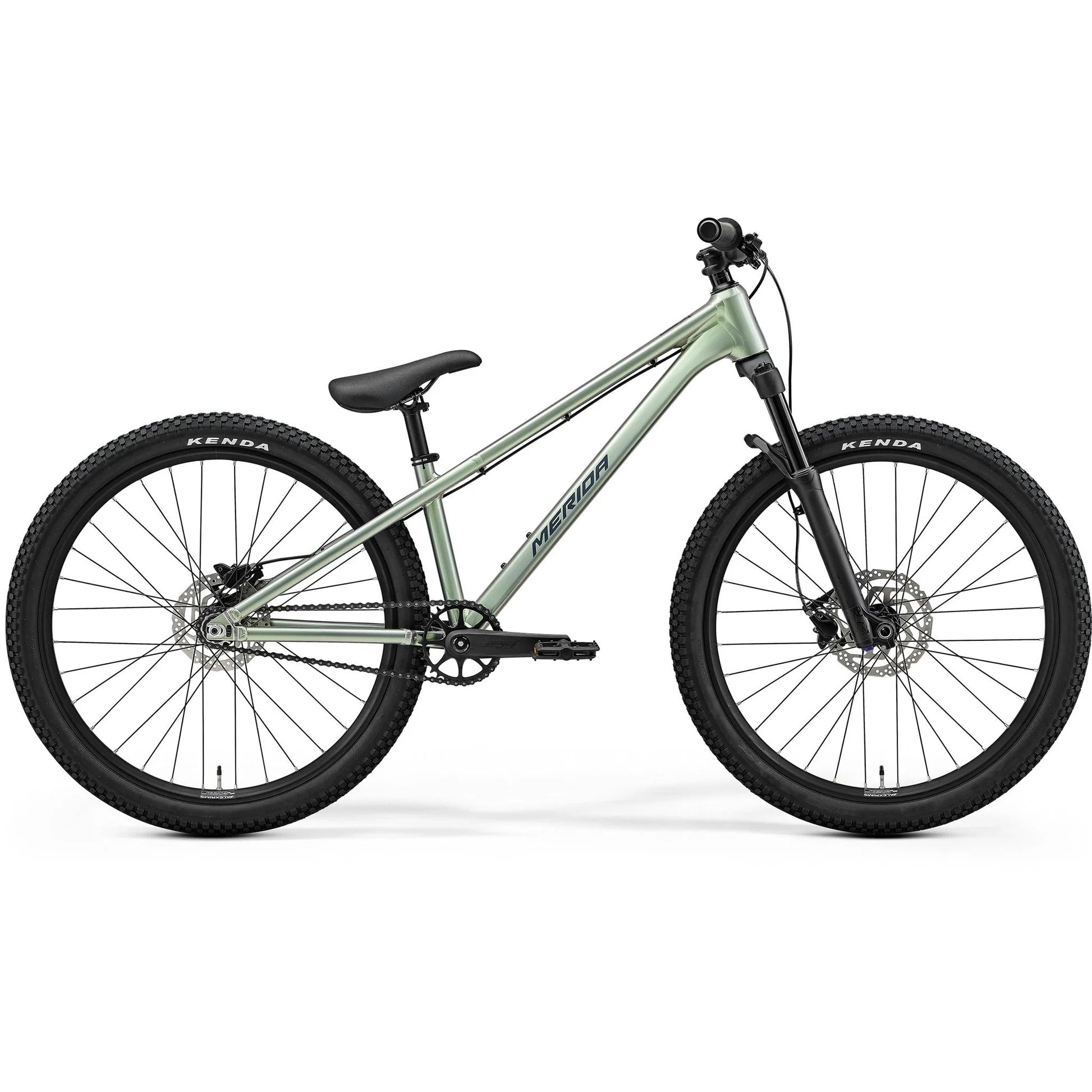

26 Merida Dirt 500 Dirt Jumper Bike - Grey/Green -

The Merida Dirt 500 Dirt Jumper Bike is designed for those who crave the thrill of dirt jumping, pump tracks, and trail riding. Built with a robust alloy frame and equipped with a Manitou Circus Expert fork, this bike offers excellent shock absorption and control. Its hydraulic disc brakes ensure reliable stopping power, while the single-speed drivetrain provides simplicity and ease of maintenance. With tubeless-ready rims and Kenda K-Rad tires, the Merida Dirt 500 is ready to tackle any terrain with confidence.

Key Features

• Alloy frame for durability
• Manitou Circus Expert fork
• Hydraulic disc brakes
• Single-speed drivetrain
• Tubeless-ready rims

ACCESSORIES    Rear brake adapter SM-MA-R160P/S
BOTTOM BRACKET     Samox BSA 24mm EB2401
BRAKES    F: Shimano MT200; 2 piston | R: Shimano MT200; 2 piston
CASSETTE    14t singlespeed cog
CHAIN    KMC Z1 narrow
CRANKSET    MERIDA Expert TR II; 32 ATC; 160mm
FORK    Manitou Circus Expert, Air; 100 STR; 110x20mm; 41mm fork offset; tapered
FRAME    DIRT TFS; MAT aluminum; 26 WHS; 135x10 AST; BSA BBR
GRIP     MERIDA COMP DR
HANDLEBAR     MERIDA COMP TR; MAT aluminium; 780 WHB; 20 RHB
HANDLEBAR STEM     MERIDA COMP TR; MAT aluminium; 35 DSH; 0 ASD; 40mm
HEADSET     FSA NO.57SC
HUBS     F: Novatec DH61SB-HL; 110x20 WHF; 32 SPH; 6 bolt | R: Novatec D256SBT; 135x10 M10 WHR; 32 SPH; 6 bolt; 14t
PEDALS     VP VPE-536
RIM    Alexrims MD30; 30 IWR; MAT aluminum; 32H; tubeless ready
ROTOR FRONT     Shimano RT10; 180mm
ROTOR REAR     Shimano RT26; 160mm
SADDLE     MERIDA COMP DR
SEAT CLAMP     MERIDA EXPERT
SEAT POST     MERIDA COMP DR; MAT aluminium; 27.2 DSP; 0 SSB; 250mm length
SPOKES     Black stainless
TYRES    F: Kenda K-Rad K905 ; 26x2.3"; wire | R: Kenda K-Rad K905 ; 26x2.3"; wire
