26 Cube Stereo Hybrid ONE77 HPC Race 800 - Willow Green 'N' Black

#CUEB103110000S
$7,999.00 $4,899.02
Choose an option
Checking stock source...
JS ASK JONNY'S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY CUBE'S WARRANTY
Ride with confidence knowing this product is backed by Cube's manufacturer warranty. If there's a defect in materials or workmanship, we'll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you're not on your own if something genuine goes wrong. See warranty details →

All The Deets

Description

The Cube Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.

Key Specifications
  • Frame: CUBE C:62 Carbon, Aluminium Rear Triangle, FSP 4-Link Suspension
  • Fork: SR Suntour Aion 38X 2CR Air, 170mm Travel
  • Rear Shock: SR Suntour Edge EVO 2CR, 230x65mm
  • Motor: Bosch Performance Line CX Smart System, 120Nm
  • Battery: Bosch PowerTube 800Wh
  • Maximum Assisted Speed: 25km/h
  • Drivetrain: Shimano Deore, 1x12-Speed
  • Brakes: Magura MT Thirty 4-Piston Hydraulic Disc
  • Rotors: 203mm Front / Rear
  • Wheelset: CUBE EX30, Tubeless Ready
  • Tyres: Schwalbe Magic Mary Front / Big Betty Rear, 2.4"
  • Seatpost: CUBE Dropper Post, 31.6mm
  • Maximum Claimed Range: Up to 93km


Spec
Frame & Suspension
  • Frame: CUBE C:62 Monocoque Advanced Twin Mold Carbon
  • Rear Triangle: Aluminium 6061 T6
  • Suspension Design: Efficient Trail Control, FSP 4-Link
  • Geometry: Agile Trail Geometry
  • Rear Axle Standard: Boost 148
  • Derailleur Hanger: UDH (Universal Derailleur Hanger)
  • Battery Integration: Fully Integrated
  • Cable Routing: Advanced Internal Cable Routing

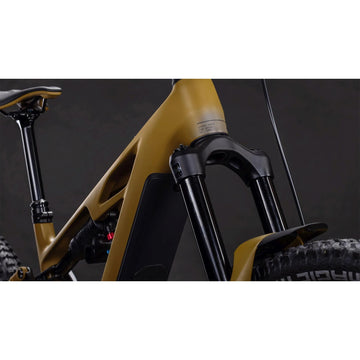

  • Fork: SR Suntour Aion 38X 2CR Air
  • Fork Travel: 170mm
  • Fork Spring: Air
  • Fork Features: Lockout, Tapered Steerer
  • Front Axle: 15x110mm Boost

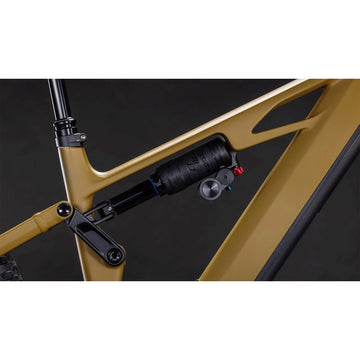

  • Rear Shock: SR Suntour Edge EVO 2CR
  • Rear Shock Size: 230x65mm
  • Headset: ACROS AZF-675, Integrated Cable Routing
  • Headset Standard: ZS56/ZS56, 1.5"
  • Headset Features: Fibre Inserts for Angle Adjustment
Motor & Battery
  • Motor: Bosch Performance Line CX, Smart System
  • Motor Position: Mid-Drive
  • Maximum Torque: 120Nm
  • Maximum Assisted Speed: 25km/h
  • Battery: Bosch PowerTube 800
  • Battery Capacity: 800Wh
  • Maximum Claimed Range: Up to 93km
Drivetrain
  • Drivetrain: Shimano Deore, 1x12-Speed
  • Rear Derailleur: Shimano Deore RD-M6100-SGS, ShadowPlus, 12-Speed
  • Shifters: Shimano Deore SL-M6100, Rapidfire Plus

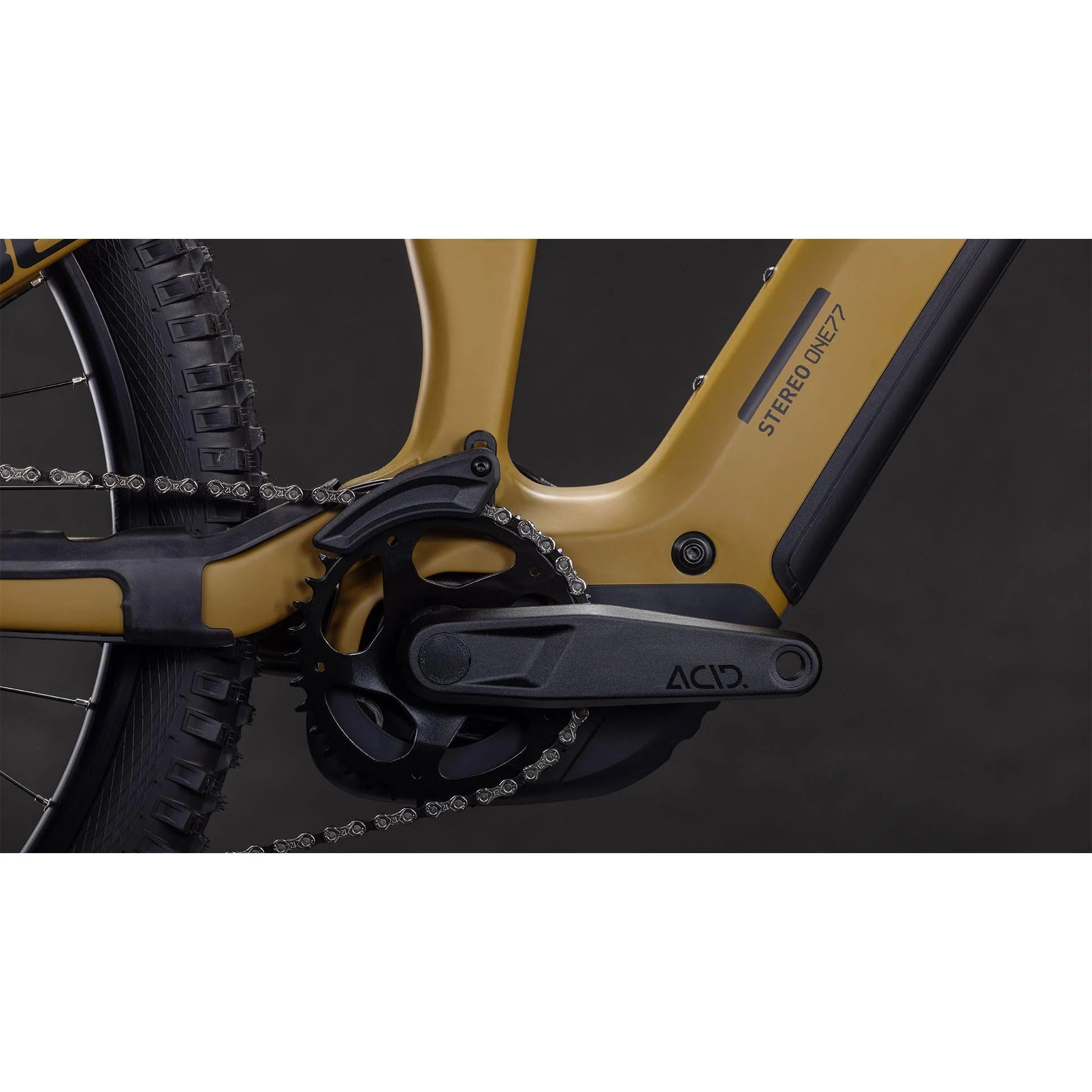

  • Crankset: ACID MTB Hybrid Pro
  • Chainring: 36T
  • Cassette: Shimano Deore CS-M6100, 10-51T, 12-Speed
  • Chain: KMC e12
Brakes
  • Front Brake: Magura MT Thirty, 4-Piston Hydraulic Disc
  • Rear Brake: Magura MT Thirty, 4-Piston Hydraulic Disc
  • Front Rotor: 203mm
  • Rear Rotor: 203mm
Cockpit
  • Handlebar: CUBE Rise Trail Bar 35
  • Stem: CUBE Performance Stem E-MTB 35, FPI-Link
  • Grips: ACID Disrupt, Soft Compound
  • Headset: ACROS AZF-675, Integrated Cable Routing
Seating
  • Saddle: ACID Venec Lite
  • Seatpost: CUBE Dropper Post
  • Seatpost Diameter: 31.6mm
  • Dropper Remote: Handlebar Lever
  • Dropper Cable Routing: Internal
Wheels & Tyres
  • Rims: CUBE EX30, 32-Hole
  • Rim Features: Disc Brake Compatible, Tubeless Ready
  • Front Hub: CUBE Engineered by Newmen, 15mm Boost, 6-Bolt
  • Rear Hub: CUBE Engineered by Newmen, 12mm Boost, 6-Bolt
  • Front Tyre: Schwalbe Magic Mary, Performance, 2.4"
  • Rear Tyre: Schwalbe Big Betty, Performance, 2.4"
Accessories & General
  • Pedals: Not Included
  • NSW Sale Approval: Approved
  • NSW Declared Article Number: ULL-104243-EA
