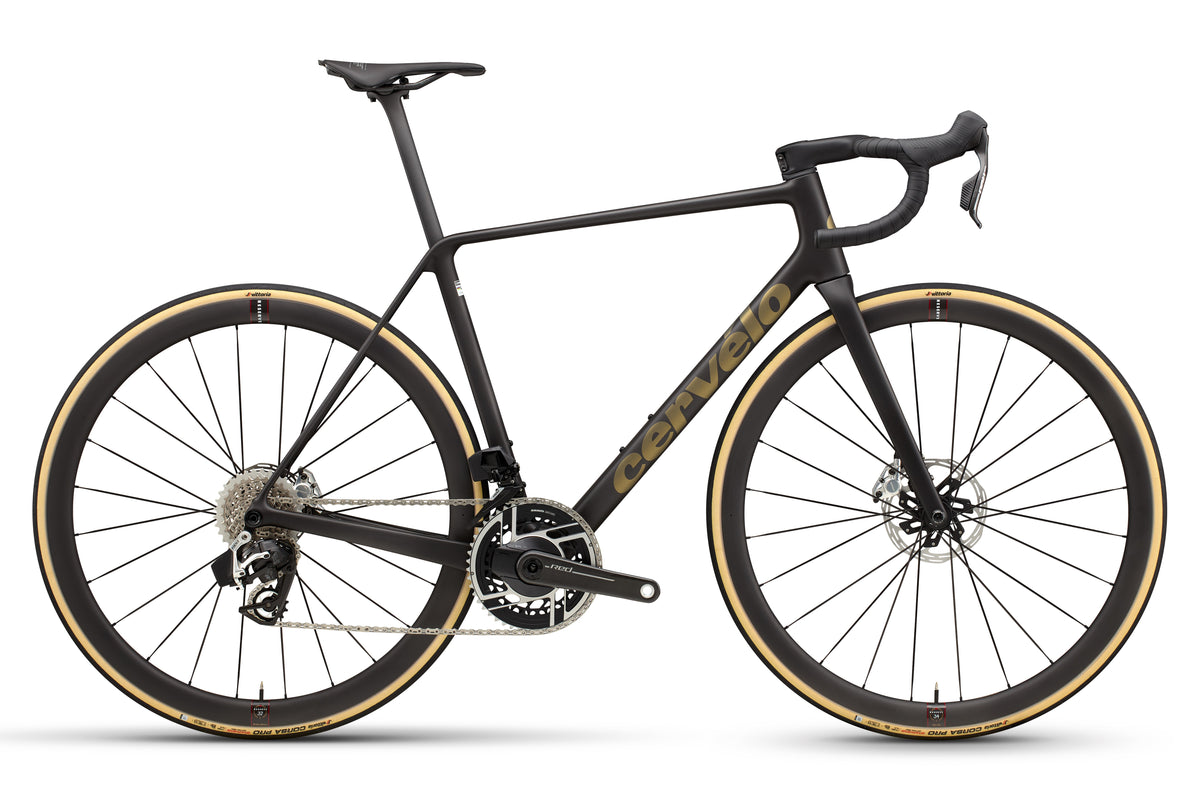

26 Cervelo R5 - Red XPLR AXS 1 - Black/Bronze -
26 Cervelo R5 - Red XPLR AXS 1 - Black/Bronze -
26 Cervelo R5 - Red XPLR AXS 1 - Black/Bronze -

26 Cervelo R5 - Red XPLR AXS 1 - Black/Bronze -

#0L0R5HXR1C54
$18,499.00
Regular price $18,499.00
Choose an option
Checking stock source...
JS ASK JONNY'S TAKE
JS
Need a straight-up bike shop opinion?

Ask about sizing, setup, value, riding style or whether this product actually suits what you want to do.

PROFESSIONAL BUILD
Every Click and Collect bike will be fully assembled and safety-checked by a qualified Jonny Sprockets mechanic before you collect it. We check key bolts, gears, brakes, tyre pressure, headset, wheels and general setup, so your new bike is ready to roll properly from day one.
COVERED BY CERVELO'S WARRANTY
Ride with confidence knowing this product is backed by Cervelo's manufacturer warranty. If there's a defect in materials or workmanship, we'll help guide you through the warranty process and work with the supplier to get it sorted as quickly as possible. Warranty terms vary by brand and product type, but you're not on your own if something genuine goes wrong. See warranty details

All The Deets

Description

The R5 is legendary. From the limits-shattering R5CA to Wout van Aert’s winning day on Mont Ventoux, R5 has been part of Cervelo’s story for over two decades. This all-new R5 is an incredibly light (5.97kg in RED and Dura-Ace builds) road bike that’s also stiff enough to compete at the highest levels of professional cycling—as Pauline Ferrand-Prevot proved when she rode it to victory at this summer’s Tour de France Femmes.

It’s easy enough to make a light bike, but to make a light bike that’s stiff enough to accelerate quickly and transfer power from the sport’s biggest motors? That’s another challenge entirely. R5 is the bike for big days in the high mountains of the Tour de France, and the punishingly steep climbs of the Vuelta a Espana. Bikes built for the mountains must not only accelerate rapidly and climb exceptionally, but descend confidently and predictably. While the UCI mandates a minimum weight of 6.8kg, those of us in the ‘mere mortal’ category will benefit from having the lightest road bike on the market.

Key Specifications
  • Fork: Cervélo All-Carbon Tapered R5
  • Drivetrain: SRAM Red XPLR AXS E1, 1x13-Speed
  • Power Meter: Integrated SRAM Red AXS E1
  • Gearing: 48T | 10-46T
  • Brakes: SRAM Red AXS E1 Hydraulic Disc
  • Rotors: SRAM Paceline X Centerlock
  • Wheelset: Reserve 34TA SL Front / 37TA SL Rear
  • Hubs: DT Swiss 180
  • Tyres: Vittoria Corsa Pro Speed TLR G2.0, 700x26c
  • Cockpit: Cervélo HB18 Carbon One-Piece
  • Saddle: Prologo Nago R4 PAS Nack Lightweight
  • Weight: 5.86kg
  • Sizes: 48, 51, 54, 56, 58, 61cm



Spec
Frame & Fork
  • Fork: Cervélo All-Carbon Tapered R5
  • Headset: FSA SL IS2, 1-1/4" 45° x 45° / 1-1/2" 36° x 45°
  • Front Thru Axle: Cervélo Aero, M12x1.5mm, 122mm
  • Rear Thru Axle: Cervélo Aero, M12x1.0mm, 169mm
Drivetrain
  • Rear Derailleur: SRAM Red XPLR AXS E1
  • Cassette: SRAM Red XPLR E1, 10-46T, 13-Speed
  • Chain: SRAM Red E1
  • Crankset: SRAM Red 1 AXS E1, 48T Aero, DUB, Integrated Power Meter
  • Crank Length: 48–51cm: 165mm, 54–56cm: 170mm, 58–61cm: 172.5mm
  • Bottom Bracket: SRAM DUB Ceramic, BBright
  • Power Meter: Integrated with Crankset
Brakes
  • Shifter / Brake Levers: SRAM Red AXS E1
  • Rotors: SRAM Paceline X Centerlock
Carbon Wheelset
  • Front Wheel: Reserve 34TA SL, DT Swiss 180, 12x100mm, 24H, Centerlock, Tubeless Compatible
  • Rear Wheel: Reserve 37TA SL, DT Swiss 180, 12x142mm, XDR Freehub, 24H, Centerlock, Tubeless Compatible
Cockpit

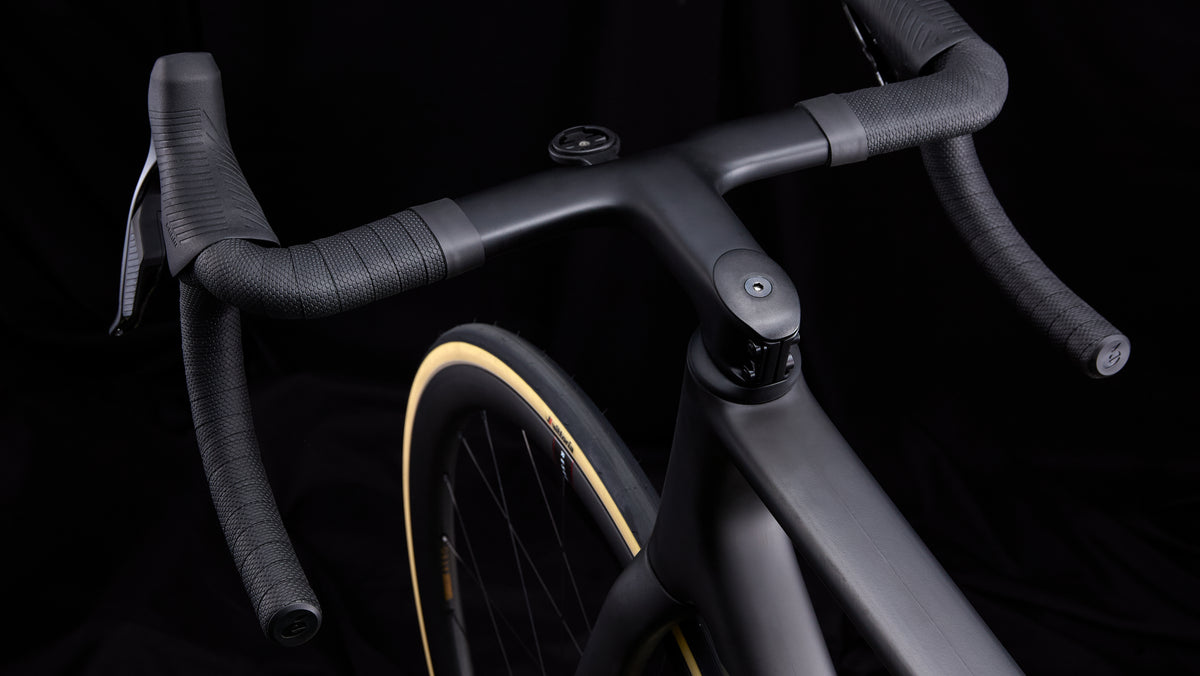

  • Handlebar / Stem: Cervélo HB18 Carbon One-Piece
  • Handlebar Width: 48cm: 36cm, 51cm: 38cm, 54–61cm: 40cm
  • Stem Length: 48cm: 80mm, 51cm: 90mm, 54–56cm: 100mm, 58cm: 110mm, 61cm: 120mm
Seating
  • Seatpost: Cervélo SP33 Carbon
  • Seatpost Offset: 48–56cm: 0mm, 58–61cm: 15mm
  • Saddle: Prologo Nago R4 PAS Nack Lightweight
Tyres
  • Front Tyre: Vittoria Corsa Pro Speed TLR G2.0, 700x26c
  • Rear Tyre: Vittoria Corsa Pro Speed TLR G2.0, 700x26c
Accessories
  • Front Computer / Accessory Mount: Cervélo 887
  • Rear Accessory Mount: Cervélo
  • GPS Computer: Hammerhead Karoo 3
Other
  • Weight: 5.86kg
