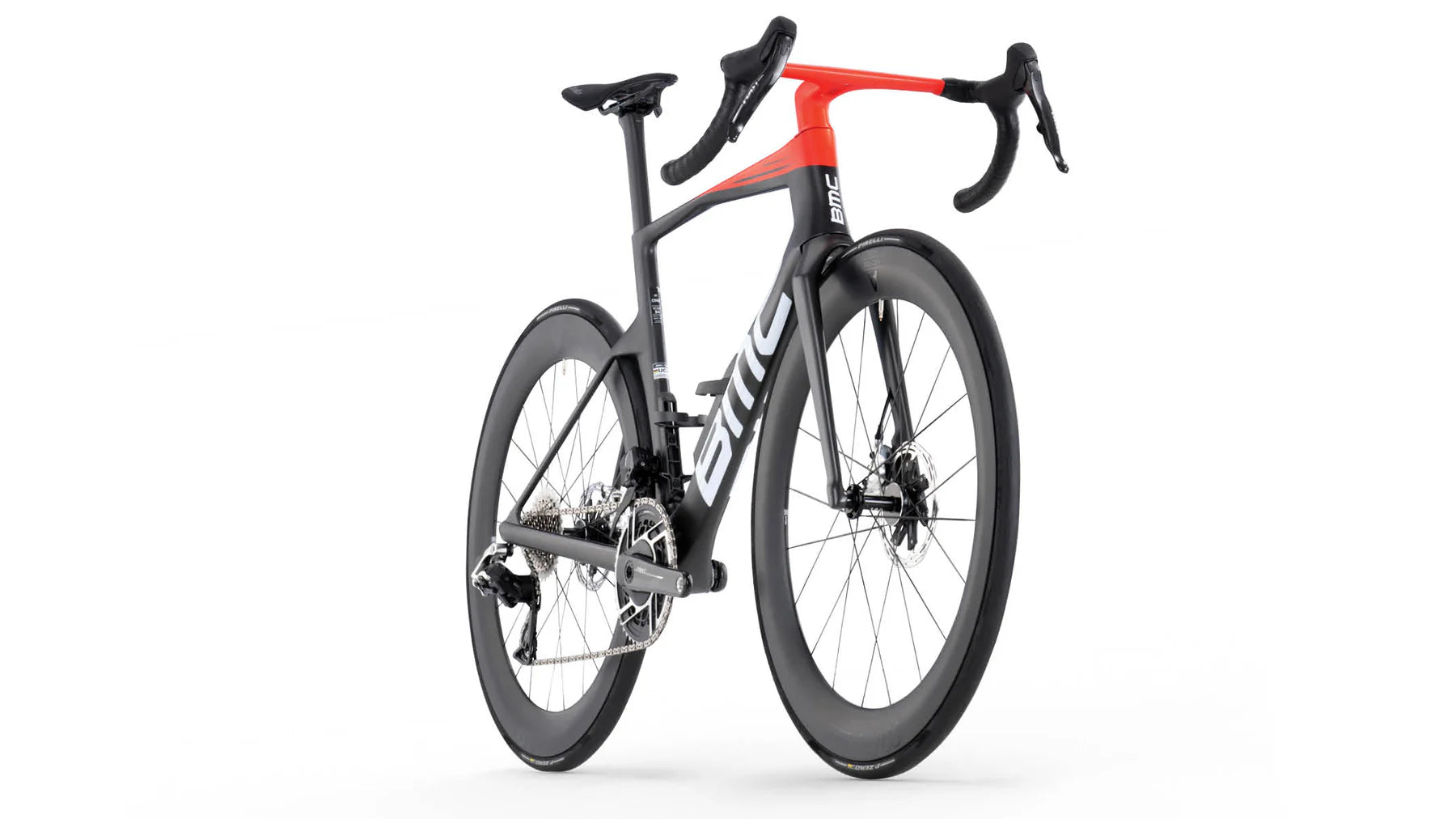

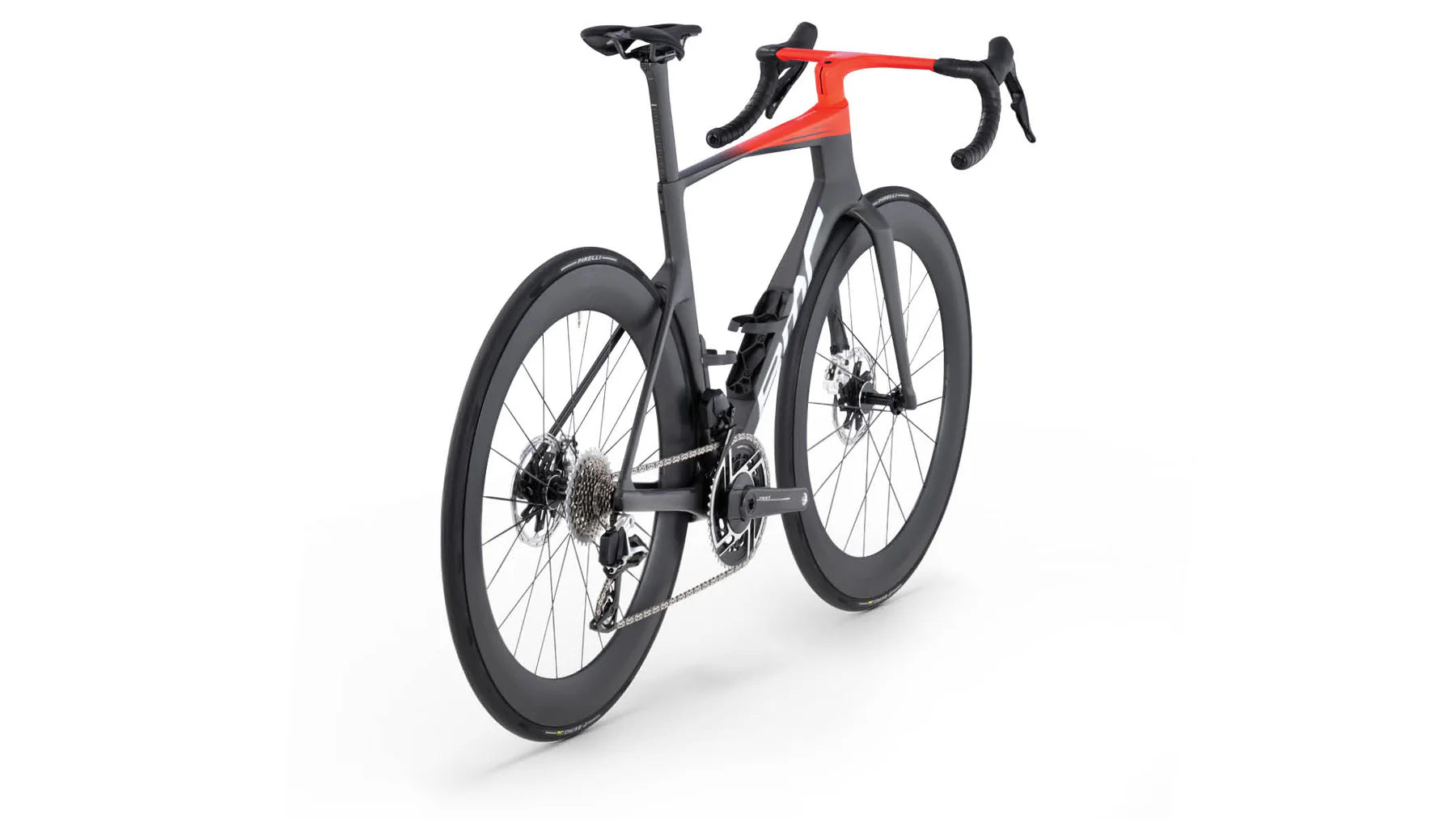

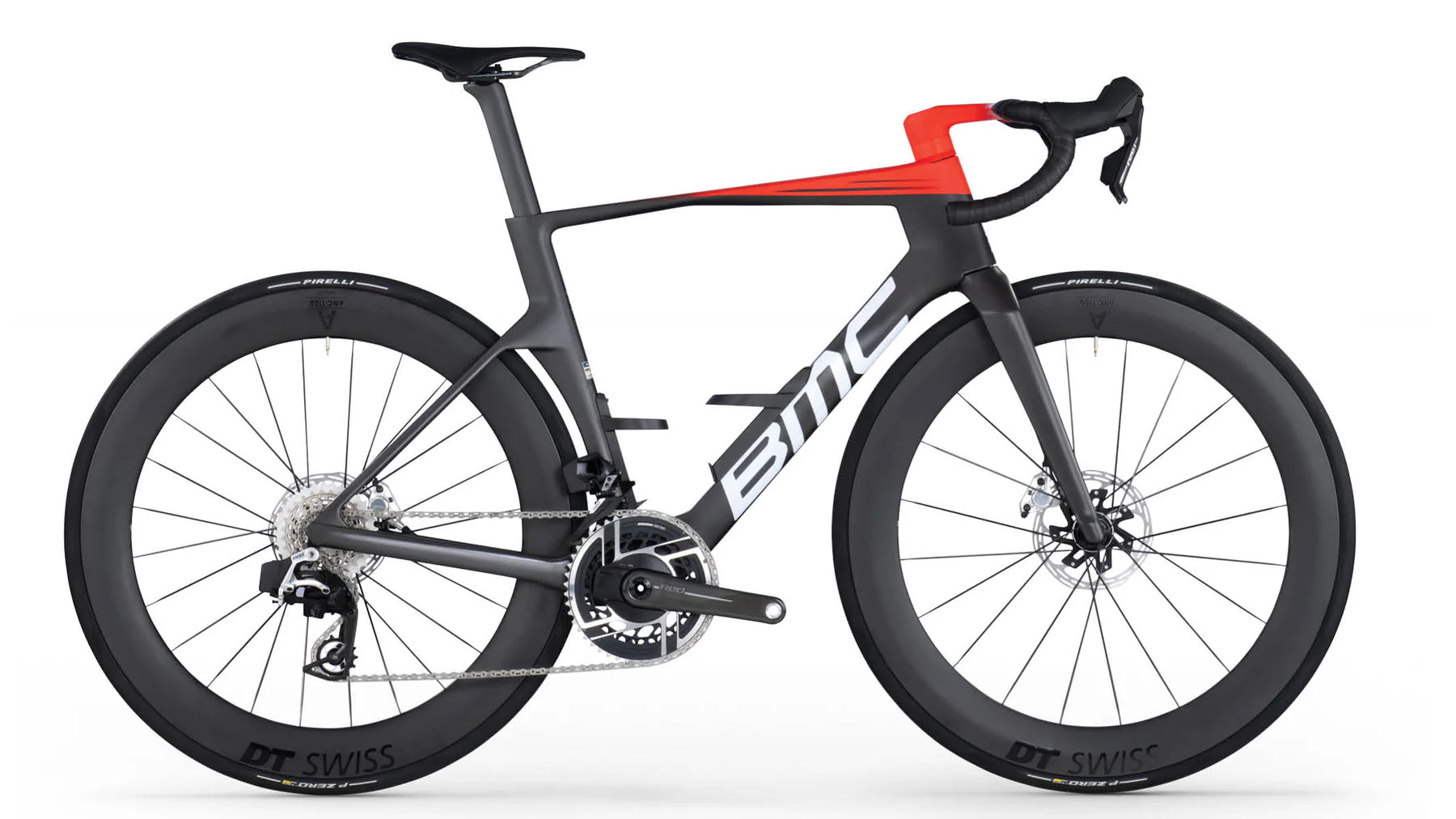

Precision engineered to perform at your highest level. Born from the collaboration with Red Bull Advanced Technologies, the Teammachine R 01 brings professional race performance to every rider. Designed with high stiffness targets, low aero drag, and lightweight construction technics, it’s the fastest road bike ever designed by BMC. Specified with our aero and low stack ICS Aero cockpit, with SRAM Red AXS - the most technological groupset available -, fitted with a powermeter and made even faster with the newest DT Swiss ARC 1100 DiCut 65mm wheels. Whether it’s a summit finish or a solo breakaway, this bike is built to deliver.
Frameset
Frame:
Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Handlebar:
ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare
Seat
Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 10mm Offset
Saddle:
Selle Italia SLR Boost Superflow | CarboKeramic Rail | 145mm
Drivetrain
Crankset:
SRAM Red AXS (FC-RED-P-E1)
Chainrings:
48-35T
Power Meter:
SRAM Red AXS Power Meter (FC-RED-P-E1)
Cassette:
SRAM Red (CS-XG-1290-E1)
Cassette Size:
10-33T
Chain:
SRAM RED (CN-RED-E1)
Front Derailleur:
SRAM RED AXS (FD-RED-E-E1)
Rear Derailleur:
SRAM Red AXS (RD-RED-E-E1)
Shifters:
SRAM Red AXS (ED-RED-E1)
Gears:
2 x 12
Bottom Bracket:
SRAM Press Fit DUB
Brakes
Brake Levers / Calipers:
SRAM Red AXS (ED-RED-E1)
Rotors:
SRAM Paceline X | Centerlock
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
DT Swiss ARC 1100 DICUT | 65mm
Hubs (F/R):
DT Swiss 180 DICUT | Ratchet EXP 36
Tires:
Pirelli P Zero Race TLR RS | Tubeless | 26mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Aerocore Bottle Cages | Computer mount for Garmin and Wahoo
Additional Information
Tire Clearance:
30mm measured tire
ASTM Classification:
Level 1
System Weight Limit:
110kg
