FRAME New Frame, Updated Geometry and Hydroformed tubing, Tapered headtube, T6 - 6061 Aluminium, semi-internal cable routing, dropper post compatible, replaceable derailleur hanger,
FRAME CONT. 148mm x 12mm through axle dropouts, 18mm direct-mount 2-bolt kickstand, water bottle bosses, ISCG Tabs, 29" x 2.5" tyre clearance, rack and fender mounts

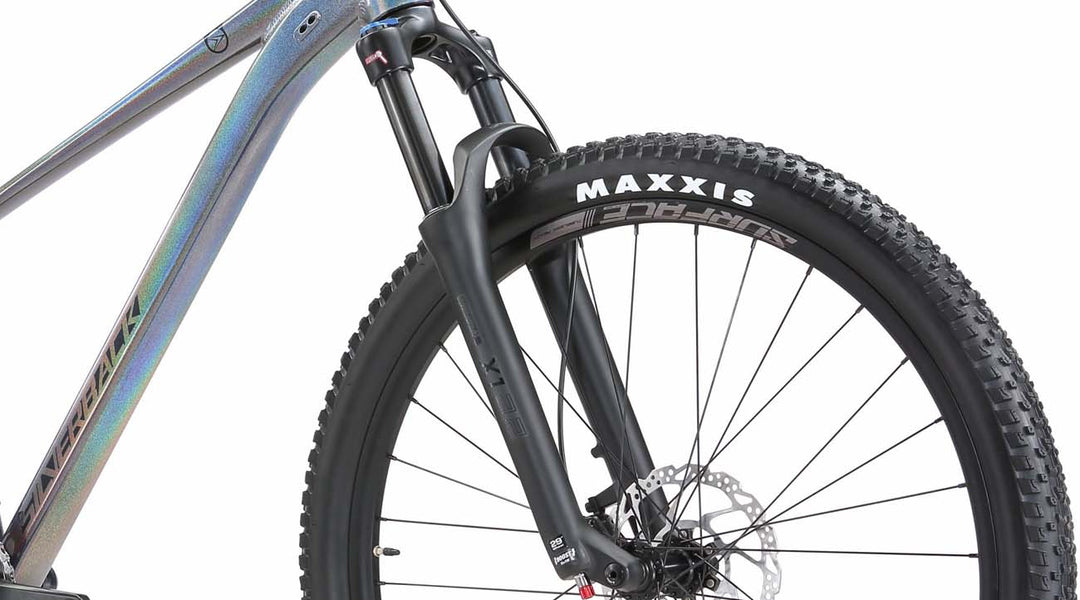

FORK SR Suntour X1 Boost Air LOR DS, 120mm Travel, 32mm Black Stanchions, LOR Damper
HEADSET Semi-Integrated Threadless Headset
HANDLEBAR Alloy Handlebar, Dia: 31,8mm, 680mm, 9° Backsweep, 12mm Rise, Sanblasted Black
STEM Alloy Stem, 31.8mm, ±6° Rise
GRIP TPR Single Density Grips, Black
WHEELSET SURFACE Custom Wheelset
RIM-FRONT 29" Asymmetrical Alloy Rim, Tubeless Ready
RIM-REAR 29" Asymmetrical Alloy Rim, Tubeless Ready
HUB-FRONT Shimano HB-TC500-15-B Front Hub, Centre Lock, 32H, 15mm Thru-Axle, OLD: 110mm
HUB-REAR Shimano FH-TC500-HM-B Freehub, Centre Lock, 8-11 Speed, 12mm Thru-Axle, 32H, OLD: 148mm
TIRE-FRONT Maxxis Rekon 29x2,4"
TIRE-REAR Maxxis Rekon 29x2,4"
SPOKE 14G Stainess Black Spokes
CHAIN Shimano CN-LG500 LG Chain, 118 Links, 9/10/11 Speed

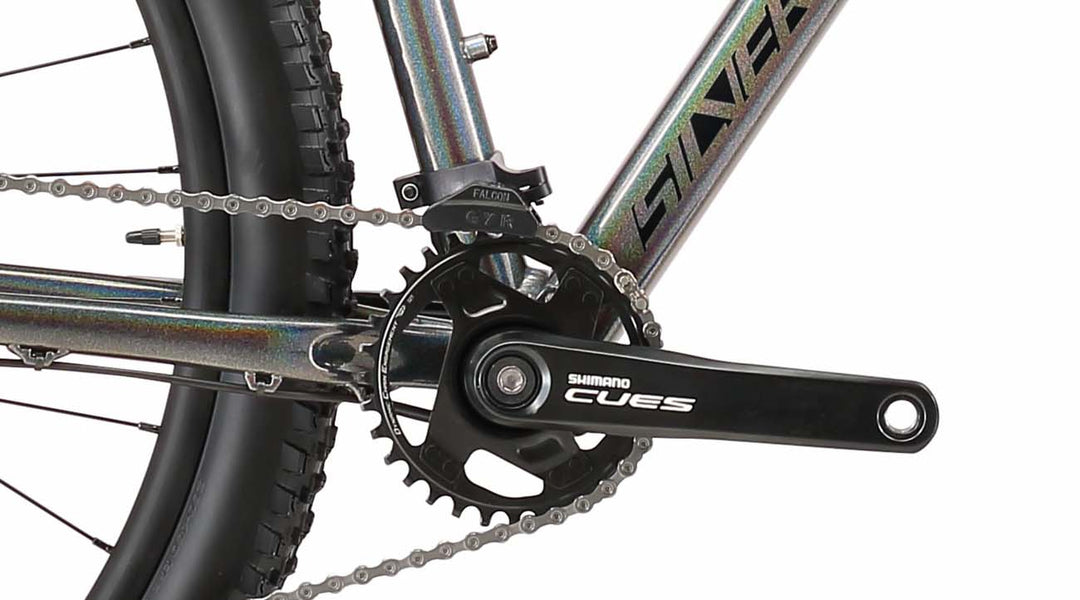

CRANKSET Shimano FC-U4000-1 CUES, 32T
CHAINRING NIL
PEDAL One Piece Alloy Pedal, Black
BRAKE-FRONT Shimano BL-MT200(L) with BR-MT200(F) Altus Disc Brake Assembled Set, 800mm Hose
BRAKE-REAR Shimano MT200 Rear Hydraulic Disc Brake, 180PM, Resin Pads, 1700mm Hose
ROTOR-FRONT Shimano SM-RT54 Deore Rotor, 180mm, with External Serration Lock Ring
ROTOR-REAR Shimano SM-RT54 Deore Rotor, 180mm, with External Serration Lock Ring
DERAILLEUR-FRONT NIL

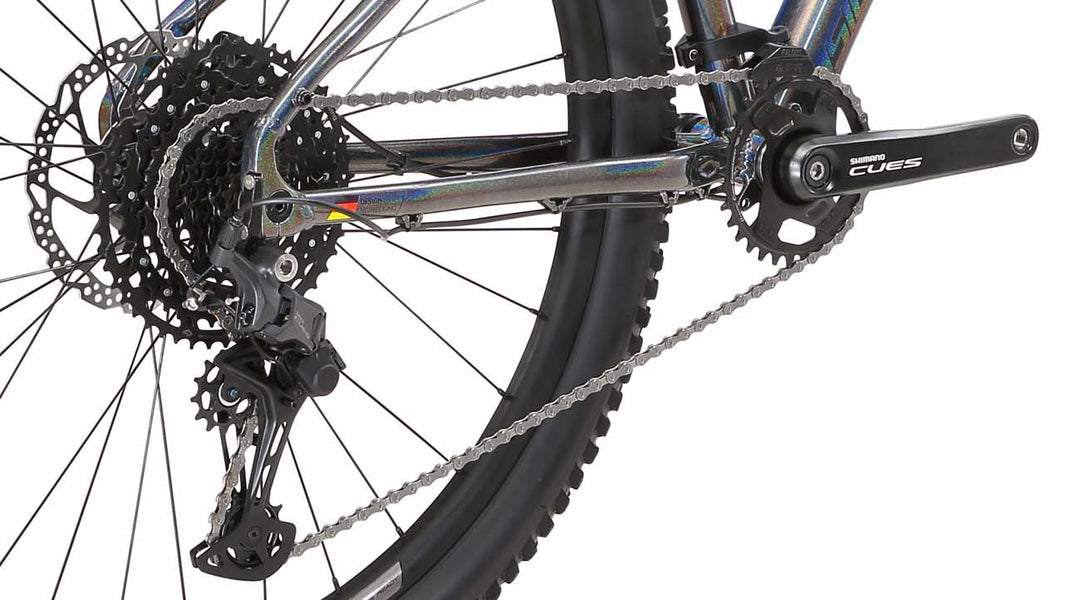

DERAILLEUR-REAR Shimano RD-U6000 CUES Rear Derailleur 10/11 Speed
SHIFTER-LEFT NIL
SHIFTER-RIGHT Shimano SL-U6000-10R CUES 10-Speed Right Shift Lever, Rapidfire Plus w/o Optical Gear
CASSETTE Shimano CS-LG300-10 CUES 10-Speed Cassette, 11-48T
SADDLE Nylon Base Saddle, Black
SEAT POST Alloy, 30.9mm, Black Seat Post
SEAT POST CLAMP Alloy 34,9mm QR Clamp
