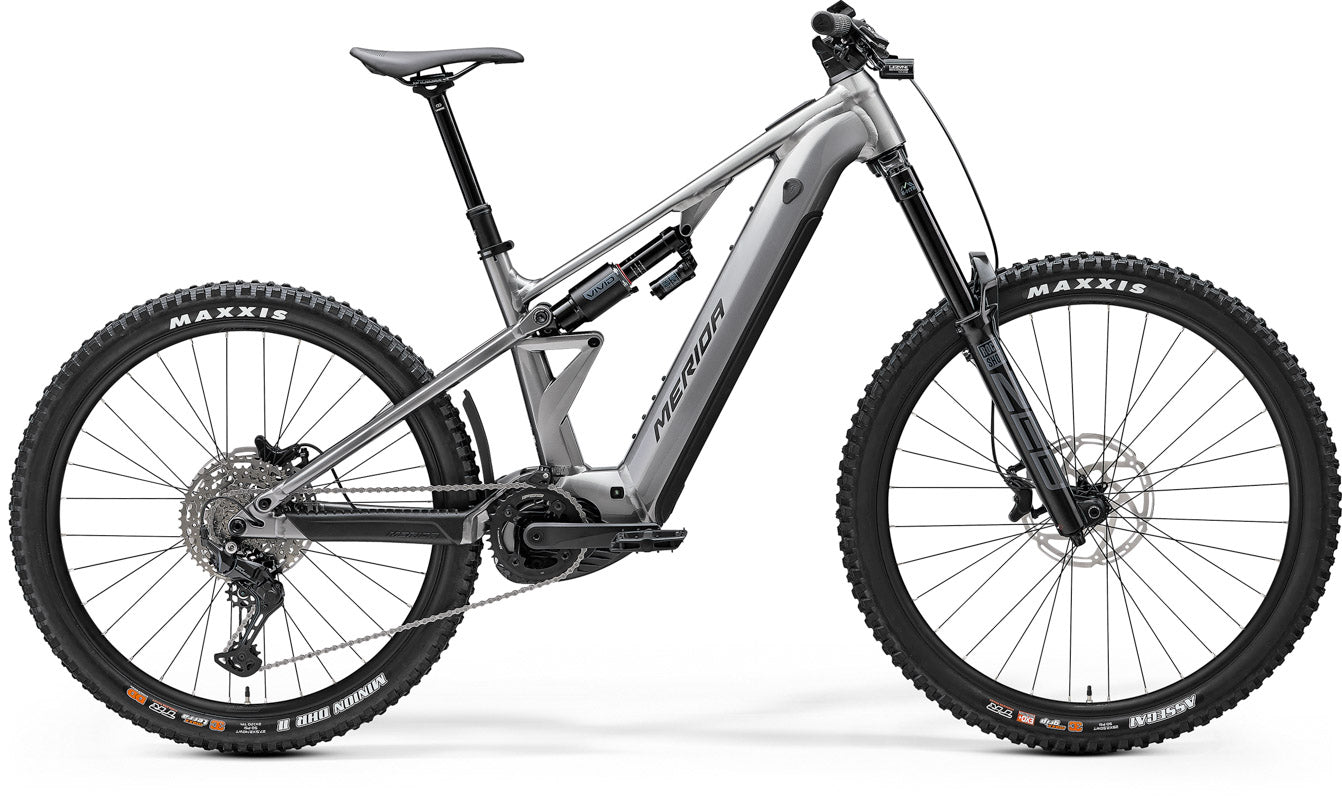

25 Merida eOne Eighty 500 - Gunmetal Grey -

$6,699.00
Regular price $8,499.00 Sale price $6,699.00
#MEEB2503258

Size S


All The Deets

Description

Equipped with the Bosch Performance Line CX motor and an 800Wh battery, the Merida eOne-Eighty 500 delivers consistent power and an impressive range. Whether you're tackling steep climbs or extended trail rides, the motor and battery combination ensures smooth, reliable performance.

Exceptional Suspension for Rough Trails

With 180mm front and rear suspension travel provided by RockShox Zeb components, this e-bike handles rough terrain with ease. The advanced suspension system absorbs shocks, giving you full control over rocky descents and technical sections.

Precise Shifting and Reliable Braking

The Shimano CUES U6000 10-speed drivetrain provides smooth and accurate gear changes, while Tektro hydraulic disc brakes with 203mm rotors ensure consistent stopping power. This combination gives you the confidence to push your limits on any trail.

FRAME     eONE-EIGHTY LITE; aluminium; 180mm travel; 27.5" x 2.6" max. wheelsize; 148x12mm axle standard
FRAME SIZE     XShort / Short / Mid / Long / XLong
FORK     Rock Shox Zeb Base eMTB Air; 180mm; Tapered; 44mm offset; 29x2.6" max
REAR SHOCK     Rock Shox Vivid Base
DRIVE UNIT     Bosch Performance Line CX
BATTERY     Bosch PowerTube 800 Wh
BATTERY CHARGER     Bosch 4A Charger (220-240V)
DISPLAY     Bosch Purion 200
MODE SWITCH
REAR DERAILLEUR     Shimano CUES U6000 GS
SHIFTERS     Shimano Cues U6000-10
DROPPER POST LEVER     Shimano SL -MT500-L
BRAKES     Tektro Gemini M535 4 piston
ROTORS     Tektro TR203-45 203mm front and rear
CHAINRING     FSA 1x Alloy Spider + Mega Tooth steel chain ring; 36T
CRANK     FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes
CHAIN     Shimano LG500
CASSETTE     Shimano Cues LG400; 11-48; 10 speed
PEDALS     VP VPE-533
HANDLEBAR     MERIDA EXPERT eTR; 780mm width; XS,S 20RHB; M,L,XL 30RHB
STEM     MERIDA EXPERT eTR II alum; 35mm dia; 0 angle; Supernova mount; 40 mm all sizes
HEADSET     Acros ICR MERIDA EXTERNAL neck w/ Blocklock
SEATPOST     MERIDA EXPERT TR II; 34.9mm; 0mm setback; XS: 125mm, S: 150mm, M/L: 200mm, XL: 230mm
SADDLE     MERIDA COMP SL; 28% recycled material; V-mount
HUBS     Shimano TC500 15x110mm 32 SPH CL front; Shimano TC500 12x148mm 32 SPH CL rear
RIMS     MERIDA EXPERT TR II; alum; 28mm; Tubeless ready (tape and valves not included); 29" front & 27.5" rear
REAR AXLE     MERIDA EXPERT TR including removeable lever, 6/4mm allen key
TYRE FRONT     Maxxis Assegai 29x2.5"; fold; TR EXO+ 3C MaxxGrip
TYRE REAR     Maxxis Minion DHR II, 27.5x2.4"; fold; 3C DD TR MaxxTerra
LIGHT FRONT     Lezyne Hecto StVZO E350+; Reverse MERIDA Custom Mount
LIGHT REAR     USB REAR Light CG-214RG
OTHER     Mr. Control CH-MDE-Mini chainguide
