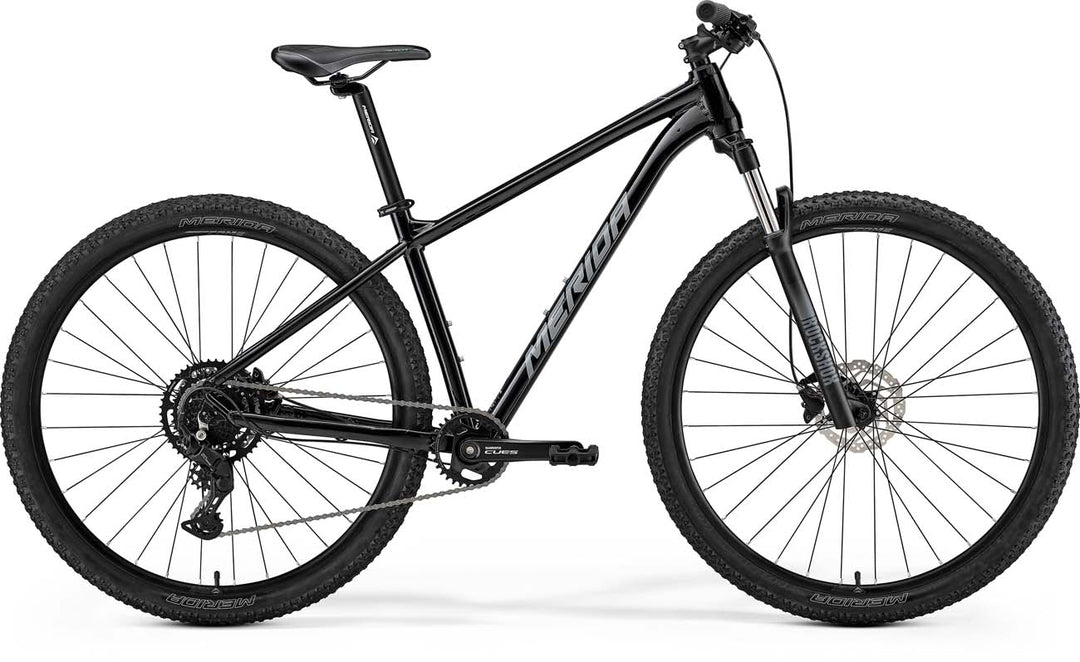

25 Merida Big Nine 80 - Black -

FRAME     BIG.NINE TFS IV; MAT aluminum; 29x2.25" max. WHS; 135x9 AST; BSA BBR
SIZE     S-M-L-XL-XXL
FORK     Rock Shox Judy TK; Coil; 100 STR Lockout; 46mm fork offset; 29x2.25" max. WHS
BRAKE LEVER
BRAKE - FRONT     Shimano BR-MT200; hydraulic brake
BRAKE - REAR     Shimano BR-MT200; hydraulic brake
ROTOR - FRONT     Shimano RT10; 160 mm
ROTOR - REAR     Shimano RT10; 160 mm
CHAIN     KMC xGlide
CHAINWHEEL     Shimano CUES U4000; 32 ATC; MAT Aluminium
CRANK/SIZE     170 mm-S, 175 mm-M up
BB SET     Shimano BB-UN101 73-123
DERAILLEUR - FRONT
DERAILLEUR - REAR     Shimano CUES U4000-9; GS
FREEWHEEL     Shimano CS-LG300-9; 11-46 ATC; 9 GER
PEDAL     VP VPE-891
GRIP     MERIDA EC
HANDLEBAR     MERIDA CC; MAT aluminium; 690 WHB; 15 RHB
H-B STEM     MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD
H-STEM/SIZE     70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
HEAD SET     MERIDA M2345
HUB - FRONT     Shimano HB-TX505; 100x9 WHF; 32 SPH; Centerlock
HUB - REAR     Shimano FH-TX505; 135x9 WHR; 32 SPH; Centerlock
RIM     MERIDA CC; 17 IWR; MAT aluminium
SADDLE     MERIDA Sport comfort
SEAT CLAMP     MERIDA COMP QR
SEAT POST     MERIDA CC; 30.9 DSP; 15 SSB; MAT aluminium
SHIFTER - FRONT
SHIFTER - REAR     Shimano CUES U4000-9R
INNER TUBE     29*2.2 A.V
TYRE - FRONT     MERIDA K1080; 29x2.2"; wire
TYRE - REAR     MERIDA K1080; 29x2.2"; wire
