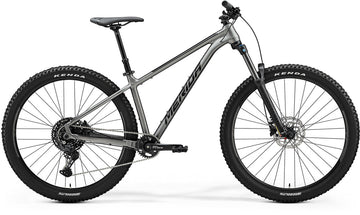

24 Merida Big Trail 400 - Silk Gunmetal Grey -

01. FRAME     BIG.TRAIL TFS; MAT aluminium; 29x2.5" max. WHS; 148x12 AST; BSA BBR
02. SIZE     S-M-L-XL
03. FORK     Suntour XCR34 2CR DS; Air; 140 STR; Tapered; lockout; 51mm fork offset
04. GEARS     1 x 10
05. CHAINWHEEL     Shimano CUES U4000; 32 ATC
06. CRANK LENGTH     170 mm-S, 175 mm-M up
07. BOTTOM BRACKET     Shimano BB-UN101; 73mm
08. CASSETTE     Shimano LG300; 11-48 ATC; 10 GER
09. CHAIN     Shimano LG500
10. DERAILLEUR - REAR     Shimano CUES U6000; GS
11. SHIFTER     Shimano CUES U6000
13. DROPPER LEVER     Shimano SL-MT500-L
14. BRAKES     Shimano MT-200; 2 piston
15. ROTOR - FRONT     Shimano RT10; 180mm
16. ROTOR - REAR     Shimano RT10; 180mm
17. HANDLEBARS     MERIDA EXPERT CC; MAT aluminium; 740 WHB; 10 RHB
18. STEM     MERIDA COMP CC; MAT aluminium; 31.8 DSH; 7 ASD
19. STEM LENGTH     50 mm all sizes
20. HEAD SET     MERIDA M4455
21. SEAT POST     MERIDA COMP TR; 30.9 DSP; 0 SSB; S: 125 SPT - M/L: 150 SPT - XL/XXL 175 SPT
22. SADDLE     MERIDA COMP SL; V-mount
23. HUB - FRONT     Shimano TC500-B; 110x15 WHF; 32 SPH; Centerlock
24. HUB - REAR     Shimano TC500-HM-B; 148x12 WHR; 32 SPH; Centerlock
25. AXLE - REAR     MERIDA COMP TR; including removeable lever, 6mm allen key
26. SPOKES     Black stainless
27. RIMS     MERIDA COMP TR; 29 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
28. TYRES     Kenda Regolith; 29x2.4"; wire
29. PEDALS     VP VPE-891
