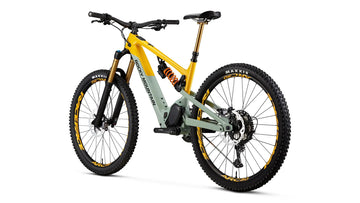

23 Rocky Mountain Altitude Power Play C90 - Blue/Yellow -

Frame     SMOOTHWALL™ Carbon | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 160mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork     Fox 38 Float EVOL GRIP2 Factory Series 170mm | 44mm Offset
Shock     Fox DHX2 Factory | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230x62.5mm | Size-Specific tune in FAQ
Grips     ODI Elite Pro Lock On
Stem     Rocky Mountain 35 CNC | 0° Rise | All Sizes = 40m
Headset     FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5"" Crown Race
Stem     Rocky Mountain 35 CNC | 0° Rise | All Sizes = 40m
Handlebar     Race Face Turbine R | 780mm Width | 35mm Rise | 8° Backsweep | 4° Upsweep | 35mm Clamp
Grips     ODI Elite Pro Lock On
Brakes     Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT86 203mm | R:Shimano RT86 203mm
Shifters     Shimano XT
Rear Derailleur     Shimano XT
Cranks & Chainring     Race Face Turbine Cinch 34T | 30mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm
Bottom Bracket     Race Face BB89 30mm
Cassette     Shimano XT 10-51T
Chain     Shimano M8100
Front Hub     Rocky Mountain Sealed Boost 15mm
Rear Hub     DT Swiss Hybrid 350 Boost 148mm | 24T Star-Ratchet
Spokes     F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0
Rims     Race Face ARC HD 30 | 32H | Tubeless Ready - Tape / Valves Incl
Tires     F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready
Seatpost     Fox Transfer Factory Series 30.9mm | SM = 125mm | MD = 150mm | LG = 175mm | XL = 200mm
Saddle     WTB Volt Race 142
Weight NW     This information isn't available yet. We will update the weight of this model as soon as possible.
Electrical Components
Drive System     Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada
Battery     720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)
Remote     Rocky Mountain Micro Remote
Display     Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration
Charger     Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)
