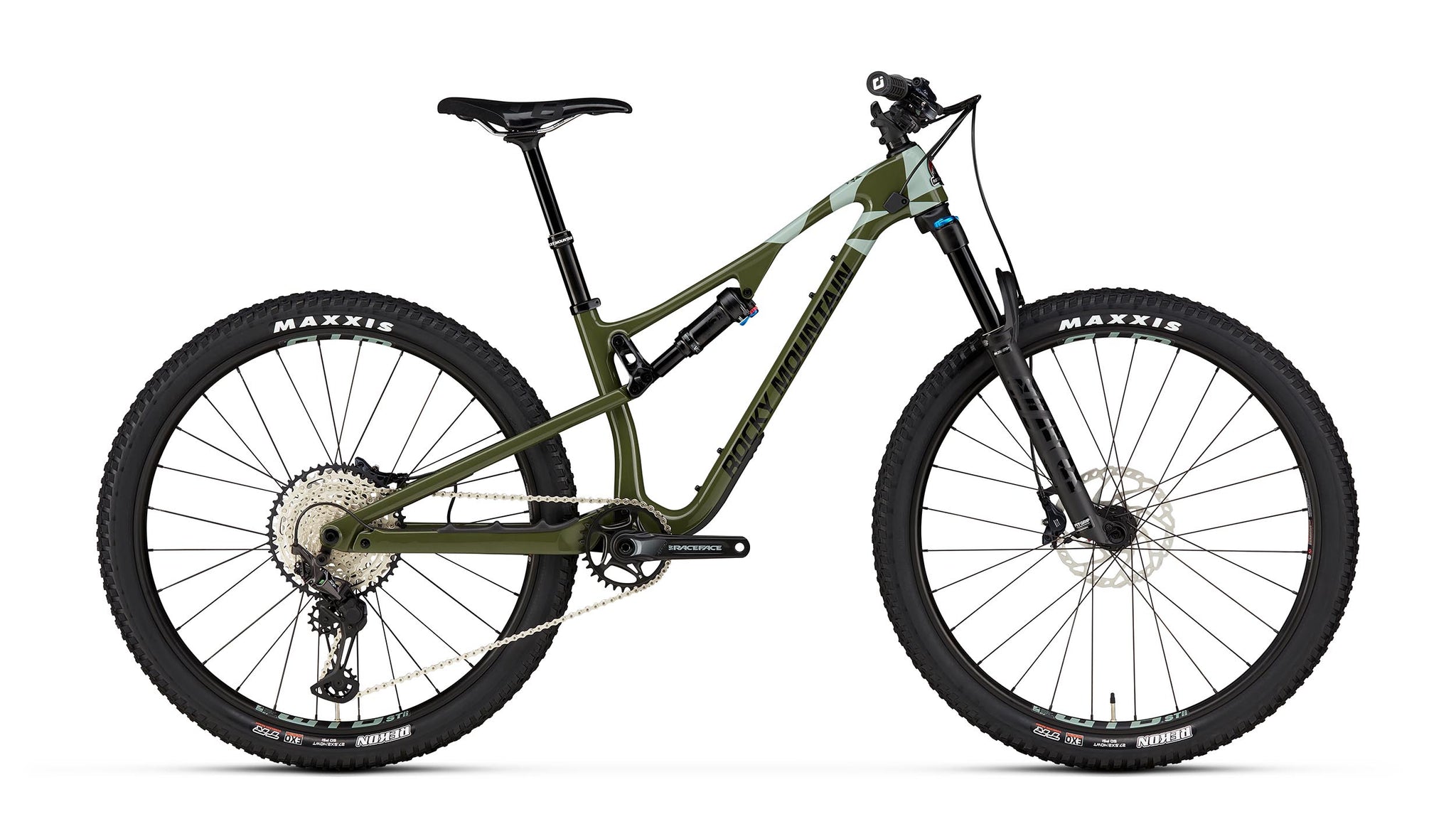

Purpose-built to hit the precise sweet spot between lightweight cross country climbing prowess and technical precision, the Element is the best of both worlds and more. New-levels of climbing efficiency guarantees that oh-so-sweet feeling of riding someone off your wheel. Added levels of stability on fast descents and a pseudo-aggressive seat tube angle provides surprising levels of confidence on tight single track and hairy descents. Light. Stiff. Fast. Smooth. Precise. You’re now in your Element—always.
Frame SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | RIDE-4™ Adjustable Geometry + Suspension Rate | 120mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork Fox 34 Float Performance 130mm | 44mm Offset
Rear Shock Fox Float DPS Performance | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 190x45mm | Size-Specific tune in FAQ
Handlebars Rocky Mountain AM | XS = 760mm | SM - XL = 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp
Grips ODI Elite Pro Lock On
Stem Rocky Mountain 31.8 XC | 5° Rise | All Sizes = 50m
Seatpost Rocky Mountain Toonie Drop Alloy 30.9mm | XS - SM = 125mm | MD = 150mm | LG - XL = 170mm
Saddle WTB Volt 142
Shifters Shimano XT
Rear Derailleur Shimano XT
Brakes Shimano SLX 2 Piston | Metal Pads | F:Shimano RT66 180mm | R:Shimano RT66 180mm
Cassette Shimano SLX 10-51T
Cranks & Chainring Race Face Aeffect Cinch | 32T Steel | 24mm Spindle | Crankarm Length: XS = 165mm Crankarm | SM - XL = 170mm
Chain Shimano M7100
Bottom Bracket Shimano SM-BBMT500
Headset FSA Orbit NO.57E | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5"" Crown Race
Front Hub Rocky Mountain Sealed Boost 15mm
Rear Hub DT Swiss 370 Boost 148mm | 18T Star-Ratchet
Spokes DT Swiss Competition 2.0/1.8/2.0
Tires F: Maxxis Rekon 2.4 WT EXO Tubeless Ready // R: Maxxis Rekon 2.4 WT EXO Tubeless Ready
Rims WTB ST Light i27 TCS 2.0 Tubeless | 28H | Tubeless Ready - Tape / Valves Incl
Weight NW This information isn't available yet. We will update the weight of this model as soon as possible.
