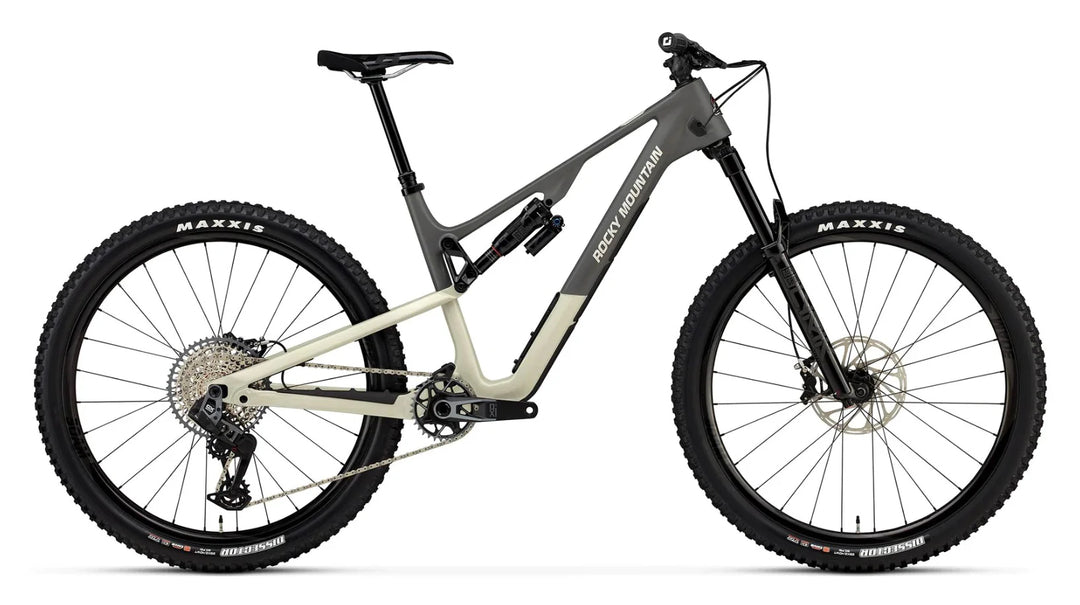

2024 Rocky Mountain Instinct C70 AXS 27.5" - Grey/Beige -

The Instinct Carbon is at home on technical trails, but still allows you to push the distance and crush the climbs. Our most versatile platform just got more adventure-ready with updated the frame features, geometry, and suspension kinematics to make sure you feel confident on the up’s, down’s, and everything in between. Meet the Instinct Carbon.

Frame     SMOOTHWALL™ Carbon | Full Sealed Cartridge Bearings | Press Fit BB | Internal Cable Routing | 2-Bolt ISCG05 Tabs | RIDE-4™ Adjustable Geometry | 2 Position Axle | 140mm Travel. SMOOTHWALL™ Carbon Rear Triangle
Fork     RockShox Lyrik Select+ 150mm | Charger RC3 Damper | 27.5 = 37mm Offset | 29 = 42mm Offset
Rear Shock     RockShox Super Deluxe Ultimate | Sealed Bearing Eyelet | 20x8mm F Hardware | XS - SM = 190x45mm | MD - LG - XL = 210x52.5mm | Size-Specific tune in FAQ
Handlebars     Rocky Mountain AM Carbon 780mm
Grips     ODI Elite Pro Lock On
Stem     Rocky Mountain 35 AM | 5° Rise | All Sizes = 40mm
Seatpost     OneUp Dropper 30.9mm | XS = 120mm | SM = 150mm | MD = 180mm | LG - XL = 210mm
Saddle     WTB Volt Race 142
Shifters     Sram AXS Wireless Pod Controller
Rear Derailleur     Sram X0 Transmission Wireless
Brakes     Sram G2 RSC 4 Piston | Resin Pads
Cassette     Sram GX Transmission 10-52T
Cranks & Chainring     Sram X0 Transmission Alloy | 32T | DUB Spindle | Crankarm Length: XS -SM = 165mm | MD - XL = 170mm
Chain     Sram GX Transmission
Bottom Bracket     Sram BB92 DUB Wide
Headset     FSA Orbit NO.85 Reach Adjust| 0mm Cups Installed | +/- 5mm Cups Included | Durable Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5"" Crown Race
Front Hub     Rocky Mountain SL Sealed Boost 15mm
Rear Hub     DT Swiss 370 Boost 148mm | 18T Star-Ratchet
Spokes     DT Swiss Competition 2.0/1.8/2.0
Tires     F: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready // R: Maxxis Dissector 2.4 WT 3C MaxxTerra EXO Tubeless Ready
Rims     Rocky Mountain 30AM Carbon / Tubeless Ready - Tape / Valves Incl
Weight NW     13.67
