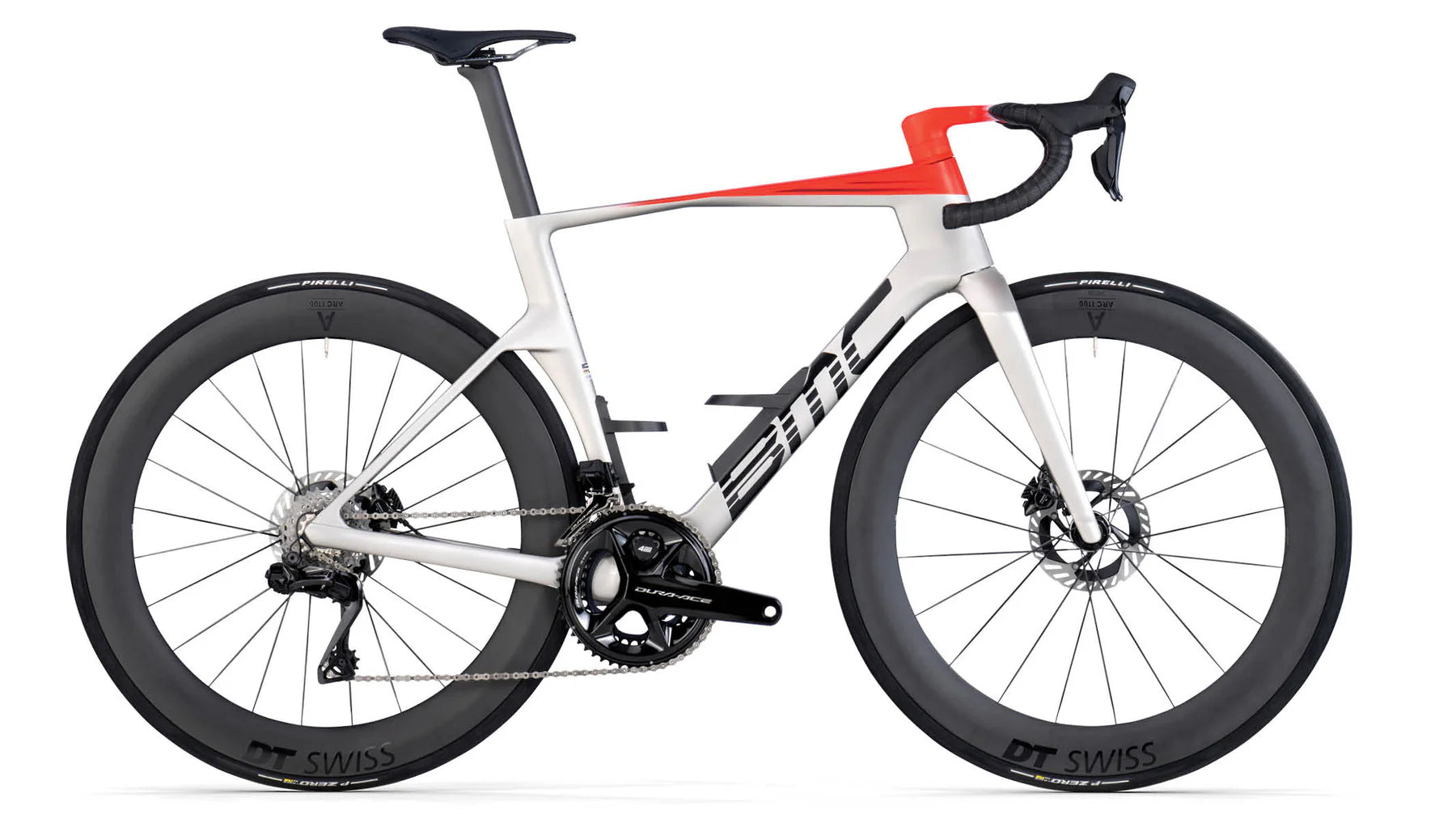

Elevate Every Race. Born from the collaboration with Red Bull Advanced Technologies, the Teammachine R 01 brings professional race performance to every rider. Designed with high stiffness targets, low aero drag, and lightweight construction technics, it’s the fastest road bike ever designed by BMC. Specified with our aero and low stack ICS Aero cockpit, with SHIMANO Dura Ace - the highest quality groupset available -, fit with a powermeter and made even faster with the newest DT Swiss ARC 1100 DiCut 65mm wheels. Whether it’s a summit finish or a solo breakaway, this bike is built to deliver.
Frameset
Frame:
Teammachine R 01 | 01 Premium Carbon with Aerocore Design | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 142mm Thru-Axle
Fork:
Teammachine R 01 | 01 Premium Carbon | ICS Technology Stealth Cable Routing | Stealth Dropout Design | Flat Mount Disc | 12 x 100mm Thru-Axle
Cockpit
Handlebar:
ICS Carbon Aero | One-Piece Full Carbon Cockpit | 135mm drop, 77mm reach, 12.5° flare
Seat
Seatpost:
Teammachine R 01 | 01 Premium Carbon Seatpost | 10mm Offset
Saddle:
Selle Italia SLR Boost Superflow | CarboKeramic Rail | 145mm
Drivetrain
Crankset:
SHIMANO Dura Ace (FC-R9200)
Chainrings:
52-36T
Power Meter:
4iiii Precision Gen3+ Power Meter (Dual Side)
Cassette:
SHIMANO Dura Ace (CS-R9200)
Cassette Size:
11-30T
Chain:
SHIMANO CN-M9100
Front Derailleur:
SHIMANO Dura Ace Di2 (FD-R9250)
Rear Derailleur:
SHIMANO Dura Ace Di2 (RD-R9250)
Shifters:
SHIMANO Dura Ace Di2 (ST-R9270)
Gears:
2 x 12
Bottom Bracket:
SHIMANO Dura Ace Press-Fit Bottom Bracket (SM-BB92-41B)
Brakes
Brake Levers / Calipers:
SHIMANO Dura Ace (BR-R9270)
Rotors:
SHIMANO Dura Ace (RT-CL900)
Rotor Size (F/R):
160 / 160mm
Wheels
Rims:
DT Swiss ARC 1100 DICUT | 65mm
Hubs (F/R):
DT Swiss 180 DICUT | Ratchet EXP 36
Tires:
Pirelli P Zero Race TLR RS | Tubeless | 26mm
Tubeless Information:
Tubeless Rim | Tubeless Tires
Accessories
In the Box:
Aerocore Bottle Cages | Computer mount for Garmin and Wahoo
Additional Information
Tire Clearance:
30mm measured tire
Weight without Pedals:
7.05kg | Size 54 with all accessories
ASTM Classification:
Level 1
System Weight Limit:
110kg
