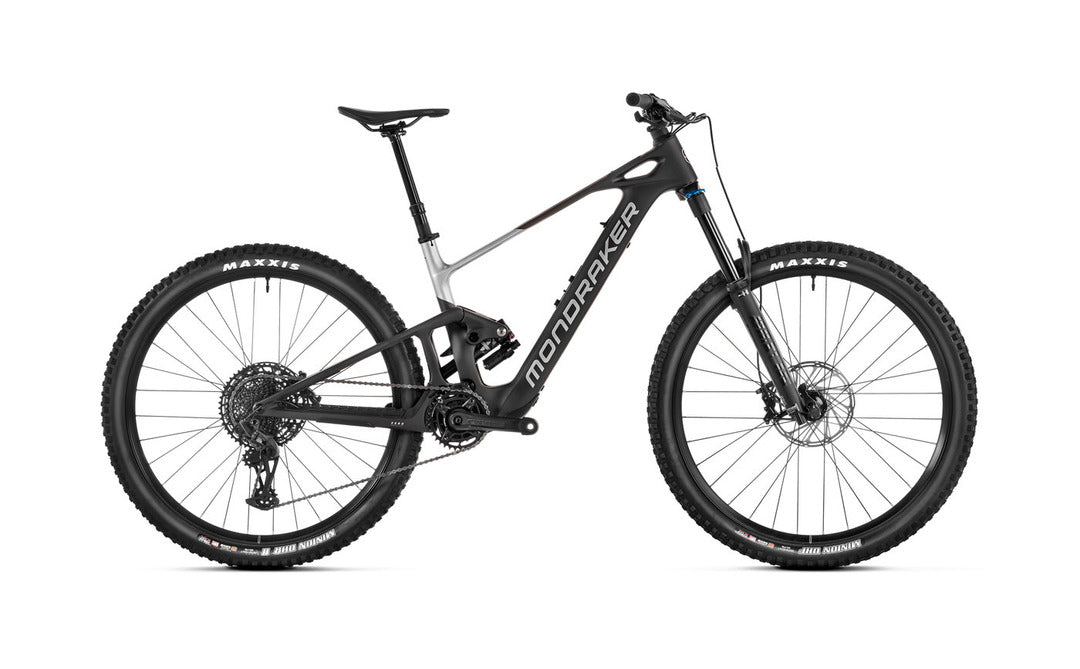

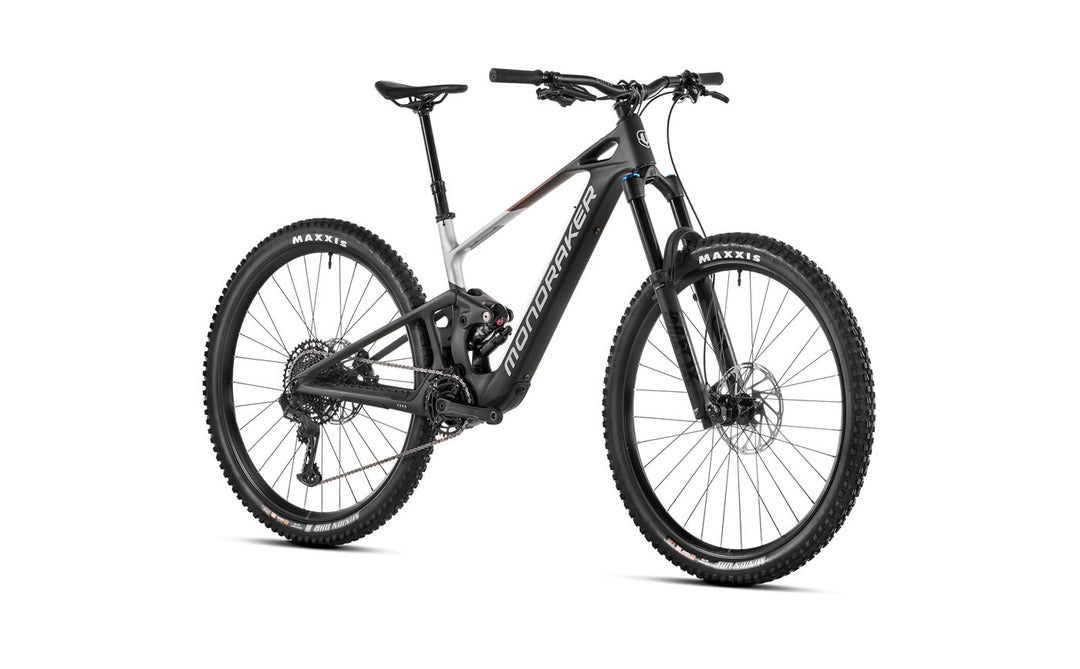

24 Mondraker Neat R - Carbon/Silver -

A new beginning. A new era of ebikes. Born and bred with all of our character, identity and feeling. A Mondraker by definition, but more manoeuverable, nimble and even faster than ever before. A new cycle with a new leader.

01. FRAME     Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal & removable battery.
02. REAR SHOCK     Fox Float X Performance EVOL, 185x55mm. Settings: 2-position compression (Open/Firm), rebound, air preload. Trunnion top mount, 30x8mm bottom bushings
03. SHOCK SETTINGS     Medium compression, medium rebound, air volume spacer 0.4
04. FORK     Fox 36 29 Float GRIP EVOL Performance, 160mm, tapered steerer tube, Boost 15x110mm axle, 44mm offset. Settings: 3 positions with micro adjust compression, low-speed rebound, air preload
05. HEADSET     Acros custom for 1-1/2” head tube, angular contact bearings 40x52x7, Internal cable routing
06. STEM     Onoff Krypton FG 30mm, CNC, 31.8mm diameter
07. HANDLEBAR     Onoff Krypton 1.0, rise: 25mm, width: 800mm, 9° backsweep, 5° upsweep, 31.8mm diameter
08. GRIPS     Onoff Desert, single lock-on, 135mm
09. SEATPOST     Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm
10. SADDLE     Fizik Terra Aidon Slim X5
11. FRONT BRAKE     Sram G2 R, 4-piston caliper, Centerline 200mm 6 bolt one-piece rotor, organic pads
12. REAR BRAKE     Sram G2 R, 4-piston caliper, Centerline 200mm 6 bolt one-piece rotor, organic pads
13. BRAKE LEVER     Sram G2 R, tool-free reach adjust, lever pivot bushings
14. RIMS     Mavic E-CrossRide 29, 30mm internal width, welded, PFP, tubeless ready, 28 spokes
15. SPOKES     Mavic J-bend double butted, contactless lacing
16. FRONT HUB     Mavic, Boost 15x110mm, 6-bolt
17. REAR HUB     Mavic, Boost 12x148mm, ID360 Ratched system, 6-bolt, HG freehub
18. FRONT TYRE     Maxxis Minion DHF 29x2.5 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
19. REAR TYRE     Maxxis Minion DHR II 29x2.4 WT, tubeless ready, 3C MAXX TERRA compound, EXO+ protection, 120TPI, folding bead
20. CRANKSET     E.13 E*Spec Plus,, S/M: 165mm L/XL: 170mm
21. RINGS     Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
22. CHAIN     Sram NX Eagle, 12s, Powerlock
23. REAR DERAILLEUR     Sram GX Eagle 1x12
24. SHIFT LEVER     Sram Trigger NX Eagle, 12s, X-Actuation 1:1, single click
25. CASSETTE     Sram PG-1230, 11-50T, 12s
26. MOTOR     TQ HPR-50
27. BATTERY     TQ HPR-50 360Wh integrated and removable
28. DISPLAY     TQ HPR display V01
29. DERAILLEUR HANGER     Sram UDH
30. OTHERS     Mondraker custom desing Fidlock smoked transparent 600ml bottle + Fidlock base down version
31. MAX RIDER WEIGHT     150 kg
32. SIZES     S: 380mm / M: 420mm / L: 450mm / XL: 490mm
