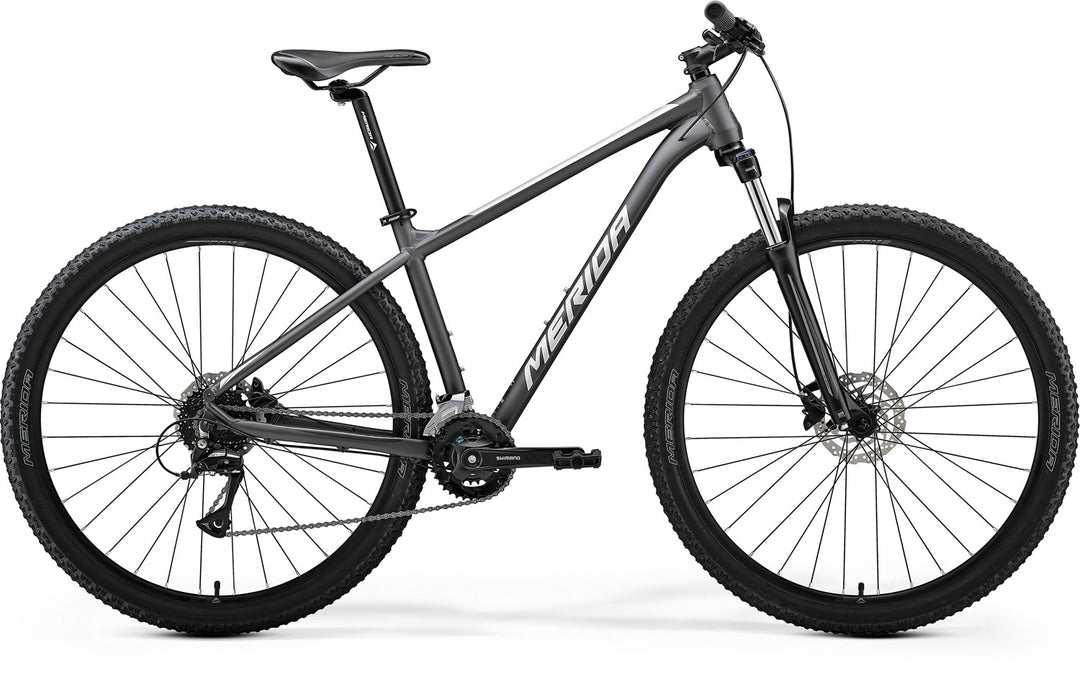

24 Merida Big Nine 20 - Matt Dark Silver

1. FRAME     BIG.NINE TFS III; MAT aluminum; 29 WHS; 135x9 AST; BSA BBR
02. SIZES     M-L-XL-XXL
03. FORK     Suntour XCT30 HLO; Coil; 100 STR; lockout; max. 29x2,25" WHS
04. GEARS     -
05. CHAINWHEEL     Shimano FC-M315-2; 36-22
06. CRANK LENGTH     170 mm-S, 175 mm-M/XXL
07. BOTTOM BRACKET     Shimano BB-UN101 73-123
08. CASSETTE     Sunrace CSM558AU; 11-32 teeth; 8 speed; Nickel
09. CHAIN     KMC Z8.3
10. DERAILLEUR - FRONT     Shimano FD-M315-TS
11. DERAILLEUR - REAR     Shimano RD-M3020-8; SGS
12. SHIFTER - FRONT     Microshift TS39 [or Shimano ST-EF505]
13. SHIFTER - REAR     Microshift TS39 [or Shimano ST-EF505]
14. DROPPER LEVER     -
15. BRAKES     Tektro M275 [or Shimano BR-MT200]
16. ROTOR - FRONT     Shimano RT10; 160 mm
17. ROTOR - REAR     Shimano RT10; 160 mm
18. HANDLEBARS     MERIDA CC; MAT aluminium; 690 WHB; 15 RHB
19. STEM     MERIDA CC; MAT aluminium; 31.8 DSH; 6 ASD
20. STEM LENGTH     70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
21. HEAD SET     MERIDA M2345
22. SEAT POST     MERIDA CC; MAT aluminium; 30.9 DSP; 15 SSB
23. SADDLE     MERIDA Sport comfort
24. HUB - FRONT     Shimano TX505; 100x9 WHF; 32 SPH; Centerlock
25. HUB - REAR     Shimano TX505; 135x9 WHR; 32 SPH; Centerlock
26. AXLE - REAR     Quick Release
27. SPOKES     Black steel
28. RIMS     MERIDA CC; 17 IWR; MAT aluminium
29. TYRES     MERIDA K1080; 29x2.2"; wire
30. PEDALS     VP VPE-891
