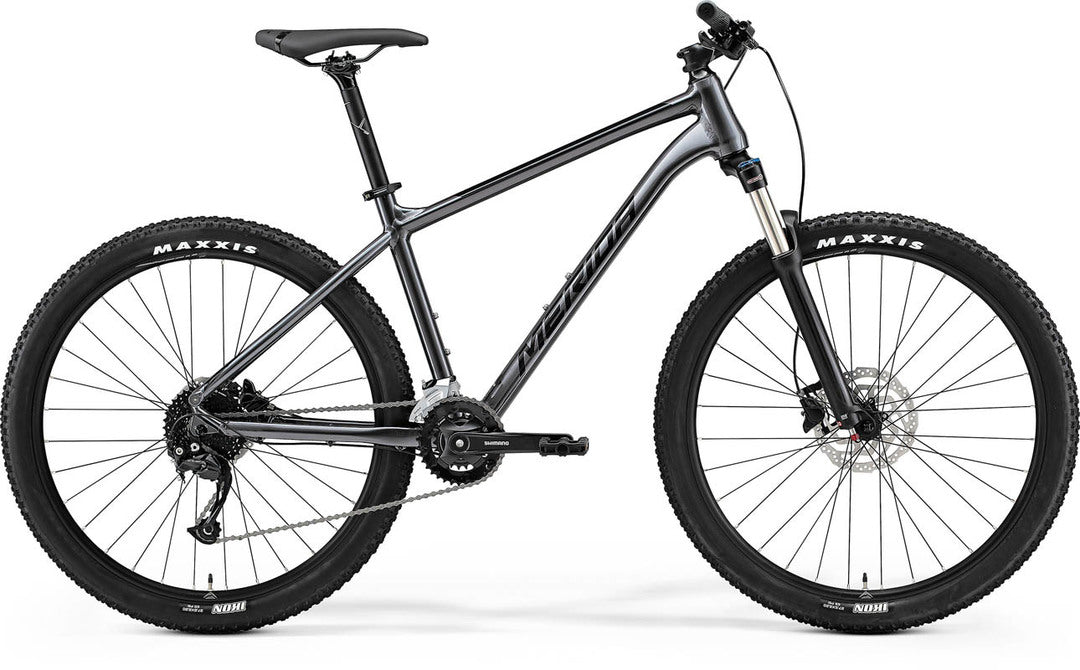

22 Merida BIG SEVEN 100-2X - DARK SILVER (BLACK) -

01. FRAME     BIG.SEVEN TFS III; MAT aluminium; 27.5 WHS; 135x9 AST; BSA BBR
02. SIZES     XS-S
03. FORK     Suntour XCR LOR; Air; 100 STR; Lockout; 42mm fork offset
04. GEARS     2 x 9
05. CHAINWHEEL     Shimano MT101-2; 36-22 ATC
06. CRANK LENGTH     170 mm-S, 175 mm-M up
07. BOTTOM BRACKET     FSA TH-7420ST Cartridge Bearing
08. CASSETTE     Shimano HG200; 11-36 ATC; 9 GER
09. CHAIN     KMC M99
10. CHAINGUARD     n/a
11. DERAILLEUR - FRONT     Shimano M2020-TS
12. DERAILLEUR - REAR     Shimano Alivio Shadow
13. SHIFTER - FRONT     Shimano Altus
14. SHIFTER - REAR     Shimano Altus
15. DROPPER LEVER     n/a
16. BRAKES     Tektro M275; 2 piston
17. ROTOR - FRONT     Shimano RT10; 180mm
18. ROTOR - REAR     Shimano RT10; 160mm
19. HANDLEBARS     MERIDA EXPERT CC; MAT aluminium; 720 WHB; 10 RHB
20. STEM     MERIDA COMP CC; MAT aluminium; 31.8 DSH; 6 ASD
21. STEM LENGTH     50 mm all sizes
22. HEAD SET     MERIDA M2346 Neck
23. SEAT POST     MERIDA COMP CC; MAT aluminium; 30.9 DSP; 0 SSB
24. SADDLE     MERIDA COMP SL; V-mount
25. HUB - FRONT     Shimano TX505; 100x9 WHF; 32 SPH; Centerlock
26. HUB - REAR     Shimano TX505; 135x9 WHR; 32 SPH; Centerlock
27. AXLE - REAR     -
28. SPOKES     Black stainless
29. RIMS     MERIDA COMP CC; 20 IWR; MAT aluminium
30. TYRES     Maxxis Ikon; 27.5x2.2"; wire
31. PEDALS     VP VPE-891
